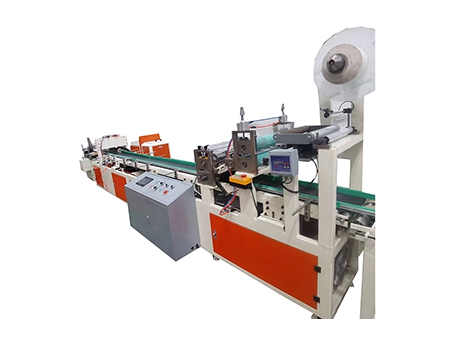

Automatic Glue Trap Board Making Machine (Silicone Paper Laminate) Model: HG898
Request a Quote
This automatic glue trap board making machine is used to glue and laminate release paper for the production of various products such as cockroach trap boards, insect trap boards, and white cardboard mouse glue traps. It is capable of functioning at a high speed, with maximum efficiency, and a high level of precise control. The trap board making machine is powered by a servo motor and PLC, as well as being easy to operate.

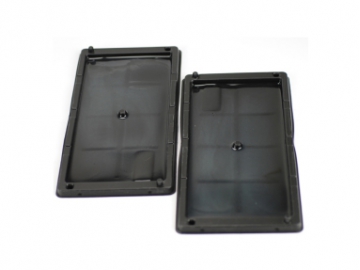

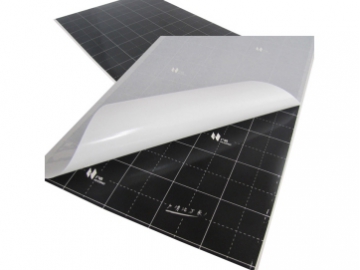

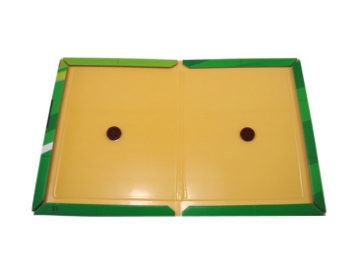

Finished glue trap boards
Technical parameters
- Total power (glue gun included): 16kW
- Maximum unwinding diameter of release paper: Ø700 mm (Ø400 mm-Ø500mm suggested)
- Inner core diameter of release paper: Ø76mm
- Effective maximum gluing width: 230 mm (customized width available)
- Gluing uniformity: ±3%
- Range of gluing weight: 20~500 g/㎡
- Laminated length of release paper: < 400 mm or < 600 mm
- Production speed: 0~ 80 sheets/min
- Air pressure source: 6~8 kgf/cm²
- Power supply: AC 380V
