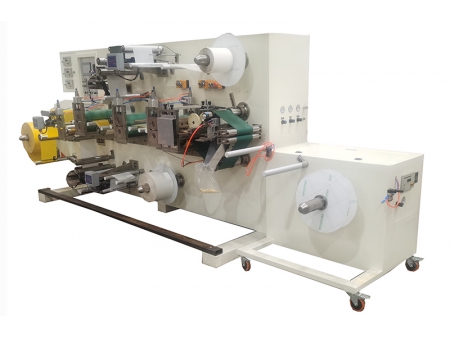

Double-sided Insect/Fly Glue Trap Machine Model: HG818
Request a Quote
Our insect/fly glue trap machine is an acclaimed professional production equipment that can streamline processes such as gluing, composite lamination, cutting, punching, and counting. The integration of this machine into the production process can drastically improve production efficiency and reduce labor costs.
This trap machine is designed for maximum convenience, promising that even those with limited production experience can get it running quickly. It is fast, efficient, and stable, with the capability to produce high-quality insect glue trap boards to satisfy a variety of customers.

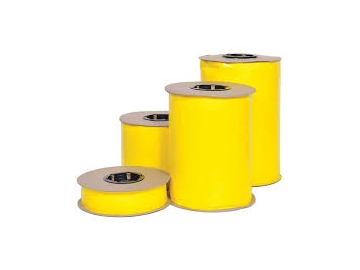

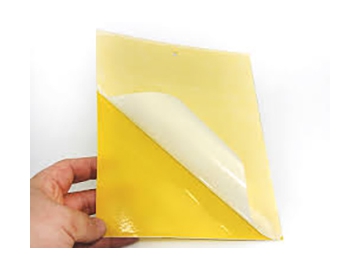

Finished insect glue trap
Technical parameters
- Total power: 22kW
- Maximum unwinding diameter: 800mm
- Inner core diameter: 76mm
- Effective maximum gluing width: 290mm
- Gluing uniformity: ±5%
- Production speed: 80-100 m/min
- Rewinding precision: ±2mm
- Range of gluing weight: 20-100g/m²
- Air pressure source: 5-7kgf/cm²
- Power supply for equipment: AC 380V
