Multi-Function Single Row Glue Trap Board Machine Model: HG818
The multi-function single row glue trap board machine is designed for the efficient production of mouse trap board, fly trap board, cockroach trap board and other insect trap board. Updated with PLC control, this glue trap board machine has been equipped with automatic feeding, gluing, clip placement, and folding functions, allowing it to reach a capacity of up to 3000-5000 pieces per hour.

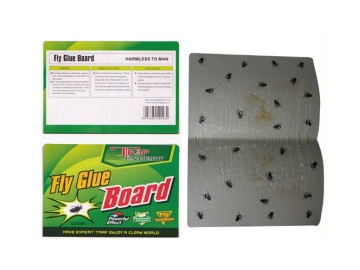

- fly trap board

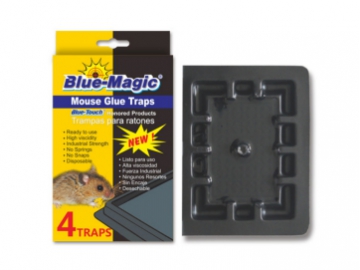

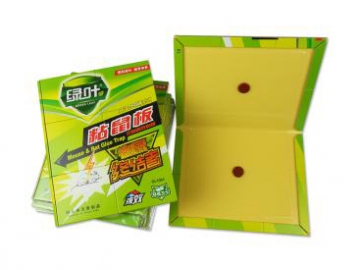

- mouse trap board
- plastic mouse trap board

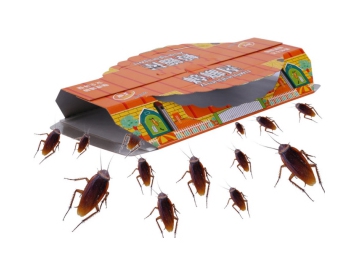

- cockroach trap board
This equipment is made up of several components, including a main gluing machine, a 40 kg capacity hot melt glue machine, an automatic paper feeding device, an automatic clip placement device, an automatic powder sprinkling device, an automatic folding device, a three-scraper gun assembly, and a 1.8-meter glue conveying throat.

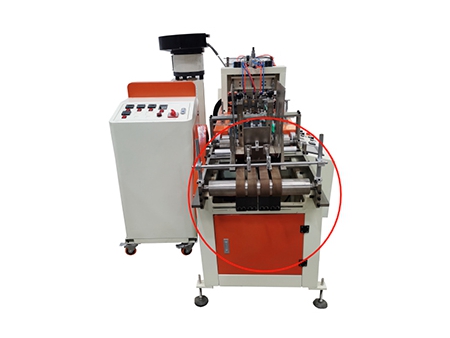

Automatic material feeder
- Dimensions: 92cmx83cmx111cm
- Features: This paper feeder motor features a 200W vertical motor for reliable performance, a frequency converter speed regulator for adjustable speed, and is suitable for the production of various thicknesses of fly trap board, mouse trap board, cockroach trap board and more.

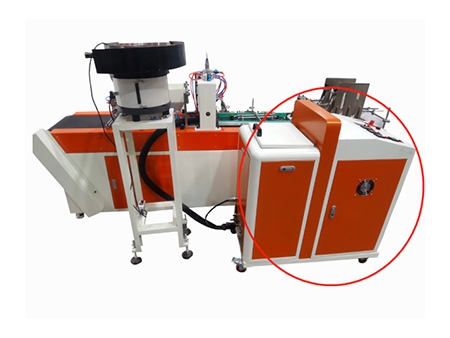

Hot melt glue system
- Dimensions: 96cmx48cmx109cm
- Features: This hot melt glue system is equipped with a powerful 750 W three-phase motor, along with a frequency converter for speed regulation. A 45-cc gear pump adds to the efficiency, allowing for up to 40g of glue to be dispensed at one time. Additionally, a 9kW heating power allows for quick heating, usually taking only 40 minutes.

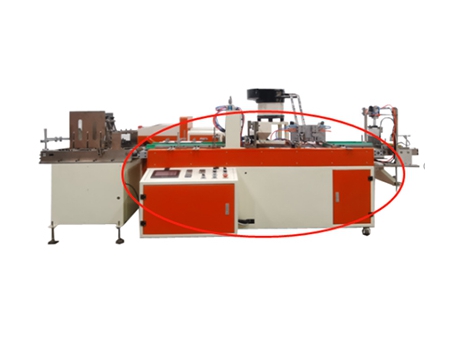

Gluing machine
- Dimensions: 228cmx96cmx110cm
- Trap gluing width: 210mm
- Features: This gluing machine offers a powerful 750W three-phase motor with variable frequency speed regulation, allowing for fast and steady conveyor belt operation. Moreover, the gluing machine is equipped with a PLC controller or a time relay, allowing you to adjust any relevant time parameters.
