Bitumen Transportation Truck
Brief Introduction
LMT5312GLQW bitumen transportation truck is a high-tech product newly developed by our company based on the needs for transporting large volume of asphalt and the lessons learned from similar products. This tank is equipped with bitumen transportation truck and high-power burner to realize the long distance transport of all types of asphalt with large capacity. The asphalt transport tank adopts unique heat preservation maintenance structure and is made of high effective thermal insulation materials.
All the working devices including the asphalt pump are driven by the hydraulic system with safe and reliable performance. LMT5312GLQW bitumen transportation truck features easy operation, fast operation speed and high levels of S&T content and is an ideal tool for asphalt transportation.
Parameter| Model | LMT5312GLQW |
| Overall Dimension (L/W/H mm) | 11700×2496×3563 |
| Tank Capacity (m3) | 15.5 |
| Chassis Model | ZZ1317N4667C |
| Tire Specification | 12.00-20 |
| Approach /Departure Angle | 16°/15° |
| Engine Rating/Rotation Speed (kw/r/min) | 247/2200 |
| Fuel Type | Diesel |
| Seating Capacity (including the driver) | 2 |
| Top Speed (km/h) | 90 |
| Complete Vehicle Weight (kg) | 16550 |
| Rated Load (kg) | 14320 |
| Max. Flow of Asphalt Pump (L/min) | 450 |
| Max. Pressure of Hydraulic System (MPa) | 20 |
Construction Case

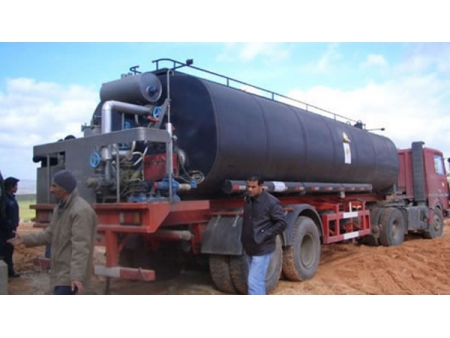

Metong's asphalt transport tank trailer in Angola

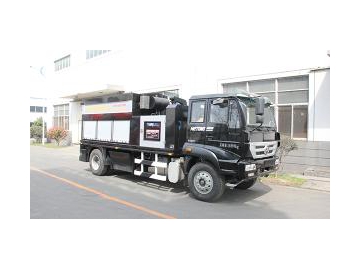

- LMT5160TYHB road maintenance truck with heat preservation function is mainly composed of heat preservation bin, asphalt tank and heat transfer heating system. It adopts the car chassis in the second degree.
-
-
- This hot mix asphalt transport truck mainly provides the maintenance service for the highway, municipal roads and arterial highway of first and second degree against the early problems like pit slot and cracks.
-
-

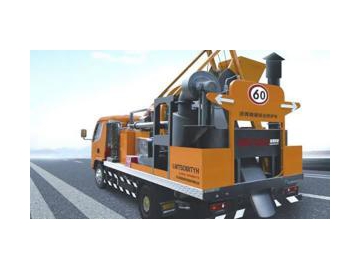

- There is a large space in front of the LMT5081TYH road maintenance truck to load some devices including the plate, cutting machine and electric hammer.
-
-
- It not only reduces the cost of materials, labor and maintenance for maintenance and construction enterprises, but also increases the construction efficiency.
