MTR10A Modified Emulsion Bitumen Equipment
Brief Introduction
MTR10A Modified Emulsified Asphalt Equipment newly developed by Metong is suitable for producing all kinds of Emulsified Asphalt.
Advantages
1.We mainly offer MTR10A Modified Emulsified Asphalt Equipment for midrange servers. This equipment quality is guaranteed. It features energy conservation, easy installation and easy use.
2.It adopts high-power colloid mill, which makes it possible to produce modified emulsified asphalt and common emulsified asphalt at the same time.
3.This equipment solves the ratio problem between asphalt and liquid soap.
4.The structure of Emulsified thinning tank could effectively reduce the time for collocating emulgator.
5.Collocating tank, storage tank and matrix asphalt tank all adopt the aluminum silicate material as insulation layer and have favorable heat preservation performance. They could be heated by the built-in heat-transfer oil tube to achieve a steady temperature rising.
6.The valve adopts the pneumatic control system and is easy to operate.
| Item | Specification | Unit | Remark | |
| General Parameter | Model | MTR10A | ||
| Name | Modified Emulsified Asphalt Equipment | |||
| Productivity | 10 | T/h | ||
| Total Power od Electrical Equipment | ≤71 | kw | ●Domestic Colloid Mill | |
| ≤71 | kw | ○Imported Colloid Mill | ||
| Dimension | 11000×2200×2500 | mm | ||
| Structure | Mobile Combination Structure | |||
| Oil-water Ratio | 5:5~6:4 |
Construction Case
- Construction Site in Bahrain

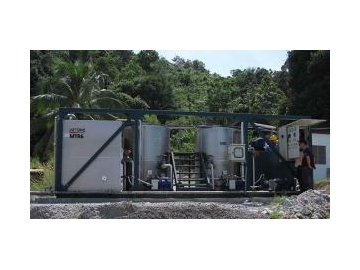

- Construction Site in Mali

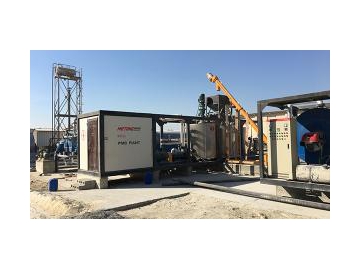

- This plant is specially designed to produce Polymer modified asphalt (such as SBS, EVA, PE) . The production process is adopted PLC automatic control system.It’s used for improving the quality of asphalt pavement, as SBS polymer bitumen used more and more for road construction.
-
-
- Emulsion plant was designed to produce emulsion bitumen and modified emulsion bitumen. We have the capacity of 6t/h and 10t/h with manual control type and Semi-automatic control type, which could meet different kind of site requirement.
-
-
- This technology can not only improve the performance and prolong the service life of asphalt pavement, but also can yield significant savings in materials, thus reducing the project cost.
-
-

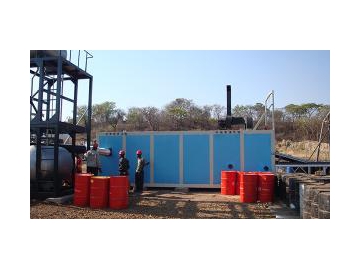

- This equipment was specially designed to melt drummed asphalt. We have different design and capacity 2t/h to 8t/h meet project requirement. It is mainly composed of Main Body, Hot Oil Heater, Asphalt Pump and Filtering System, bitumen storage tanker.
