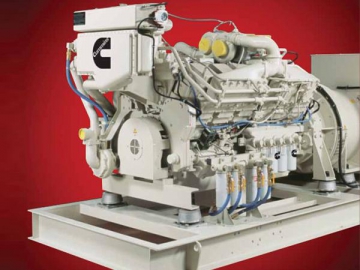

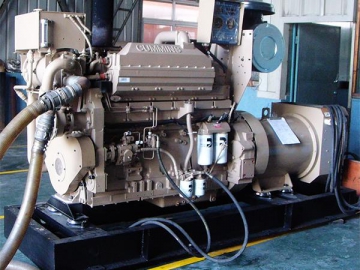

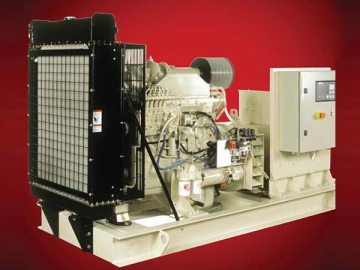

40—800kW Cummins Marine Generator
Description of Cummins Marine Generator
1. 40-800kW Cummins marine generator adopts the Cummins (Sino-USA) 4/6B, 6CT, N/KT series marine diesel engine (CCS Certificate);
2. It is equipped with some famous brushless excitation alternators (Marathon, Stamford, etc.);
3. With auto protective device, the diesel generator can control and protect the water temperature, oil temperature, oil pressure, and the speed.
4. Other Marine Classification Society Approval can be supplied upon request, such as BV(France), ABS(USA), etc.
Advantages of Cummins Marine Generator
1. Automatic speed regulation;
2. Automatic voltage regulation;
3. Better dynamic performance;
4. Stable fluctuation form of voltage;
5. Improved efficiency and reliability, long life time, etc.
| 50/60Hz, 230V/400V, 50kVA - 1000kVA | |||||||
| Generator Model | Engine Model (Cummins) | Alternator Model (Marathon) | Frequency (Hz) | Prime Power | Standby Power | ||
| kW | kVA | kW | kVA | ||||
| RCM40M | 4BTA3.9-GM47 | MP-H-40-4 | 50 | 40 | 50 | 44 | 55 |
| RCM75M | 6BT5.9-GM80 | MP-H-75-4 | 50 | 75 | 94 | 82 | 103 |
| RCM100M | 6CT8.3-GM115 | MP-H-100-4 | 50 | 100 | 125 | 110 | 138 |
| RCM140M | 6CTA8.3-GM155 | MP-H-150-4 | 50 | 140 | 175 | 154 | 193 |
| RCM200M | NTA855-G1M | MP-H-200-4 | 50 | 200 | 250 | 220 | 275 |
| RCM250M | NTA855-G2M | MP-H-250-4 | 50 | 250 | 313 | 275 | 344 |
| RCM280M | NTA855-G4M | MP-H-280-4 | 50 | 280 | 350 | 308 | 385 |
| RCM300M | KTA19-G2M | MP-H-300-4 | 50 | 300 | 375 | 330 | 413 |
| RCM350M | KTA19-G3M | MP-H-350-4 | 50 | 350 | 438 | 385 | 481 |
| RCM400M | KTA19-G4M | MX-H-400-4 | 50 | 400 | 500 | 440 | 550 |
| RCM500M | KT38-GM | MX-H-500-4 | 50 | 500 | 625 | 550 | 688 |
| RCM600M | KTA38-G2M | MX-H-630-4 | 50 | 600 | 750 | 660 | 825 |
| RCM800M | KTA38-G5M | MX-H-800-4 | 50 | 800 | 1000 | 880 | 1100 |
