Diesel Powered Generating Sets (50/60Hz, 380~480V, 3-Phase, 0.8PF)

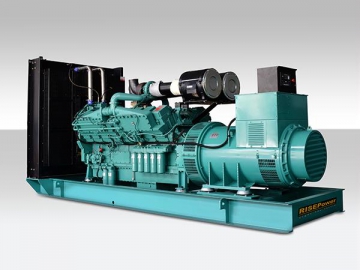

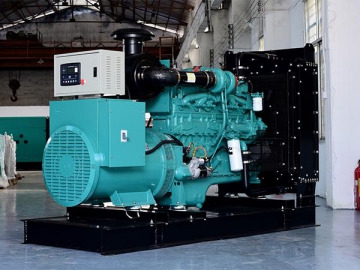

Generating Sets Powered by Cummins Engine
This RISE Power Cummins series commercial generator set is a fully-integrated power generation system, providing optimum performance, reliability and versatility for stationary standby and prime applications.

Standard Structure of Cummins Generator
1. Engine: Cummins heavy duty 4-stroke/after-cooler/turbocharged diesel engine.
2. Alternator: Marathon alternator.
3. Control System: UK Deepsea Intelligent digital control system.
4. Cooling System: Closed water cooling, ambient temperature 50℃.
5. Start up System: 24V DC startup/spring startup.
6. Structural Steel Skid Base: Robust skid base supports the engine, alternator and radiator. (base fuel tank option)
7. Accessories Parts: Industrial muffler, storage battery and battery wire, battery charger (built-in), MCCB breaker (built-in), UK Deepsea control system (built-in), tools and spare parts box, shockproof rubber pads, manual and document.

50Hz Power Range (20 - 2250kVA) Powered by Cummins
Reliable, Durable, Efficient

Model Prime Power Standby Power Engine Cylinders Displacement (L) Fuel Consumption (L/h) Lube Capacity(L) Open Version Soundproofed Version
kVA kW kVA kW L*W*H(mm) Weight (kg) L*W*H(mm) Weight (kg)
RCM16 20 16 23 18 4B3.9-G2 4L 3.9 < 4.3 11 1500*650*1150 780 2350*1100*1520 1300
RCM20 25 20 28 22 4B3.9-G2 4L 3.9 < 5.2 11 1500*650*1150 800 2350*1100*1520 1320
RCM24 30 24 33 26 4BT3.9-G2 4L 3.9 < 7.0 11 1800*730*1250 820 2350*1100*1520 1340
RCM30 38 30 41 33 4BT3.9-G2 4L 3.9 < 7.0 11 1800*730*1250 830 2350*1100*1520 1350
RCM32 40 32 45 36 4BT3.9-G2 4L 3.9 < 8.0 11 1820*730*1250 845 2350*1100*1520 1365
RCM40 50 40 55 44 4BTA3.9-G2 4L 3.9 < 10.0 11 1900*730*1300 930 2350*1100*1520 1450
RCM45 56 45 63 50 4BTA3.9-G2 4L 3.9 < 12.0 11 1900*730*1300 955 2350*1100*1520 1475
RCM50 63 50 69 55 4BTA3.9-G11 4L 3.9 < 13.0 11 1900*785*1300 968 2350*1100*1520 1650
RCM58 73 58 80 64 4BTA3.9-G11 4L 3.9 < 17.6 11 1900*785*1300 990 2350*1100*1520 1700
RCM63 79 63 86 69 4BTA3.9-G11 4L 3.9 < 17.6 11 1900*785*1300 1020 2350*1100*1520 1800
RCM70 88 70 96 77 6BT5.9-G2 6L 5.9 < 19.5 16 2200*830*1280 1250 3200*1150*1750 2040
RCM75 94 75 103 82 6BT5.9-G2 6L 5.9 < 21.2 16 2200*830*1280 1260 3200*1150*1750 2050
RCM80 100 80 110 88 6BT5.9-G2 6L 5.9 < 22.9 16 2200*830*1280 1272 3200*1150*1750 2062
RCM90 113 90 124 99 6BTA5.9-G2 6L 5.9 < 25.5 16 2200*830*1325 1295 3200*1150*1750 2130
RCM104 130 104 144 115 6BTAA5.9-G2 6L 5.9 < 29.5 16 2360*830*1335 1380 3200*1150*1750 2167
RCM120-1 150 120 165 132 6BTAA5.9-G12 6L 5.9 < 34.8 16 2360*830*1335 1420 3200*1150*1750 2430
RCM120 150 120 165 132 6CTA8.3-G2 6L 8.3 < 35.7 24 2360*850*1366 1780 3600*1330*2010 3038
RCM140 175 140 193 193 6CTA8.3-G2 6L 8.3 < 41.2 24 2360*850*1366 1830 3600*1330*2010 3100
RCM150 188 150 206 165 6CTA8.3-G2 6L 8.3 < 42 24 2360*850*1366 1860 3600*1330*2010 3130
RCM160 200 160 220 176 6CTAA8.3-G2 6L 8.3 < 43.3 24 2400*980*1460 1870 3600*1330*2010 3060
RCM180 225 180 248 198 6LTAA8.9-G2 6L 8.9 < 47.8 24 2540*1020*1530 1960 3600*1330*2040 3380
RCM200 250 200 275 220 6LTAA8.9-G2 6L 8.9 < 53 24 2540*1020*1530 1985 3600*1330*2040 3405
RCM180-1 225 180 250 200 NT855-GA 6L 14 < 47.5 39 3000*1050*1750 2450 4300*1480*2140 4200
RCM200-1 250 200 275 220 NT855-GA 6L 14 < 52.3 39 3000*1050*1750 2480 4300*1480*2140 4250
RCM220 275 220 303 242 NTA855-G1A 6L 14 < 60 39 3000*1050*1750 2680 4300*1480*2140 4450
RCM230 288 230 316 253 MTAA11-G3 6L 11 < 61 39 3000*1140*1600 2350 4500*1580*2100 4800
RCM240 300 240 330 264 MTAA11-G3 6L 11 < 62 39 3000*1140*1600 2380 4500*1580*2100 4820
RCM250 313 250 344 275 NTA855-G1B 6L 14 < 68.3 39 3000*1050*1750 2800 4300*1480*2140 4600
RCM250-1 313 250 344 275 MTAA11-G3 6L 11 < 63 39 3000*1140*1600 2400 4500*1580*2100 4850
RCM260 325 260 358 286 NTA855-G2A 6L 14 < 69 39 3000*1060*1760 2920 4300*1480*2140 4710
RCM270 338 270 371 297 NTA855-G2A 6L 14 < 70 39 3000*1060*1760 2950 4300*1480*2140 4750
RCM275 344 275 375 300 NTA855-G2A 6L 14 < 72 39 3000*1060*1760 3000 4300*1480*2140 4800
RCM300 375 300 413 330 NTAA855-G7 6L 14 < 83 39 3250*1120*1720 2850 4500*1580*2100 5300
RCM360S N/A N/A 450 360 NTAA855-G7A 6L 14 < 87 39 3250*1120*1720 2880 4500*1580*2100 5330
RCM350 438 350 481 385 KTA19-G3 6L 18.9 < 95 50 3350*1280*1930 3700 4800*1683*2200 6400
RCM360 450 360 500 400 KTA19-G3 6L 18.9 < 95.1 50 3350*1280*1930 3800 4800*1683*2200 6500
RCM400 500 400 550 440 KTA19-G3A 6L 18.9 < 94.6 50 3350*1280*1930 3940 4800*1683*2200 6640
RCM400-1 500 400 550 440 QSZ13-G3 6L 14 < 96.5 45 3250*1350*2100 3750 5000*1980*2370 6510
RCM420 525 420 631 505 KTAA19-G5 6L 18.9 < 113 50 3525*1550*2030 4010 5000*1980*2370 6770
RCM520S N/A N/A 650 520 KTA19-G8 6L 18.9 < 125 50 3350*1280*1930 4150 4800*1683*2200 6800
RCM460 575 460 650 520 KTAA19-G6 6L 18.9 < 118.5 50 3525*1550*2030 4200 5000*1980*2370 6850
RCM550S N/A N/A 688 550 KTAA19-G6A 6L 18.9 < 128 50 3525*1550*2030 4220 5000*1980*2370 6870
RCM560 700 560 770 616 KTA38-G2 12V 37.8 < 165 135 4200*1800*2380 6800 6058*2438*2896 11800
RCM600 750 600 825 660 KTA38-G2 12V 37.8 < 167 135 4200*1800*2380 7000 6058*2438*2896 12000
RCM640 800 640 888 710 KTA38-G2B 12V 37.8 < 169 135 4200*1800*2380 7150 6058*2438*2896 12160
RCM700 875 700 963 770 KTA38-G2A 12V 37.8 < 195 135 4200*1800*2380 7170 6058*2438*2896 12190
RCM728 900 728 1000 800 KTA38-G2A 12V 37.8 < 196 135 4200*1800*2380 7210 6058*2438*2896 12250
RCM800 1000 800 1100 880 KTA38-G5 12V 37.8 < 209 135 4200*1810*2250 7310 6058*2438*2896 12370
RCM1000S N/A N/A 1250 1000 KTA38-G9 12V 37.8 < 210 135 4350*2090*2180 8100 6058*2438*2896 13417
RCM1000 1250 1000 1375 1100 KTA50-G3 16V 50 < 254 177 5000*1850*2343 9038 12192*2438*2896 16850
RCM1100 1375 1100 1650 1320 KTA50-G8 16V 50 < 289 204 5200*2260*2510 9520 12192*2438*2896 18320
RCM1180 1475 1180 1650 1320 KTA50-GS8 16V 50 < 309 204 5200*2260*2510 9900 12192*2438*2896 18500
RCM1232 1540 1232 1700 1360 QSK50-G4 16V 50 < 326 235 4780*2065*2230 9750 12192*2438*2896 18800
RCM1320 1650 1320 1815 1452 QSK50-G7 16V 50 < 349 235 4780*2065*2230 9900 12192*2438*2896 20600
RCM1500 1875 1500 2063 1650 QSK60-G3 16V 60 < 397 280 5900*2180*2600 14300 12192*2438*2896 21000
RCM1636 2045 1636 2250 1800 QSK60-G4 16V 60 < 433 280 6180*2285*2540 15500 12192*2438*2896 21100
RCM1800 2250 1800 2500 2000 QSK60-G21 16V 60 < 455 280 6230*2285*2540 15600 12192*2438*2896 22000

60Hz Power Range (22 - 2281kVA) Powered by Cummins
Reliable, Durable, Efficient

Model Prime Power Standby Power Engine Cylinders Displacement (L) Fuel Consumption(L/h) Lube Capacity(L) Open Version Soundproofed Version
kVA kW kVA kW L*W*H(mm) Weight (kg) L*W*H(mm) Weight (kg)
RCM18 22 18 24 19 4B3.9-G2 4L 3.9 < 8.6 11 1500*650*1150 750 2350*1100*1520 1350
RCM24 30 24 33 27 4B3.9-G2 4L 3.9 < 8.6 11 1500*650*1150 780 2350*1100*1520 1380
RCM30 38 30 41 33 4BT3.9-G2 4L 3.9 < 10 11 1800*730*1250 810 2350*1100*1520 1410
RCM34 43 34 46 37 4BT3.9-G2 4L 3.9 < 7.0 11 1800*730*1250 810 2350*1100*1520 1410
RCM44 55 44 60 48 4BTA3.9-G2 4L 3.9 < 15.4 11 1900*730*1300 900 2350*1100*1520 1540
RCM50 63 50 69 55 4BTA3.9-G2 4L 3.9 < 15.4 11 1900*730*1300 900 2350*1100*1520 1540
RCM60 75 60 83 66 4BTA3.9-G2 4L 3.9 < 19.4 11 1900*730*1300 900 2350*1100*1520 1540
RCM72 90 72 100 80 4BTA3.9-G11 4L 3.9 < 20.1 11 1900*785*1300 1020 2350*1100*1520 1700
RCM80 100 80 110 88 6BT5.9-G2 6L 5.9 < 23.9 16 2200*830*1280 1200 3200*1150*1750 1990
RCM90 113 90 125 100 6BT5.9-G2 6L 5.9 < 26 16 2200*830*1280 1250 3200*1150*1750 2040
RCM105 131 105 145 116 6BTA5.9-G2 6L 5.9 < 29.7 16 2200*830*1325 1290 3200*1150*1750 2080
RCM120 150 120 165 132 6BTAA5.9-G2 6L 5.9 < 34 16 2360*830*1335 1350 3200*1150*1750 2140
RCM130 163 130 179 143 6BTAA5.9-G12 6L 5.9 < 37.8 16 2360*830*1335 1420 3200*1150*1750 2430
RCM140 175 140 193 154 6CTA8.3-G2 6L 8.3 < 39.9 24 2360*850*1366 1750 3600*1330*2010 3050
RCM160 200 160 220 176 6CTA8.3-G2 6L 8.3 < 44 24 2360*850*1366 1760 3600*1330*2010 3060
RCM175 219 175 240 192 6CTAA8.3-G2 6L 8.3 < 49 24 2400*980*1460 1800 3600*1330*2010 3100
RCM200 250 200 275 220 6LTAA8.9-G2 6L 8.9 < 54 24 2540*1020*1530 1940 3600*1330*2040 3240
RCM236 295 236 325 260 6LTAA8.9-G3 6L 8.9 < 62 28 2540*1020*1530 1950 3600*1330*2040 3250
RCM220S N/A N/A 275 220 NT855-GA 6L 14 < 60.4 39 3000*1050*1750 2480 4300*1480*2140 4250
RCM256 320 256 350 280 NTA855-G1 6L 14 < 70.1 39 3000*1050*1750 2840 4300*1480*2140 4470
RCM275 344 275 375 300 NTA855-G1B 6L 14 < 70.5 39 3000*1050*1750 2870 4300*1480*2140 4500
RCM320 400 320 440 352 NTA855-G3 6L 14 < 85.1 39 3000*1050*1750 2940 4300*1480*2140 4520
RCM350 438 350 481 385 KTA19-G2 6L 18.9 < 95.8 50 3350*1280*1930 3625 4800*1683*2200 6400
RCM400 500 400 550 440 KTA19-G3 6L 18.9 < 101 50 3350*1280*1930 3700 4800*1683*2200 6475
RCM450 563 450 625 500 KTA19-G3A 6L 18.9 < 115 50 3350*1280*1930 3870 4800*1683*2200 6600
RCM470 588 470 688 550 KTAA19-G5 6L 18.9 < 134 50 3525*1550*2030 3950 5000*1980*2370 6720
RCM600S N/A N/A 750 600 KTAA19-G6A 6L 18.9 < 142 50 3525*1550*2030 4100 5000*1980*2370 6800
RCM620 775 620 850 680 KT38-G 12V
