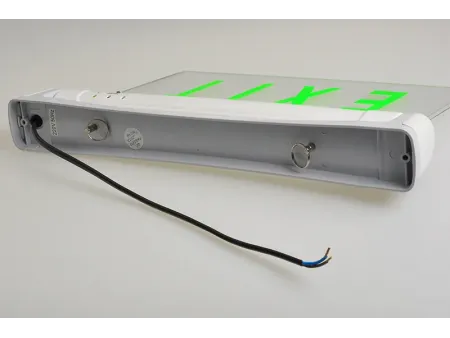

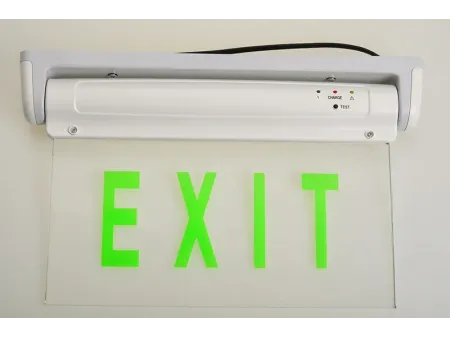

LE2912 Edge-Lit LED Exit Sign with ABS/Acrylic Panel (5 Green LEDs)

Request a Quote

Website: http://ft-emergencylight.com/2-1-2-edge-lit-led-exit-sign-with-abs-acrylic-panel.html

The sign uses five green LEDs as the light source, and a lifespan of over 50,000 hours.
Includes a built-in 3.6V 500mAh nickel-cadmium (Ni-Cd) rechargeable battery for emergency backup.
The total power consumption is rated at 2W depending on the configuration.
The housing is made of durable ABS material paired with an acrylic face panel for a sleek appearance and reliable performance.
It operates in both AC and DC modes, supporting a wide input voltage range of 110V to 240V at 50/60Hz.
The unit functions reliably within an ambient temperature range of 0°C to 50°C.
It reaches full battery charge in approximately 20 hours and provides up to 6 hours of emergency runtime.
Designed for flexible installation, it supports multi-angle wall mounting.
The exit light has an IP20 protection rating, suitable for indoor use.
It is classified as Insulation Class I for electrical safety.
Optional customizations include different LED colors, varying LED quantities, and a DC-only operation mode upon request.

Specifications

Model	LE2912
Color	White/green directional pictograms
Material	PMMA exit panel & ABS housing
Voltage	110-240 Volts
Battery	3.6V 500mAh Ni-Cad
Wattage	2W
Type of Bulb	LED
Mounting	Surface, ceiling or cord suspended
Certifications	CE, ROHS, IEC
Weather Rating	IP20
Product Weight	1.76lbs /0.8kgs
Product Size	350×269×42mm
Ordering and Packing Information
MOQ		1000pcs
Lead Time		35 days
Sample Delivery Time		3~10 days
Packing		White box
Carton Size (L×W×H)		56.5×39×25cm/10pcs
Carton CBM		0.055m³
Quantity per Carton		10pcs
Gross Weight		9.5kgs/ctn
Net Weight		8.5kgs/ctn
Container Loading Quantity		1×20'	1×40'	1×40' HQ
		5000pcs	10455pcs	12182pcs
