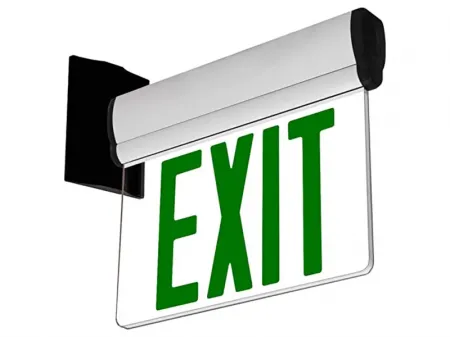

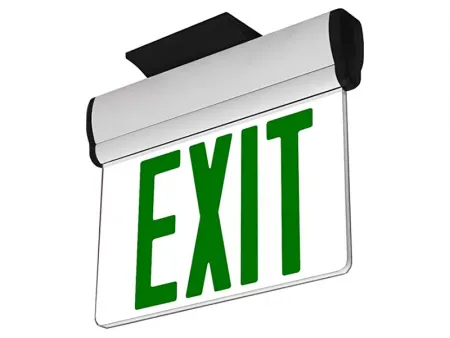

JELBEX Edge-Lit LED Exit Sign with Clear/Mirrored Acrylic Panel

Request a Quote

Website: http://ft-emergencylight.com/2-1-6-edge-lit-led-exit-sign-with-clear.html

Aluminum housing with hight grade acrylic panel for long-lasting performance and a modern aesthetic.
Offers flexible mounting options, including ceiling, wall, and side installation, to accommodate different architectural layouts.
Features removable directional arrows to adapt signage based on specific building exit pathways.
120-277VAC Universal voltage aperation. Super bright RED or GREEN LED lamps.
Equipped with high-intensity LEDs for clear visibility in emergency conditions.
Built-in 4.8V 500mAh Ni-MH battery provides a minimum of 90 minutes of emergency illumination during power outages.
Rechargeable system with a full charge time of up to 24 hours.
Includes test switch and charging indicator light for easy status monitoring and routine maintenance.
Front cover is removable, allowing for straightforward installation and convenient battery access.
Certified to UL and cULus standards for both safety and performance assurance.
Suitable for indoor environments with 0-40°C operating temperature and moisture-resistant design.
Customization available: choose between single or double face, red or green LEDs, and clear or mirrored acrylic panels.

Specifications

Model	JELBEX
Material	Aluminum housing with acrylic face
Voltage	120 - 277 Volts
Battery	4.8V 500mAh Ni-MH
Wattage	2.5W/3W
Type of Bulb	LED
Mounting	Wall, sloped, high, or standard ceiling mounting
Certifications	UL&cUL, CEC, DOE, FCC, ROHS
Weather Rating	Listed for damp location
Product Weight	3.1lbs/1.4kgs
Product Size	308×46.3×248.6mm
Ordering and Packing Information
MOQ	1000pcs
Lead Time	35 days
Sample Delivery Time	3~10 days
Packing	White box
Carton Size (L×W×H)	39×32.5×20.5cm/6pcs
Carton CBM	0.026m³
Quantity per Carton	6pcs
Gross Weight	9kgs/ctn
Net Weight	8kgs/ctn
Container Loading Quantity	1×20'	1×40'	1×40' HQ
	6346pcs	13269pcs	15462pcs
