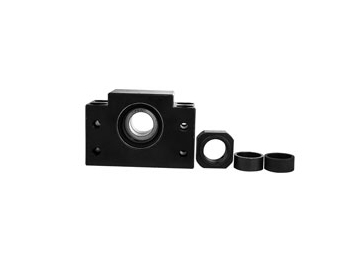

Ball Screw Support Unit, Type LEK Fixed Side
Request a Quote
| Model | L | L3 | B | H | b | h1±0.02 | B1 | H1 | P | d1 | d3 | d4 | Mass (kg) |
| LEK10-2 | 24 | 6 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | 21 | 26 | 0.45 |
| LEK12-2 | 24 | 6 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | 24 | 28 | 0.42 |
| LEK15-2 | 25 | 5 | 80 | 49 | 40 | 30 | 41 | 25 | 60 | 11 | 28 | 32 | 0.52 |
| LEK20-2 | 42 | 10 | 95 | 58 | 47.5 | 30 | 56 | 25 | 75 | 11 | 37 | 47 | 1.25 |
