Side Flow Integrated Water Processor Manufacturer

Side Flow Integrated Water Processor

Request a Quote

View All: http://watertreatmentdevice.com/2-1-4-2-side-flow-integrated-water-processor.html

Water treatment device for cooling water system and circulating water system

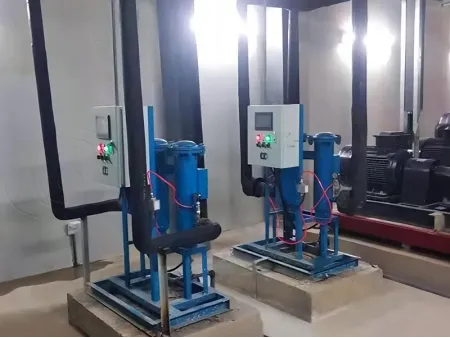

Commonly installed on a bypass pipeline, the side flow integrated water processor treats a portion of the circulating water using advanced micro-electrolysis technology. This innovative approach produces oxidizing substances from dissolved chloride ions, oxygen molecules, and water molecules, effectively enhancing water quality and system efficiency. Different models are available to meet the unique demands of both open and closed water systems, ensuring optimal performance and extended longevity for a wide range of applications.

Materials: Main unit Q235, filter cartridge SUS304, drainage valve SUS304

P Type (for open cooling water system)

Configuration: Main unit, control box, IP55 cleaning motor, stainless steel cleaning mechanism, dual-precision stainless steel filter cartridges, stainless steel electric drainage valve, differential pressure controller, brass automatic air vent valve, stainless steel vibration-resistant pressure gauge.

PB Type (for closed circulating water system)

Configuration: Main unit, control box, differential pressure controller, dual-precision filter cartridges, stainless steel electric drainage valve, stainless steel vibration-resistant pressure gauge.

Specifications

Model	P Type (for open cooling water system)	PB Type (for closed circulating water system)
Power Supply	220V, 50Hz
Sterilization Rate	>99%
Voltage	< 36V
Algae Killing Rate	>97%
Applicable Water Temperature	0℃-95℃
Head Loss	2-5m	0.2-1.0m
Raw Water Quality	Measured by CaCO3
Efficiency	97%
Total Hardness	<700mg/L

Model Options of Side Flow Integrated Water Processor (P Type)

Model	Pipework Size (mm)	Inlet/Outlet Size (mm)	Dimensions L×W×H (mm)	Floor Area L×W (mm)	Net Weight (kg)	Operating Weight (kg)	Dirty Water Outlet Diameter (mm)	Power (W)
ECH-P-80	DN80	DN25	845×565×1695	845×565	161	221	DN20	1000
ECH-P-100	DN100	DN25	845×565×1695	845×565	161	221	DN20	1000
ECH-P-125	DN125	DN25	845×565×1695	845×565	161	221	DN20	1000
ECH-P-150	DN150	DN25	845×565×1695	845×565	161	221	DN20	1000
ECH-P-200	DN200	DN25	845×565×1695	845×565	161	221	DN20	1000
ECH-P-250	DN250	DN32	845×565×1695	845×565	162	222	DN20	1000
ECH-P-300	DN300	DN32	845×565×1695	845×565	162	222	DN20	1000
ECH-P-350	DN350	DN32	845×565×1695	845×565	162	222	DN20	1000
ECH-P-400	DN400	DN32	845×565×1695	845×565	162	222	DN20	1000
ECH-P-450	DN450	DN40	845×565×1695	845×565	163	223	DN20	1000
ECH-P-500	DN500	DN40	845×565×1695	845×565	163	223	DN20	1000
ECH-P-600	DN600	DN40	845×565×1695	845×565	163	223	DN20	1000
ECH-P-700	DN700	DN50	915×565×1695	845×565	165	225	DN20	1000
ECH-P-800	DN800	DN50	915×565×1695	845×565	165	225	DN20	1000
ECH-P-900	DN900	DN65	915×565×1695	845×565	168	228	DN20	1000
ECH-P-1000	DN1000	DN65	915×565×1695	845×565	168	228	DN20	1000

Model Options of Side Flow Integrated Water Processor (PB Type)

Model	Pipework Size (mm)	Inlet/Outlet Size (mm)	Dimensions L×W×H (mm)	Floor Area L×W (mm)	Net Weight (kg)	Operating Weight (kg)	Dirty Water Outlet Diameter (mm)	Power (W)
ECH-PB-80	DN80	DN25	745×565×1355	745×565	129	179	DN20	250
ECH-PB-100	DN100	DN25	745×565×1355	745×565	129	179	DN20	250
ECH-PB-125	DN125	DN25	745×565×1355	745×565	129	179	DN20	250
ECH-PB-150	DN150	DN25	745×565×1355	745×565	129	179	DN20	250
ECH-PB-200	DN200	DN25	745×565×1355	745×565	129	179	DN20	250
ECH-PB-250	DN250	DN32	745×565×1355	745×565	130	180	DN20	250
ECH-PB-300	DN300	DN32	745×565×1355	745×565	130	180	DN20	250
ECH-PB-350	DN350	DN32	745×565×1355	745×565	130	180	DN20	250
ECH-PB-400	DN400	DN32	745×565×1355	745×565	130	180	DN20	250
ECH-PB-450	DN450	DN40	745×565×1355	745×565	132	182	DN20	250
ECH-PB-500	DN500	DN40	745×565×1355	745×565	132	182	DN20	250
ECH-PB-600	DN600	DN40	745×565×1355	745×565	132	182	DN20	250
ECH-PB-700	DN700	DN50	805×565×1355	745×565	133	183	DN20	250
ECH-PB-800	DN800	DN50	805×565×1355	745×565	133	183	DN20	250
ECH-PB-900	DN900	DN65	805×565×1355	745×565	135	185	DN20	250
ECH-PB-1000	DN1000	DN65	805×565×1355	745×565	135	185	DN20	250
