JW3208

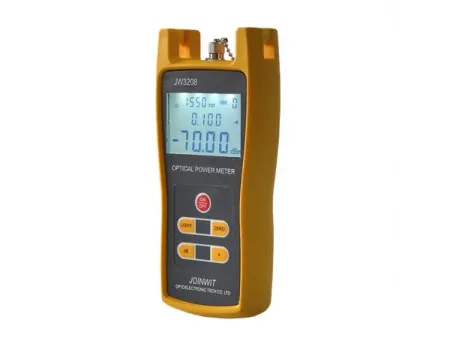

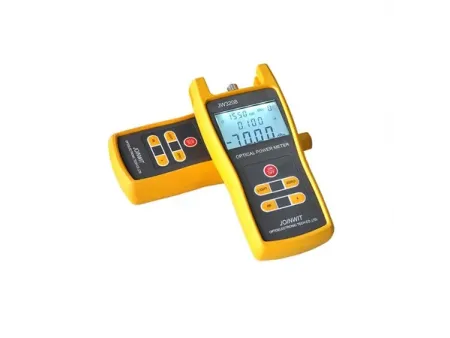

Handheld Optical Power Meter with Large LCD Display
Request a Quote
Features
- Large LCD display ensures easy readability in all conditions.
- Standby time of up to 240 hours for extended operations.
- User calibration allows personalized settings for accurate testing.
- Energy-saving modes and automatic shutdown maximize battery efficiency.
- Compatible with alkaline and NiMH rechargeable batteries for flexibility in the field.
Specifications
| Model | JW3208 | |
| Wavelength Range | 800 to 1600nm, 400 to 1100nm | |
| Detector Type | InGaAs/Si | |
| Measurement Range | -70 to 6dBm (A) | -50 to 26dBm (C) |
| Uncertainty | ±0.15dB | |
| Display Resolution | Linear display: 0.1% Logarithmic display: 0.01dBm | |
| Operating Temperature | -10 to 60℃ | |
| Storage Temperature | -25 to 70℃ | |
| Automatic Shut-off | 10min/no shut-off | |
| Battery Operating Time | ≥130h | |
| Power Supply | 3* AA 1.5V batteries | |
| Weight | 200g | |
| Dimensions | 152×74×26mm | |
