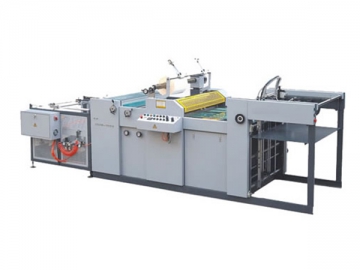

Automatic Laminating Machine
Request a Quote
View All: http://printingmachinecn.com
The automatic laminating machine adopts automatic feeder to assure the feeding, laminating, separating are totally inline for laminating job. Thanks to the servo motor and the touch screen, the operation is easy and convenient. By setting the paper length, the machine carries out the overlapping automatically with an overlap tolerance of about ±2mm. It adopts heat-transfer oil for the heating roller and a temperature meter inside the oil without contacting the roller surface to get the accurate temperature.
Specifications| Model | YFMA520 |
| Feeding | Automatic |
| Separation | Screen setting automatically |
| Paper | 90 – 450gsm, 500×750mm |
| Maximum width 75cm and length 70cm. But for biggest size, paper weight need to be more than 125g. | |
| Feeder's load capacity | √ |
| Laminating roller surface | Silicone |
| Suitable format | B1, B2, B3, A4 and so on |
| Max paper (width × length) | 500mm×720mm |
| Speed control | 0~30m/min |
| Max performance | B2: 2600pcs/h |
| Temperature control | 60 - 140℃ |
| Power supply | 380v 50Hz 3 P / 220V 60Hz 3P / 220V 50Hz 2 P |
| Power | With compressor 11kW |
| Machine Weight | 650kg |
| Modular Stand | √ |
| Reception Unit | √ |
| Jogger | Optional |
| Machine size | 2570×1210×1200mm |
| Machine weight | 500kg |
