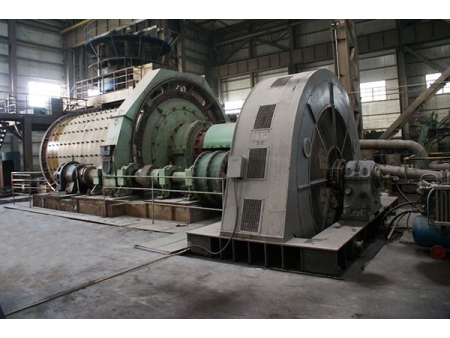

Yate ball mill is a type of grinder used to grind and blend bulk material into small sized balls. The ball mill is commonly applicable for grinding various ores or rocks in mining, construction and other industries.

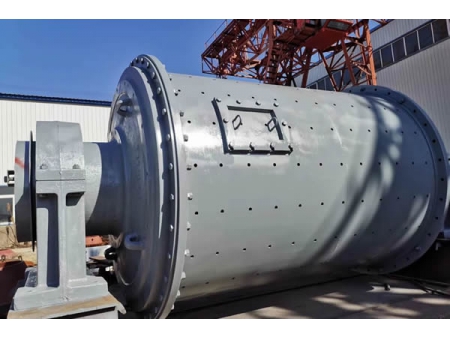

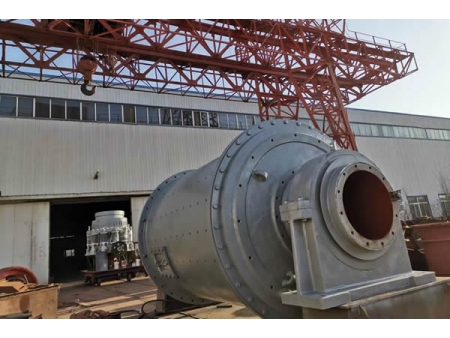

This ball mill consists of a hollow cylindrical shell rotating about its axis. The axis of the shell may be either horizontal or at a small angle to the horizontal. It is partially filled with balls. The grinding media are the balls, which may be made of steel, stainless steel, ceramic, or rubber. The inner surface of the cylindrical shell is usually lined with an abrasion-resistant material such as manganese steel or rubber lining. Less wear takes place in rubber lined mills. The length of the mill is approximately equal to its diameter. As you know, this grinding machine usually works on the principle of impact and attrition: size reduction is done by impact as the balls drop from near the top of the shell.

Features

The ball mill boasts a low cost of installation and grinding medium;
The capacity and fineness of the ball mill can be adjusted by adjusting the diameter of the ball;
The ball mill is well suitable for both batch and continuous operation;
Suitable for open and closed-circuit grinding;
Applicable for materials of all degrees of hardness；

Technical data of the MQS ball mill with wet grinding process

Model	MQS0909	MQS0918	MQS1212	MQS1224	MQS1515	MQS1530	MQS2122	MQS2130
Cylinder diameter (mm)	900	900	1200	1200	1500	1500	2100	2100
Cylinder length (mm)	900	1800	1200	2400	1500	3000	2200	3000
Volume (m³)	0.5	1	1.2	2.4	2.5	5	6.6	9
Maximum ball loading (t)	0.96	1.92	2.4	4.8	5	10	15	20
Motor power (kW)	17	22	30	55	60	95	155	210
Weight (t)	4.62	5.34	11.4	13.43	13.9	17.4	42.2	45

Model	MQS2721	MQS2727	MQS2736	MQS3230	MQS3236	MQS3245	MQS3639	MQS3645	MQS3650	MQS3660
Cylinder diameter (mm)	2700	2700	2700	3200	3200	3200	3600	3600	3600	3600
Cylinder length (mm)	2100	2700	3600	3000	3600	4500	3900	4500	5000	6000
Volume (m³)	10.8	13.9	28.5	21.8	28.5	32.8	36	41	46.2	57
Maximum ball loading (t)	23	29	39	46	58	65	75	90	96	120
Motor power (kW)	260	310	400	500	630	800	1000	1250	1400	1600
Weight (t)	62	66	77	108	115	123	145	158	165	189

Model	MQS4061	MQS4560	MQS4565	MQS4570	MQS4866	MQS4870	MQS4875	MQS5580	MQS5592
Cylinder diameter (mm)	4000	4500	4500	4500	4800	4800	4800	5500	5500
Cylinder length (mm)	6100	6000	6500	7000	6600	7000	7500	8000	9200
Volume (m³)	71	87.1	94.3	101.5	107.5	114	122	175.5	202
Maximum ball loading (t)	148	153	165	178	200	212	227	326	375
Main motor model	TDMK 2000-30	TDMK 2300-30	TDMK 2500-30	TDMK 2500-30	TDMK 3000-30	TDMK 3000-30	TDMK 3500-30	TDMK 4800-30	TDMK 5200-30
Motor power (kW)	2000	2300	2500	2500	3000	3000	3500	4800	5200
Voltage (V)	10000
Weight (t)	240	269	280	291	286	295	305	442	466

Note: Machine weight does not include motor weight.

Technical data of the MQG ball mill with dry grinding process

Model	MQG0909	MQG0918	MQG1212	MQG1224	MQG1515	MQG1530	MQG2122	MQG2714
Cylinder diameter (mm)	900	900	1200	1200	1500	1500	2100	2700
Cylinder length (mm)	900	1800	1200	2400	1500	3000	2200	1450
Volume (m³)	0.5	1	1.2	2.4	2.5	5	6.6	7.2
Maximum ball loading (t)	0.96	1.92	2.4	4.8	4	8	14	13
Motor power (kW)	18.5	22	30	55	60	95	160	210
Weight (t)	4.39	5.36	10.5	12.5	13.5	18	47	48.26

Note: Machine weight does not include motor weight.

Technical data of MQY overflow discharge type ball mill

Model	MQY0918	MQY1224	MQY1530	MQY2130	MQY2136	MQY2721	MQY2736	MQY2740
Cylinder diameter (mm)	900	1200	1500	2100	2100	2700	2700	2700
Cylinder length (mm)	1800	2400	3000	3000	3600	2100	3600	4000
Volume (m³)	1	2.4	5	9	11	10.4	18.5	20.6
Maximum ball loading (t)	1.66	4.8	8	18	20	24	38	40
Motor power (kW)	22	55	95	210	210	280	400	400
Weight (t)	5.4	12.24	16.28	43.2	46.8	63.9	70	78.8

Model	MQY3245	MQY3254	MQY3260	MQY3645	MQY3650	MQY3660	MQY3690	MQY4060	MQY4561	MQY5164	MQY5583	MQY5585	MQY5588	MQY6080	MQY6095
Cylinder diameter (mm)	3200	3200	3200	3600	3600	3600	3600	4000	4500	5100	5500	5500	5500	6000	6000
Cylinder length (mm)	4500	5400	6000	4500	5000	6000	9000	6000	6100	6400	8300	8500	8800	8000	9500
Volume (m³)	32.8	39.5	43.7	41	46.2	55	83	69.9	93.3	117.8	182	185	191.5	210	249.3
Maximum ball loading (t)	61	73	81	76	86	102	163	113	151	218	296	300	335	389.5	462.6
Main motor model	TDMK 630-36	TDMK 1000-36/2600			TM 1250-40/2250		TM 1800 -30	TM 1500 -30/2600	TDMK 2200 -30/2600	TDMK 2600-32	TDMK 4100-30	TDMK 4500-30	TDMK 4500-30	TDMK 5200-30	TDMK 6000-30
Motor power (kW)	630	1000	1000	1000	1250	1250	1800	1500	2200	2600	4100	4500	4500	5200	6000
Weight (t)	112	121	138	135	145	154	212	213	272	290	435	440	452	583	618
