Fertilizer Crushing Equipment
Ball Mill
Request a Quote

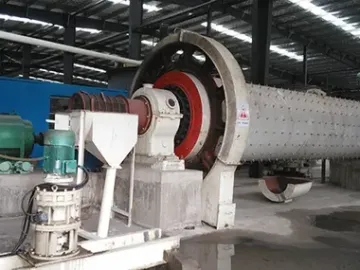

A ball mill uses the rotation of a cylindrical drum filled with grinding media, like steel or ceramic balls, to crush materials into a fine powder through a combination of impact and friction. It can be used for either dry or wet grinding and is capable of processing a wide range of materials, including metal ore, coal, and ceramic raw materials.
Applications
- In the mining industry, ball mills are used for grinding ore to create a pulp of the correct particle size for subsequent ore dressing.
- In the chemical industry, they are used for powdering raw materials to improve the efficiency of chemical reactions.
- In the building materials industry, they are used for grinding cement and ceramic raw materials to improve product quality.
Specifications
Drum Size (m) | Drum Speed (r/min) | Grinding Ball Loading Capacity (t) | Production Capacity (t/h) | Main Motor | Main Reducer | Weight (t) | |
Model | Power (kW) | Model | |||||
Ø2.4×8 | 20.9 | 45 | 21~24 | JRQ1512-8 | 570 | ZD80 | 72 |
Ø3.0×9 | 18.6 | 80 | 26~34 | YR1000-8/1180 | 1000 | MBY800 | 132 |
Ø3.4×9.5 | 16.9 | 75 | 70 | YR1250-8/1430 | 1250 | JDX900 | 168 |
Ø3.8×7.5 | 16.7 | 85 | 85 | YR710-8 | 1400 | MBY800 | 180 |
Ø4.6×9.5 3.5 | 15 | 185 | 180~190 | YRKK900-8 | 3550 | MFY355 | 345 |
The cylindrical shell material is Q235 steel, with internal liners available in either rubber or steel.
On-Site Cases
Guangxi Chemical Industry Design Institute purchased our Ø2.4×8 ball mill.
Hubei Ezhong Chemical Co., Ltd. purchased our Ø3.0×9 ball mill.
