Stirred Mill, Tower Mill

Request a Quote

View All: http://crushing-grinding.com/2-2-stirred-mill-tower-mill.html

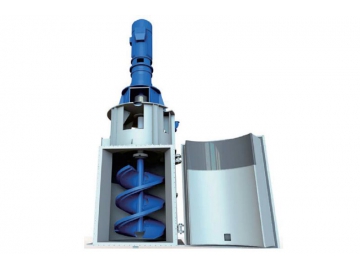

As a vertical agitated media mill for wet and dry grinding of ores and minerals, Yate tower mill is well recognized as an energy efficient grinding mill. With the tall, narrow and vertical body arrangement, grinding media of this tower mill is evenly distributed and mineral particles remain in constant contact, significantly increasing grinding efficiency. Furthermore, the tower mill takes full advantage of gravitational forces and grind force rotor technology to produce a finer grind for mineral liberation. More importantly, this vertical agitated media tower mill has a wide range of applications, including secondary and tertiary grinding, regrinding, fine grinding, and lime slaking applications.

Features and Advantages

Continuous and large volume grinding of the tower mill enables a high throughput capacity;
Due to highly effective grinding, this vertical agitated media tower mill is more energy-saving and cost-effective;
Space saving and suitable for a variety of applications;
Less wear cost;

Technical data

Model	Motor power (kW)	Cylinder diameter (mm)	Processing capacity (Vh)
WTM-90	90	1400	5-12
WTM-200	200	2000	15-25
WTM-280	280	2200	20-30
WTM-355	355	2400	25-35
WTM-400	400	2600	30-40
WTM-500	500	2800	40-50
WTM-560	560	3000	45-55
WTM-710	710	3300	55-75
WTM-800	800	3300	65-85
WTM-900	900	3300	75-95
WTM-1000	1000	3500	85-110
WTM-1120	1120	3500	95-130
WTM-1250	1250	3700	105-145
WTM-1500	1500	4200	125-165
