CNC Wall Panel Edge Slotting Machine (Single Side)

Request a Quote

View All: http://woodmachines-en.com/2-1-cnc-wall-panel-edge-slotting-machine-single-side.html

Wood processing machine for cutting slots on one edge of wood panel

Working thickness0-60mm
Spindle power5.5kW
Spindle speed12000r/min
Total power13kW

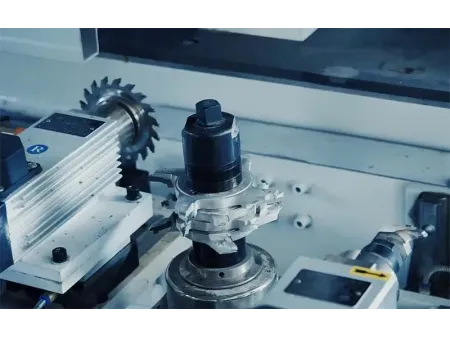

The CNC wall panel edge slotting machine is designed for slotting wall cladding panels, including wood-plastic composites, decorative wallboards, and multi-layer panels. It ensures clean slot cuts on one edge of wooden panel without edge chipping, fuzzing, or dimensional inaccuracies, eliminating issues like misaligned bevels. The wood processing machine is also equipped with an optional scoring saw, ideal for working with high-gloss boards such as melamine film panels, PET, or PEG sheets, effectively preventing edge damage and surface fiber pull-out during slotting.

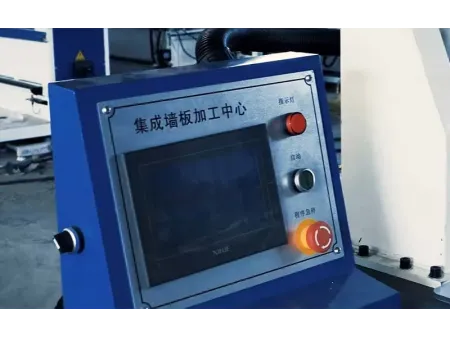

With its simple human-machine interface, the system is easy to operate, reducing the need for highly skilled operators while ensuring high processing precision and durability.

Advantages

High precision, effectively avoids edge damage and maintains clean, accurate slots.
Slot shapes can be customized based on specific design requirements.

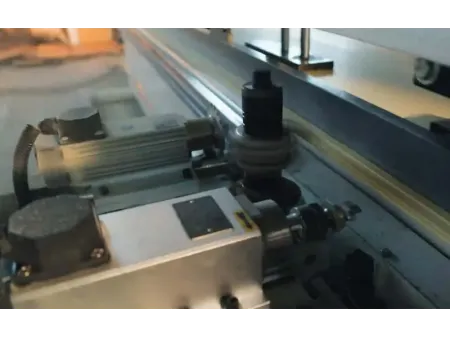

Equipped with two cutters, enabling simultaneous machining of male and female grooves for versatile panel assembly solutions.

Specifications

Model	3300mm Type	4200mm Type
Max. working length	3300mm	4200mm
Working width	Not limited	Not limited
Working thickness	0-60mm	0-60mm
Feeding speed	15-30m/min (variable frequency speed control)	15-30m/min (variable frequency speed control)
Spindle power	5.5kW	5.5kW
Cutter motor power	2.2kW	2.2kW
Saw motor power	1.1kW (speed 2800r/min)	1.1kW (speed 2800r/min)
Spindle speed	12000r/min	12000r/min
Reducer power	1.1kW	1.1kW
Servo motor power	0.75kW×3pcs 1kW	0.75kW×3pcs 1kW
Total power	13kW	13kW
Spindle diameter	Ø35mm	Ø35mm
Dust suction inlet diameter	100mm×4	100mm×4
Power supply	380V/50Hz 3phase	380V/50Hz 3phase
Machine dimensions	4300×1200×1400mm	5400×1200×1400mm
Machine weight	Approx. 1500kg	Approx. 1800kg
