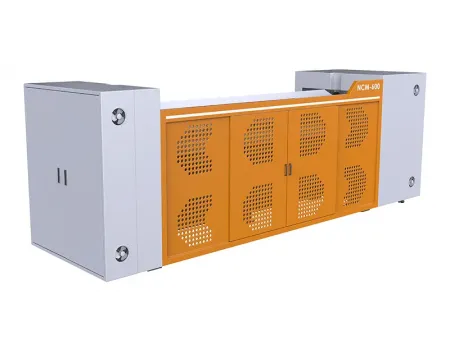

NCM-ZB

CNC bending machine for side bending of metal door panels

NCM-ZB CNC steel door panel side bending machine can be used in metal door production line to form sides of door panels, including lock side/ hinge side on front and back panels. It can complete bending operation with a bending length of 1mm to a maximum of 4200mm. During the positive and reverse folding process, there is no need for manual intervention in reversing, further improving production efficiency.

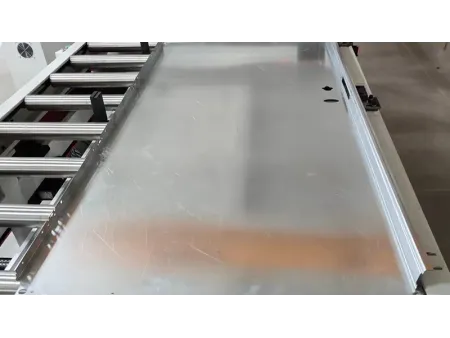

Steel Door Panel
Applications

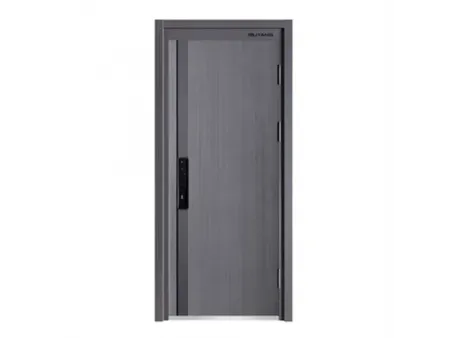

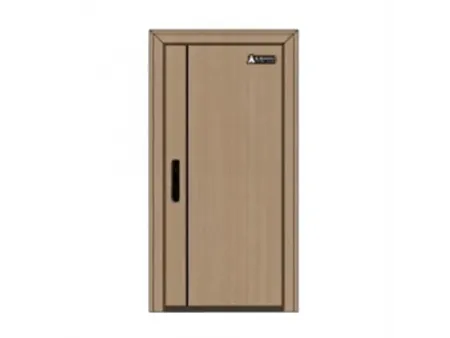

  • Security doors

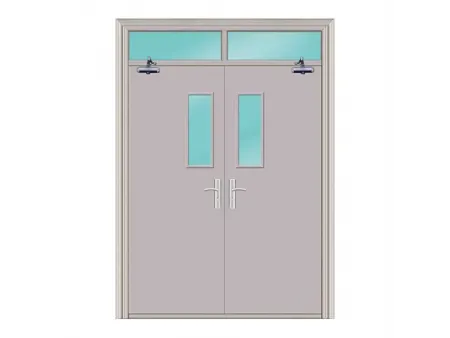

  • Fire-rated doors

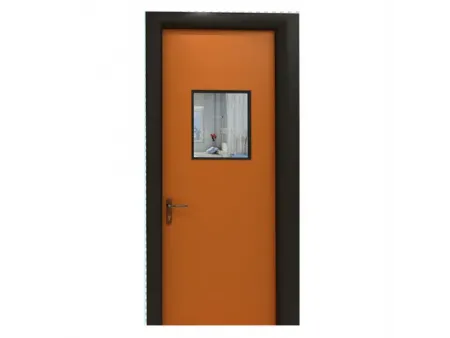

  • Healthcare/hospital doors
  • Cleanroom doors
Technical Parameters
Item NCM-1600 NCM-2600 NCM-3200 NCM-4200
Bending length 1600mm 2600mm 3200mm 4200mm
Material thickness 1mm 1mm 1mm 1mm
Working height 780mm 840mm 885mm 885mm
Avoidance height 120mm 100mm 100mm 100mm
Folding tool working range 100mm 100mm 100mm 100mm
Open height 130mm 200mm 250mm 250mm
Pivot adjustment range 0mm 0mm ±10mm 1±10mm
Axis number 7 7 8 8
Power 15kW 22kW 23kW 25kW
Dimensions 2850*1400*1600mm 2850*1400*1600mm 2850*1400*1600mm 2850*1400*1600mm
Weight 2500kg 4500kg 6500kg 7500kg
Features
  • An 8-axis full servo CNC system ensures fully CNC programming.
  • Automatic positive and reverse folding functions can be realized without manual intervention in reversing.
  • The upper tool and folding tool can be combined with a 10mm increment as needed to adapt to various sizes.
  • The maximum folding angle for both positive and reverse folding can reach 150°.
