Crawler Excavator ZG065S

Request a Quote

View All: http://cn-changlin.com/2-1-crawler-excavator.html

ZG065S crawler excavator adopts imported engine that meets Class III emission regulations, which is powerful, durable and more energy-efficient. It has high working efficiency and outstanding cost performance.

Operating weight: 5960KG
Rated power: 36kW
Bucket capacity: 0.22m³

Model	ZG065S
Length×width×height (mm)	5855×1880×2610
Operating weight (kg)	5960
Rated bucket capacity(m³)	0.22
Max. digging depth (mm)	3850
Max. digging radius (mm)	6200
Max. digging height (mm)	5785
Max. dumping height (mm)	4075
Bucket digging force (kN)	48
Stick digging force(kN)	29
Gradeability (%)	70
Diesel engine	Kubota V2607T/WeiChai WP3.2
Rated output (kW)	36/36.8

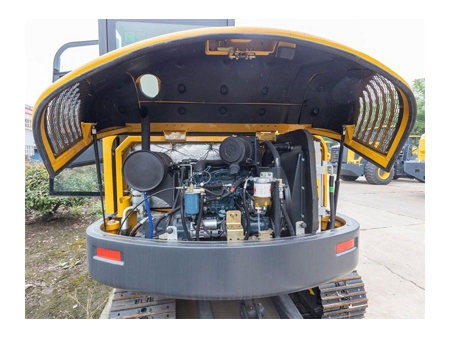

Kubota/WEICHAI engine conforms to China-III emission regulation and features strong power, low fuel consumption, and prominent performance, and the aluminum paralleling radiator features good heat dissipation performance.

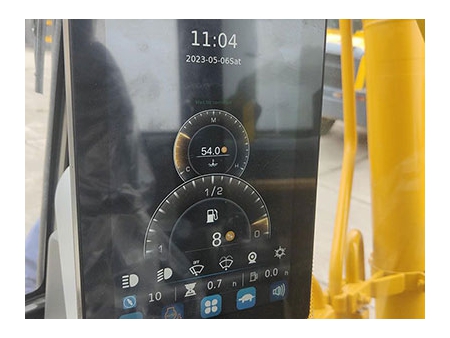

The crawler excavator adopts an electro-mechanically integrated intelligent electronic control system with proprietary intellectual property rights. The multi-functional LCD display can realize the data acquisition and transmission, orientation, control, protection, and remote firmware upgrade and achieve high intelligent control.
All-new cab comes with broader vision field and more reasonable space layout. The air-cushioned seats and the ergonomic control system realize simpler and more comfortable operations and minimize the driver’s fatigue.

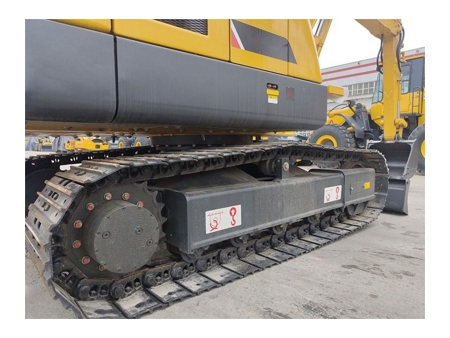

Equipped with highly reliable traveling mechanism and working device, the application of strength calculation, finite element analysis, and new structures and new materials for the structural parts significantly improves the reliability.
It features convenient repairs and maintenances. The application of full-opening front and rear hoods and side gates and the central lubrication system for slewing system realizes convenient and efficient maintenances and reduces the maintenance costs.
