Detector Response Measurement System
Request a Quote

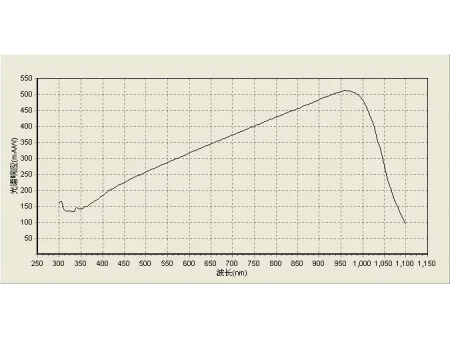

Measurement for the spectral response curve of Si detector in real time.7-DRSpec
Used to measure spectral response and quantum efficiency of detectors
Detectors are optical transducers made of materials exhibiting photoelectric effects. Given the diverse spectral selectivity of materials, testing the spectral response of detectors holds significant importance across production, inspection, application, and research. Our system enables precise measurement of detector spectral response and quantum efficiency, enhancing performance evaluation and advancing research endeavors.
Specifications
- Spectral range: Selectable within 200 to 2500nm
- Wavelength accuracy: ±0.2nm
- Spectral resolution: ±0.1nm
- Spectral bandwidth: Adjustable from 0.2 to 10nm
- Photocurrent drift: Less than 0.04% per hour
- System repeatability: 1%
