EJ Series High/Low Temperature & Humidity Test Chamber

Request a Quote

Website: http://testchamber-en.com/2-1-high-low-temperature-humidity-test-chamber.html

Environmental simulation chamber for testing materials by simulating conditions at desired temperature and humidity levels

These chambers provide an economical option for simulating a variety of temperature and humidity conditions. They are suitable for high- and low-temperature tests, constant climate exposure, and alternating cycles to check how materials and components respond to changing environments.

Features

Quiet design with maximum noise levels of 60 dB(A) or less
Stable operation, low failure rates, and excellent cost-effectiveness

1 cable port (Ø100 mm) with grey flexible rubber stopper and cover

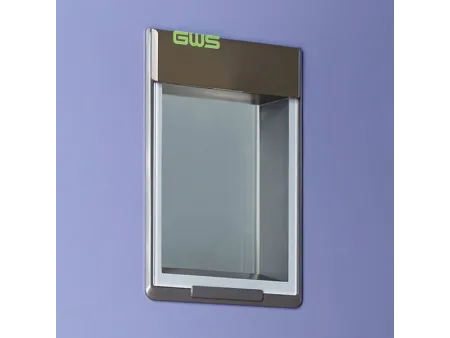

1 observing window (insulating glass with transparent heating film)
4 caster wheels
4 leveling feet
2 sets of specimen racks
1 sample power control terminal
1 RS-485 communication port
1 RJ-45 Ethernet port
USB port

Glass door with integrated access ports

Technical Parameters

Model ER/EL/ESL (with humidity control) EM/EU/EG (without humidity control)			ER/M-02J	ER/M-04J	ER/M-10J	EL/U-01J	EL/U-02J	EL/U-04J	EL/U-10J	ESL/G-01J	ESL/G-02J	ESL/G-04J	ESL/G-10J
Chamber volume (L)			200	400	1000	100	200	400	1000	100	200	400	1000
Performance	Temperature range		-20～ 150℃ (180℃)			-40～ 150℃ (180℃)				-70～ 150℃ (180℃)
	Humidity range (only models with humidity control)		25～98%RH/(20～85)℃
	Temperature fluctuation		≤0.5℃
	Temperature deviation		±2.0℃
	Humidity deviation (only models with humidity control)		±3.0%RH
	Temperature rise rate		-20→ 150℃			-40→ 150℃				-70→ 150℃
	Temperature rise rate		≤60min
	Temperature drop rate		20→-20℃			20→-40℃				20→-70℃
	Temperature drop rate		≤30min		≤45min	≤60min	≤45min	≤60min	≤65min	≤80min	≤65min		≤70min
Internal dimensions (mm)		W	500	600	1000	400	500	600	1000	400	500	600	1000
		H	750	850	1000	500	750	850	1000	500	750	850	1000
		D	600	800	100`0	500	600	800	1000	500	600	800	1000
External dimensions (without protrusion) (mm)		W	910	1010	1410	810	910	1010	1410	810	910	1010	1410
		H	1786	1886	2036	1536	1786	1886	2036	1536	1786	1886	2036
		D	1173	1373	1588	1173	1173	1373	1588	1173	1173	1373	1588
Power supply			380V (three phase four wire protective grounding wire)
Condensing method			Air-cooled/water-cooled (Models ending with “A” are configured as air-cooled,while those ending with “W” are water-cooled versions. For example,ER-02JA refers to an air-cooled chamber,and ER-02JW indicates a water-cooled chamber.)

For air-cooled models, performance specifications are based on an ambient temperature of 25 °C and relative humidity of ≤85% measured with the chamber empty. For water-cooled models, reference conditions are an ambient temperature between 15 °C and 35 °C, relative humidity of ≤85%, and cooling water temperature of ≤ 28℃, also measured without test samples inside the chamber.
