MCB Series High/Low Temperature & Humidity Test Chamber
Request a Quote
Environmental simulation chamber for testing materials by simulating conditions at desired temperature and humidity levels
These compact high/low temperature and humidity test chambers are built to achieve very low temperatures without taking up much space. Each testing unit integrates an upgraded refrigeration system that helps lower energy consumption and maintain stable performance during extended test cycles. The design also supports precise control over temperature and humidity, making it suitable for a variety of demanding applications.
Typical Test Applications
- High-temperature exposure tests
- Low-temperature performance testing
- Cycles alternating between high and low temperatures
Standard Configuration
- 1 cable port (Ø100 mm), supplied with grey flexible rubber plug and cover

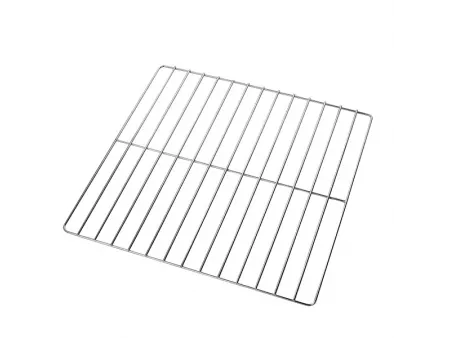

- 2 sets of specimen racks
- 1 observation window
- Caster wheels
- 1 sample power control terminal
1 RS-485 communication port
1 RJ-45 Ethernet port - Hour meter
- USB port
Features
- Compact design with ultra-low temperature capability and a broad operating range, making it practical for labs or production spaces with limited floor area
- Newly upgraded cooling and control systems that help reduce energy consumption and support environmentally responsible operation
- Low noise during operation, staying under 59 dB(A). When running steady-state conditions, this test chamber allows the temperature change rate to be fine-tuned to match specific test requirements
Technical Parameters
| Model | | | |
| Chamber volume (L) | 60 | ||
| Performance | Temperature range | -80~ 150℃ (180℃) | |
| Temperature fluctuation | 0.5℃ | ||
| Temperature deviation | ±2.0℃ (>100℃) ±1.5℃ (≤100℃) | ||
| Temperature rise rate | 20→ 150℃≤25min | ||
| Temperature drop rate | 20→-70℃≤55min | ||
| Max. temperature change rate | Rise≥6℃/min | ||
| Drop≥2℃/min | |||
| Internal dimensions (mm) | W400× H375 × D400 | ||
| External dimensions (without protrusion) (mm) | W905 × H1284 × D605 | ||
| Power supply | 220V (single phase protective grounding wire) | 380V (three phase four wire protective grounding wire) | |
| Condensing method | Air-cooled | ||
Performance values are measured with the chamber empty, at an ambient temperature of 25 °C and relative humidity up to 85%.
