Soft Armor Ballistic Fabric
Ballistic Fabric / Soft Armor Ballistic Fabric / Bulletproof Armor

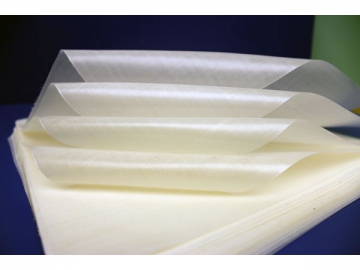

TYZ’s WB-532 bulletproof sheet is made of UHMWPE fibers independently developed in house. The raw material consists of two uni-directional arranged fiber webs that overlap at a 90° angle and are then laminated with a special matrix of materials using specific technology. The outward appearance is a white textile fiber, thinly sliced, and primarily used in soft body armor. This body armor is soft and lightweight, making it comfortable while still providing an outstanding level of protection from shooting or other impacts in a multitude of environments. The soft armor bulletproof vest features an excellent resistance to humidity, alkali and strong acids, as well as a resistance to UV rays and aging. The bulletproof effect significantly reduces the sunken deformations on the back found in traditional vests, protecting the wearer from large blunt force trauma caused by a large sunken deformation.
| Item | Area Density | Thickness | Route Size |
| WB-532 WB-674 | 130±8g/㎡ 160±8g/㎡ | 0.14±0.02㎜ 0.16±0.02㎜ | 1.2m×100m 1.2m×100m |
Protection Performance:
Can achieve NIJ IIIA 9mm.
Can achieve NIJ IIIA .44magmum
Main Applications:
Light soft body armor for police, armed police, law-executor, senior officer, leaders, other law enforcement officials
