Stainless Steel Equipment Legs
Constructed from stainless steel 201/304, our adjustable equipment legs can support and elevate your commercial kitchen equipment to the proper height. This ensures safe and secure performance.

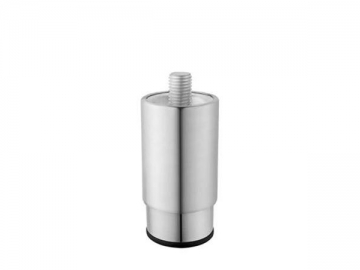

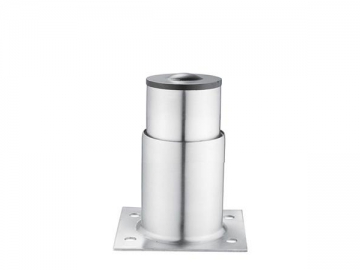

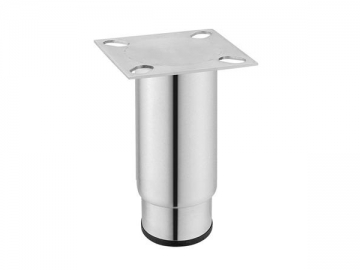

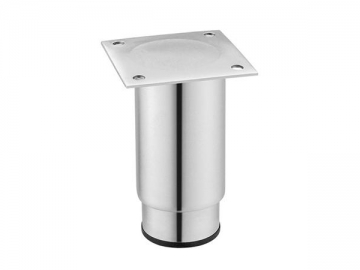

These equipment legs feature a hollow structure, making them lightweight with a strong load capacity. They are internally threaded with a nylon insert. Typically, the top of the equipment is furnished with a welded mounting plate or threaded stud. The common type of threaded stud provided is 17mm (nut size) x M10 (internal thread). The standard plate dimension is 89x89x2mm and hole diameter 6/8mm. We can offer custom mounting plates with your desired materials, dimensions, and hole diameters.

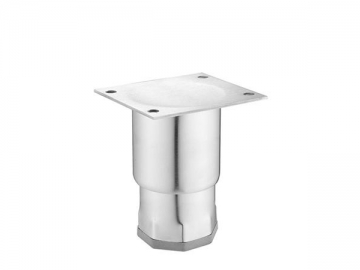

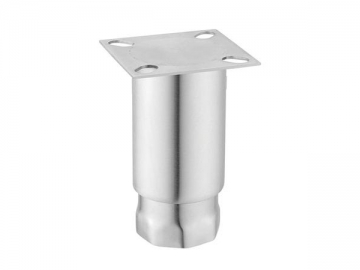

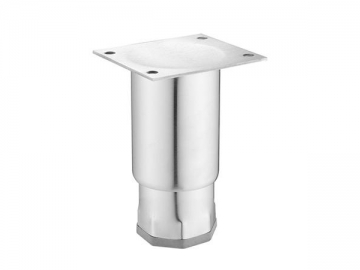

The equipment legs are used with two tubes of different diameters, such as 63+56mm round tubing or 56+48mm round tubing. The foot of the equipment leg can be flexibly designed with a stainless steel octagonal foot, 3mm/8mm plastic octagon foot and plastic round foot.
The standard adjustment range is commonly 50mm or 60mm. The product height can be minimized to 60mm. The static load rating is 600kgs.
- Model: E51126-130
Material: Stainless steel 201/304
Tubing diameter: 56+48mm
Top: Stainless steel plate
Foot: Steel armored octagon foot
Load ratings: 500kgs
Standard adjustment: 50mm -
- Model: E51121-130
Material: Stainless steel 201/304
Tubing diameter: 56+48mm
Top: Stainless steel plate
Foot: Steel armored octagon foot
Load ratings: 500kgs
Standard adjustment: 50mm
-
- Model: E51122-130
Material: Stainless steel 201/304
Tubing diameter: 56+48mm
Top: Stainless steel plate
Foot: 5mm plastic round foot
Load ratings: 500kgs
Standard adjustment: 50mm
-
- Model: E31115
Material: Stainless steel 201/304
Tubing diameter: 56+48mm
Top: Stainless steel plate
Foot: 8mm grey plastic octagon foot
Load ratings: 500kgs
Standard adjustment: 50mm
-
- Model: E51152-130
Material: Stainless steel 201/304
Tubing diameter: 56+48mm
Top: Stainless steel plate
Foot: 5mm plastic round foot
Load ratings: 500kgs
Standard adjustment: 50mm
-
- Model: E51122-200
Material: Stainless steel 201/304
Tubing diameter: 56+48mm
Top: Stainless steel plate
Foot: 5mm plastic round foot
Load ratings: 500kgs
Standard adjustment: 50mm
-
- Model: E51111-300
Material: Stainless steel 201/304
Tubing diameter: 56+48mm
Top: Stainless steel plate
Foot: 5mm plastic round foot
Load ratings: 500kgs
Standard adjustment: 50mm
-
- Model: E51112-260
Material: Stainless steel 201/304
Tubing diameter: 56+48mm
Top: Stainless steel plate
Foot: Stainless steel octagon foot
Load ratings: 500kgs
Standard adjustment: 50mm
-

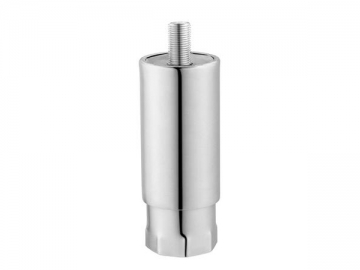

- Model: E376
Material: Stainless steel 201/304
Tubing diameter: 56+48mm
Top: Threaded stud
Foot: Steel armored octagon foot
Load ratings: 500kgs
Standard adjustment: 50mm
-
- Model: E272
Material: Stainless steel 201/304
Tubing diameter: 56+48mm
Top: Threaded stud
Foot: 5mm plastic round foot
Load ratings: 500kgs
Standard adjustment: 50mm
-
- Model: E31122
Material: Stainless steel 201/304
Tubing diameter: 63+56mm
Top: Stainless steel plate
Foot: 5mm plastic round foot
Load ratings: 650kgs
Standard adjustment: 50/60mm
-
- Model: E21112.3
Material: Stainless steel 201/304
Tubing diameter: 63+56mm
Top: Stainless steel plate
Foot: plastic round foot
Load ratings: 650kgs
Standard adjustment: 50/60mm
-
- Model: E31116
Material: 63+56mm
Tubing diameter: 56+48mm
Top: Stainless steel plate
Foot: Stainless steel octagon foot
Load ratings: 650kgs
Standard adjustment: 50/60mm
-
- Model: E11115
Material: Stainless steel 201/304
Tubing diameter: 63+56mm
Top: Stainless steel plate
Foot: 8mm grey plastic octagon foot
Load ratings: 600kgs
Standard adjustment: 50/60mm
-
- Model: E21123
Material: Stainless steel 201/304
Tubing diameter: 63+56mm
Top: Stainless steel plate
Foot: Stainless steel flange foot (with hole)
Load ratings: 650kgs
Standard adjustment: 50/60mm
-
- Model: E31124
Material: Stainless steel 201/304
Tubing diameter: 63+56mm
Top: Stainless steel plate

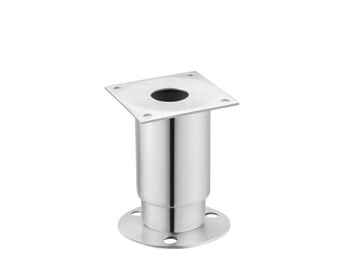

Foot: Stainless steel flange foot (without hole)
Load ratings: 650kgs
Standard adjustment: 50/60mm
-
- Model: E272
Material: Stainless steel 201/304
Tubing diameter: 63+56mm
Top: Threaded stud
Foot: 5mm plastic round foot
Load ratings: 650kgs
Standard adjustment: 50/60mm
-
- Model: E282
Material: Stainless steel 201/304
Tubing diameter: 63+56mm
Top: Threaded
Foot: 5mm plastic round foot
Load ratings: 650kgs
Standard adjustment: 50/60mm
- Model: E31112-200
Material: Stainless steel 201/304
Tubing diameter: 63+56mm
Top: Stainless steel plate
Foot: 5mm plastic round foot
Load ratings: 650kgs
Standard adjustment: 50/60mm - Model: E31116-260
Material: Stainless steel 201/304
Tubing diameter: 63+56mm
Top: Stainless steel plate
Foot: 5mm plastic round foot
Load ratings: 650kgs
Standard adjustment: 50/60mm
