Heavy-Duty Stainless Steel Adjustable Equipment Legs

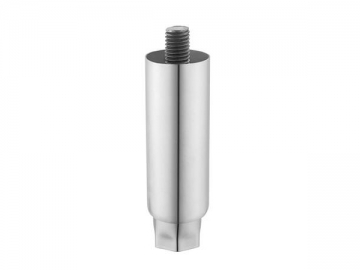

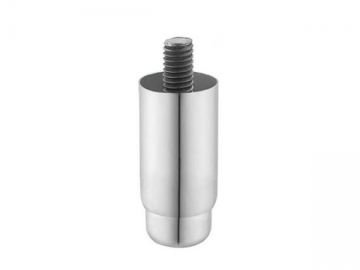

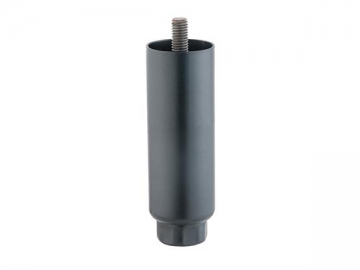

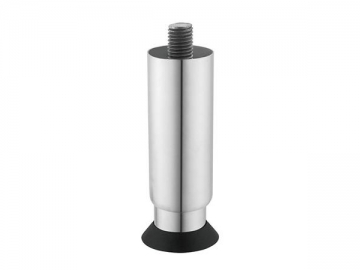

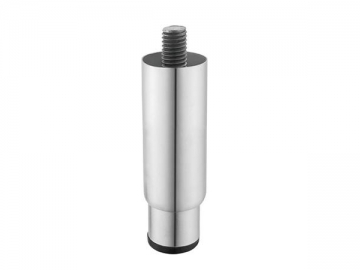

Our heavy-duty equipment legs have a strong net load-bearing capacity up to 800kgs. They are designed to support and adjust heavy-duty commercial kitchen equipment such as refrigerators, electric furnaces, dishwashers, ice machines, and more.
Generally, the top is mounted with a threaded stud. There are a variety of threaded studs available such as M20, M16 and M12 to suit your commercial kitchen equipment needs.
The top can also be furnished with a galvanized mounting plate, stainless steel plate or welded mounting plate. According to your individual needs, we can design and produce fully customized mounting plates with your desired materials, dimensions, and hole diameters. The foot of the equipment leg can be flexibly designed with a stainless steel hexagonal foot, plastic cone foot and plastic round foot.
Heavy-duty equipment legs are made of stainless steel 201/304 with 1.0mm wall thickness. The tubing diameters are commonly 32+25mm, 40+32mm, 50.8+42mm and 63+56mm. The adjustment range is 20-100mm.
- Model: A105621
Material: Stainless steel 201/304
Tubing diameter: 25mm
Top: Mounting stud
Foot: Hexagonal
Load ratings: 300kgs -
- Model: A125X-01
Material: Stainless steel 201/304
Tubing diameter: 32+25mm
Load ratings: 500kgs
-
- Model: A125X-02
Material: Stainless steel 201/304
Tubing diameter: 32+25mm
Load ratings: 500kgs
-
- Model: A125X-03
Material: Stainless steel 201/304
Tubing diameter: 32+25mm
Load ratings: 500kgs
-
- Model: A951
Material: Stainless steel 201/304
Tubing diameter: 40+32mm
Top: Mounting stud
Foot: Hexagonal
Load ratings: 600kgs
Adjustment range: 20-60mm
-
- Model: A952
Material: Stainless steel 201/304
Tubing diameter: 40+32mm
Top: Mounting stud
Foot: Round with 5mm plastic base
Load ratings: 600kgs
Adjustment range: 20-60mm
-
- Model: A954
Material: Stainless steel 201/304
Tubing diameter: 40+32mm
Load ratings: 800kgs
Adjustment range: 20-60mm
-
- Model: A9510
Material: Stainless steel 201/304
Tubing diameter: 40+32mm
Top: Mounting stud
Foot: Round with plastic base
Load ratings: 600kgs
Adjustment range: 20-60mm
-
- Model: A93111
Material: Stainless steel 201/304
Tubing diameter: 40+32mm

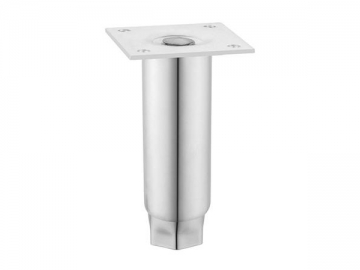

Top: Galvanized square plate
Foot: Hexagonal
Load ratings: 600kgs
Adjustment range: 20-60mm
-

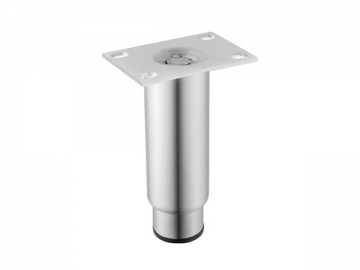

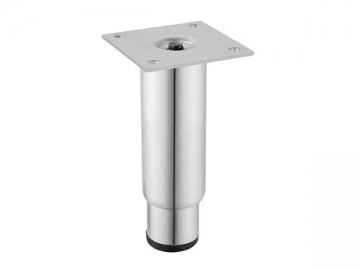

- Model: A93112
Material: Stainless steel 201/304
Tubing diameter: 40+32mm
Top: Galvanized square plate
Foot: Round with 5mm plastic base
Load ratings: 600kgs
Adjustment range: 20-60mm
-

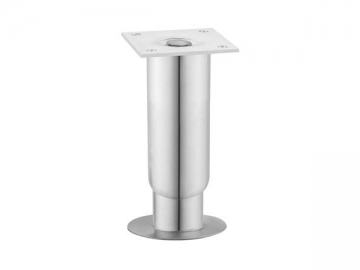

- Model: A93114
Material: Stainless steel 201/304
Tubing diameter: 40+32mm
Top: Galvanized square plate

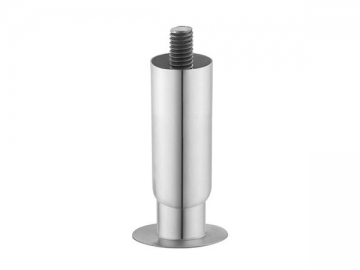

Foot: SS flange base
Load ratings: 600kgs
Adjustment range: 20-60mm
-

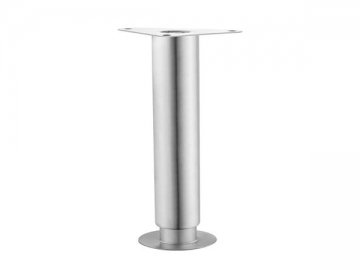

- Model: A93314(300)
Material: Stainless steel 201/304
Tubing diameter: 40+32mm
Top: Galvanized triangle plate
Foot: SS flang base
Load ratings: 600kgs
Adjustment range: 20-60mm
-

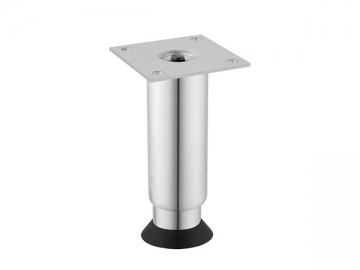

- Model: A931110
Material: Stainless steel 201/304
Tubing diameter: 40+32mm
Top: Galvanized square plate
Foot: plastic cone base
Load ratings: 600kgs
Adjustment range: 20-60mm
-
- Model: A13132
Material: Stainless steel 201/304
Tubing diameter: 50.8+42mm
Top: Galvanized square plate
Foot: Round with 5mm plastic base
Load ratings: 800kgs
Adjustment range: 20-60mm
-

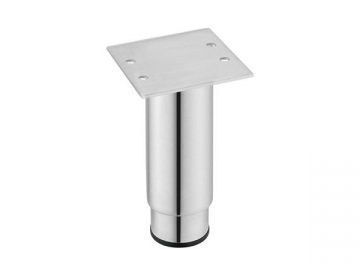

- Model: A12112
Material: Stainless steel 201/304
Tubing diameter: 50.8+42mm
Top: SS square plate
Foot: Round with 5mm plastic base
Load ratings: 800kgs
Adjustment range: 20-60mm
-
- Model: A131113(B)
Material: Stainless steel 201/304
Tubing diameter: 50.8+42mm
Top: Mounting stud
Foot: Hexagonal
Load ratings: 800kgs
Adjustment range: 20-60mm
- Model: A131114
Material: SS#201/SS#304
Tubing diameter: 50.8+42mm
Top: Mounting stud
Foot: Round plastic foot
Load ratings: 800kgs
Adjustment range: 20-60mm - Model: A131110
Material: Stainless steel 201/304
Tubing diameter: 50.8+42mm
Top: Mounting stud
Foot: Plastic flanged toe
Load ratings: 800kgs
Adjustment range: 20-60mm - Model: A13114
Material: Stainless steel 201/304
Tubing diameter: 50.8+42mm
Top: Mounting stud
Foot: SS flang base
Load ratings: 800kgs
Adjustment range: 20-60mm - Model: A1(3+9)3
Material: Stainless steel 201/304
Tubing diameter: 50.8+42mm
Top: Flared, mounting stud
Foot: SS flang base
Load ratings: 800kgs
Adjustment range: 20-60mm - Model: A181
Material: Stainless steel 201/304
Tubing diameter: 50.8+42mm
Top: Mounting stud
Foot: Hexagonal
Load ratings: 800kgs
Adjustment range: 20-60mm - Model: A1(1+5)2
Material: Stainless steel 201/304
Tubing diameter: 50.8+42mm
Top: Mounting stud and welded mounting plate
Foot: 5mm Round plastic foot
Load ratings: 800kgs
Adjustment range: 20-60mm - Model: A121217-150
Material: Stainless steel 201/304
Tubing diameter: 50.8+42mm
Top: SS square plate
Foot: Hexagonal
Load ratings: 800kgs
Adjustment range: 20-60mm - Model: A1(7+9)3
Material: Stainless steel 201/304
Tubing diameter: 50.8+42mm
Top: Flared top and flush stud
Foot: SS flang base
Load ratings: 800kgs
Adjustment range: 20-60mm - Model: A1(7+9)1
Material: Stainless steel 201/304
Tubing diameter: 50.8+42mm
Top: Flared top and flush stud
Foot: Hexagonal
Load ratings: 800kgs
Adjustment range: 20-60mm - Model: A1(7+9)10
Material: Stainless steel 201/304
Tubing diameter: 50.8+42mm
Top: Flared top and flush stud
Foot: Plastic flanged toe
Load ratings: 800kgs
Adjustment range: 20-60mm - Model: A1714
Material: Stainless steel 201/304
Tubing diameter: 50.8+42mm
Top: Flared top and flush stud
Foot: Round plastic foot
Load ratings: 800kgs
Adjustment range: 20-60mm - Model: A153
Material: Stainless steel 201/304
Tubing diameter: 50.8+42mm
Top: Mounting stud
Foot: SS flang
Load ratings: 800kgs
Adjustment range: 20-60mm - Model: A151
Material: Stainless steel 201/304
Tubing diameter: 50.8+42mm
Top: Mounting stud
Foot: Hexagonal
Load ratings: 800kgs
Adjustment range: 20-60mm - Model: A152
Material: Stainless steel 201/304
Tubing diameter: 50.8+42mm
Top: Mounting stud
Foot: 5mm Round plastic foot
Load ratings: 800kgs
Adjustment range: 20-60mm - Model: A1510
Material: Stainless steel 201/304
Tubing diameter: 50.8+42mm
Top: Mounting stud
Foot: Plastic flanged toe
Load ratings: 800kgs
Adjustment range: 20-60mm - Model: A11516
Material: Stainless steel 201/304
Tubing diameter: 63+56mm
Top: Threaded stud
Foot: Stainless steel base
Load ratings: 1000kgs
Adjustment range: 20-60mm - Model: A11515.8
Material: Stainless steel 201/304
Tubing diameter: 63+56mm
Top: Mounting stud
Foot: 8mm Octagon plastic base
Load ratings: 1000kgs
Adjustment range: 20-60mm - Model: A1152.5
Material: Stainless steel 201/304
Tubing diameter: 63+56mm
Top: Mounting stud
Foot: 5mm Round plastic foot
Load ratings: 1000kgs
Adjustment range: 20-60mm - Model: A1151.2
Material: Stainless steel 201/304
Tubing diameter: 63+56mm
Top: Mounting stud
Foot: Octagon
Load ratings: 1000kgs
Adjustment range: 20-60mm
