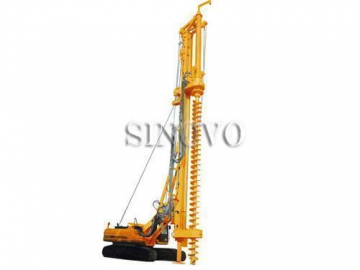

TR180W CFA Equipment

Technical Parameters
	Euro Standards	U.S. Standards
Max drilling depth	16.5m	54 ft
Max drilling diameter	800mm	32in
Engine model	CAT C-7	CAT C-7
Rated power	187KW	251HP
Max torque for CFA	90kN.m	66357lb-ft
Rotating speed	8~29rpm	8~29rpm
Max crowd force of winch	150kN	33720lbf
Max extraction force of winch	150kN	33720lbf
Stroke	12500mm	492in
Max pulling force of main winch (the first layer)	170kN	38216lbf
Max pulling speed of main winch	78m/min	256ft/min
Wire line of main winch	Φ26mm	Φ1.0in
Undercarriage	CAT 325D	CAT 325D
Track shoe width	800mm	32in
Width of crawler	3000-4300mm	118-170in
Whole machine weight	55T	55T

Drill Accessories

Drilling Buckets Series

	Euro Standards	American Standards
Dimension	400-3500 mm	15.7-138 inch

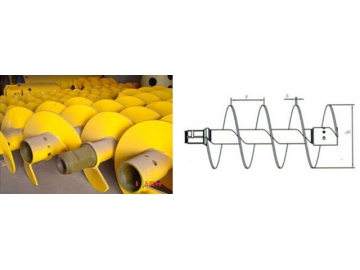

Auger Series

	Euro Standards	American Standards
Dimension	400-3500 mm	15.7-138 inch

Casing Series

	Euro Standards	American Standards
Dimension	400-3500 mm	15.7-138 inch

Core Barrel Series

	Euro Standards	American Standards
Dimension	400-3500 mm	15.7-138 inch

Casing Oscillator

	Euro Standards	American Standards
Dimension	600-3500 mm	15.7-138 inch

Short Auger

Long Auger

Double Wall Casing

Interlocking Kelly bar

Friction Kelly bar
