TR200W CFA Equipment
Request a Quote
| Item | Specification | Unit | Parameters |
| Kelly drilling | Max. nominal torque on the Kelly and casing drive | kNm | 200 |
| Max. pile diameter | mm | 1500 | |
| Max. pile diameter with casing | mm | 1200 | |
| Max. drilling depth | m | 53.5 | |
| CFA drilling | Max. drilling depth | m | 20 |
| Max. drilling diameter | mm | 880 | |
| Max. downward drilling pressure | kN | 600 | |
| Max. drilling torque | kn.m | 128 | |
| Base | Base | CAT336 | |
| Undercarriage | Overall length | mm | 7106 |
| Track shoe width | mm | 800 | |
| Overall width with extended side frames | mm | 4300 | |
| Overall width with retracted side frames | mm | 3000 | |
| Ground pressure | mpa | 0.1 | |
| Max. traveling speed | km/h | 5 | |
| Diesel engine | Model | type | C9 |
| Rated power | kw(hp) | 261 | |
| Hydraulic pumps | Main pump pressure | mpa | 35 |
| Auxiliary pump pressure | mpa | 28 | |
| Mast | Mast forward rake angle | 。 | 5 |
| Mast side rake angle | 。 | ±5 | |
| Mast backward rake angle | 。 | 15 | |
| Main Winch | Nominal line pull on 1st layer | kn | 220/170 |
| Nominal rope speed on 1st layer | m/min | 70 | |
| Rope diameter | mm | 20 | |
| Rotary drive with high speed | Max. nominal torque (real values on the Kelly bar and casing drive adapter) | KNm | 200 |
| Max. drilling speed | rpm | 56U/min | |
| Crowd system | Crowd force (pull down/pull up) (real values on the rotary drive) | kN | 210/210 |
| Crowd force (pull down/pull up) (real values on the rotary drive, in CFA operation mode) | kN | 50 | |
| Stroke of crowd winch system | mm | 15000 | |
| Weight & Dimensions | Transport width | mm | 3000 |
| Transport height | mm | 48 | |
| Transport length | mm | 16587 | |
| Weight (with standard Kelly bar) | ton | 65 | |
| Operation height | mm | 21410 | |
| Operation width | mm | 4300 | |
| Min. working radius | mm | 3570 |
Drill Accessories

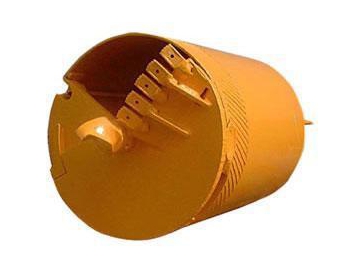

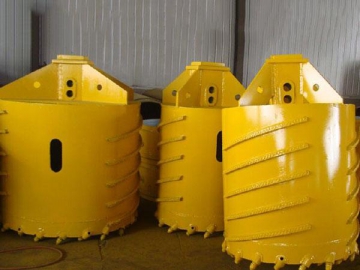

Drilling Buckets Series
| Euro Standards | American Standards | |
| Dimension | 400-3500 mm | 15.7-138 inch |

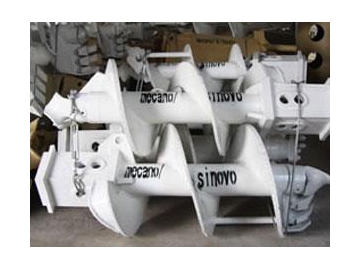

Auger Series
| Euro Standards | American Standards | |
| Dimension | 400-3500 mm | 15.7-138 inch |
Casing Series
| Euro Standards | American Standards | |
| Dimension | 400-3500 mm | 15.7-138 inch |

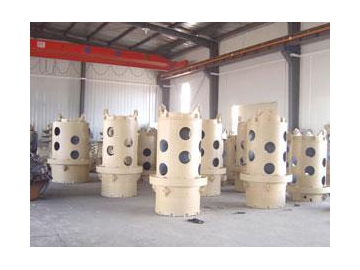

Core Barrel Series
| Euro Standards | American Standards | |
| Dimension | 400-3500 mm | 15.7-138 inch |

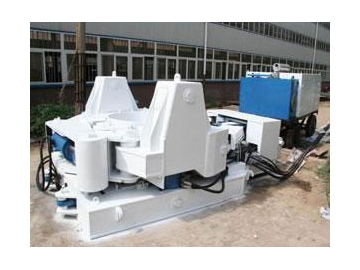

Casing Oscillator
| Euro Standards | American Standards | |
| Dimension | 600-3500 mm | 15.7-138 inch |

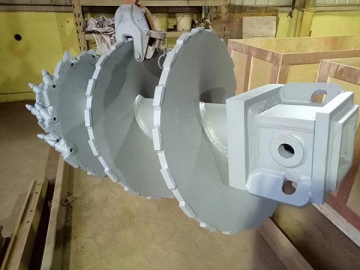

Short Auger
Long Auger

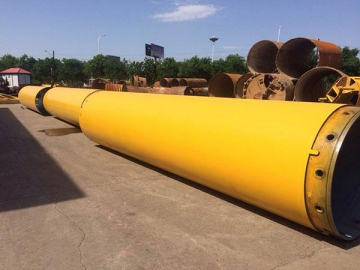

Double Wall Casing

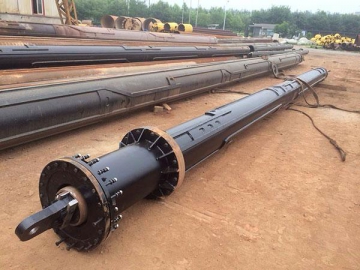

Interlocking Kelly bar

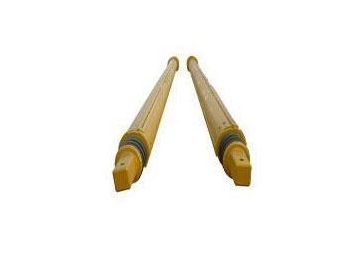

Friction Kelly bar
