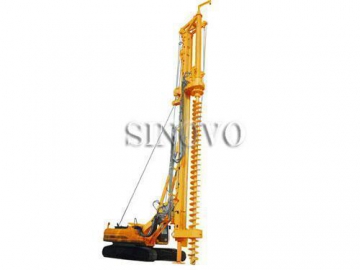

TR220W CFA Equipment

Technical Parameters
	Euro Standards	U.S. Standards
Max drilling depth	20m	66 ft
Max drilling diameter	1000mm	39in
Engine model	CAT C-9	CAT C-9
Rated power	213KW	286HP
Max torque for CFA	100kN.m	73730lb-ft
Rotating speed	6~27rpm	6~27rpm
Max crowd force of winch	210kN	47208lbf
Max extraction force of winch	210kN	47208lbf
Stroke	13500mm	532in
Max pulling force of main winch (the first layer)	200kN	44960lbf
Max pulling speed of main winch	78m/min	256ft/min
Wire line of main winch	Φ28mm	Φ1.1in
Undercarriage	CAT 330D	CAT 330D
Track shoe width	800mm	32in
Width of crawler	3000-4300mm	118-170in
Whole machine weight	65T	65T

Drill Accessories

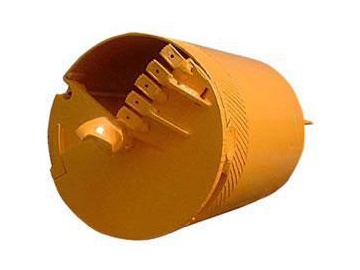

Drilling Buckets Series

	Euro Standards	American Standards
Dimension	400-3500 mm	15.7-138 inch

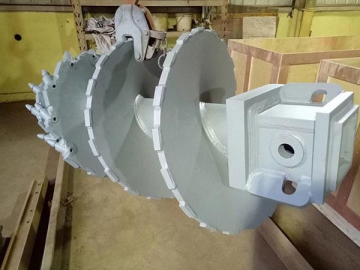

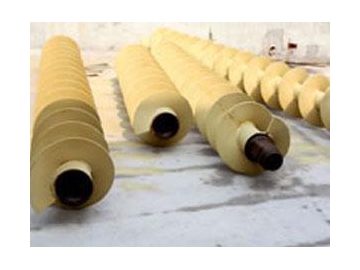

Auger Series

	Euro Standards	American Standards
Dimension	400-3500 mm	15.7-138 inch

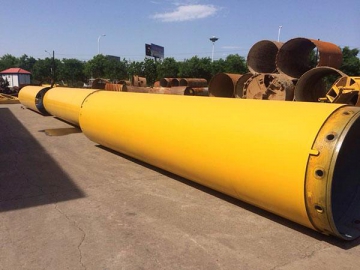

Casing Series

	Euro Standards	American Standards
Dimension	400-3500 mm	15.7-138 inch

Core Barrel Series

	Euro Standards	American Standards
Dimension	400-3500 mm	15.7-138 inch

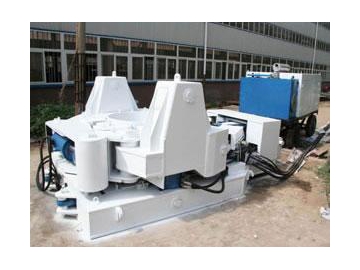

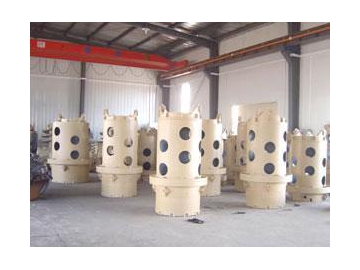

Casing Oscillator

	Euro Standards	American Standards
Dimension	600-3500 mm	15.7-138 inch

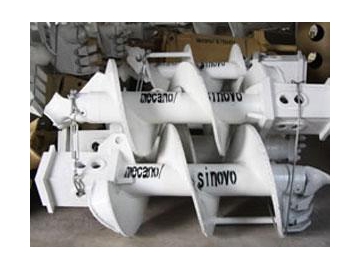

Short Auger

Long Auger

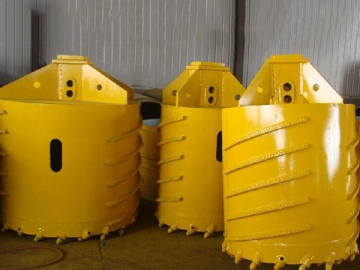

Double Wall Casing

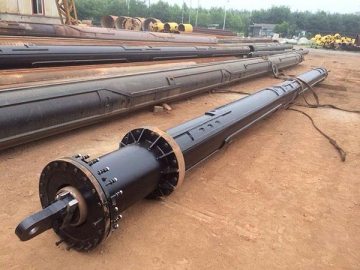

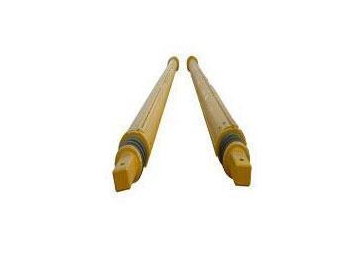

Interlocking Kelly bar

Friction Kelly bar
