MIG/MMA Welding Machine / Inverter Welder
Request a Quote

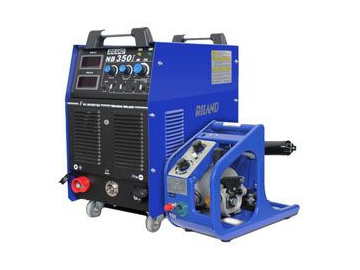

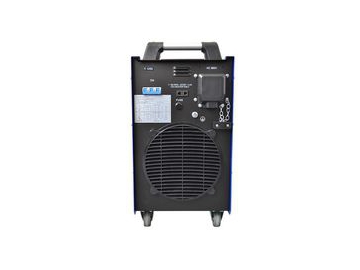

MIG 350I
Features
- IGBT inverter technology, high reliability and better arc stability;
- Dual welding processes in one machine, MIG welding and MMA welding;
- 60% duty cycle at 40℃, working well in harsh environments, ideal for users in heavy industry;
- Effective CTWD (Contact to Work Distance) for adaptive loop is less than 30mm, having the capability of all-position welding;
- Waveform control of droplet transfer, ensuring better arc stability, less spatter and good welding seam formation;
- Weld ball is removed after welding, ensuring high success rate of arc starting;
- Suitable for welding applications in the steel structure and shipbuilding industry;
Specifications
| Model | |
| Input voltage | 3P/380V±(±15%) |
| Frequency (Hz) | 50/60 |
| Rated input current (A) | 24.5 |
| Output current adjusting range (A) | MIG: 60-350 MMA: 40-350 |
| No-load voltage (V) | MIG: 17-31.5 MMA: 21.6-34 |
| Duty cycle (40℃) | 60% |
| Power factor | 0.93 |
| Efficiency (%) | 85 |
| Type of wire feeder | Panasonic style |
| Wire feeding speed (m/min) | 3-15 |
| Post-flow time (S) | 1.5±0.5 |
| Welding wire diameter (mm) | 0.8/1.0/1.2 |
| Insulation class | Class H |
| Protection grade | IP21S |
| Welding thickness (mm) | ≥0.8 |
| Net weight (kg) | 35 |
| Dimensions (L×W×H) | 550×280×545mm |
Package Included

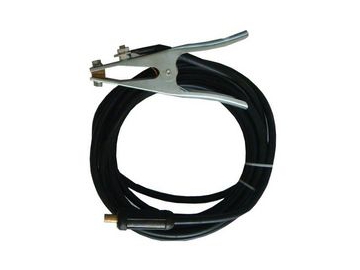

- Ground clamp & cable assembly,1 set

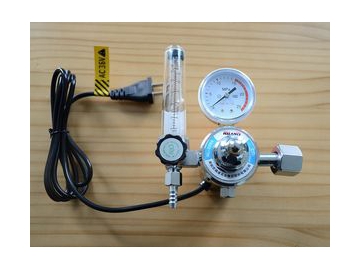

- CO2 flow meter, 1pc

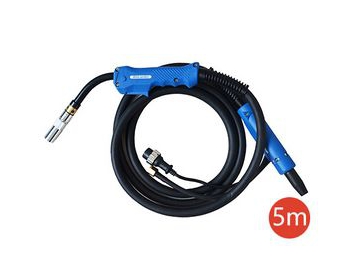

- Japanese type welding torch, 1pc

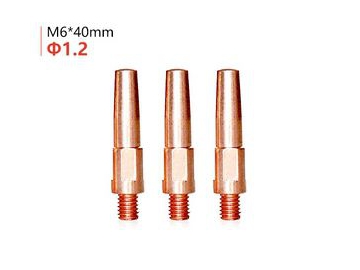

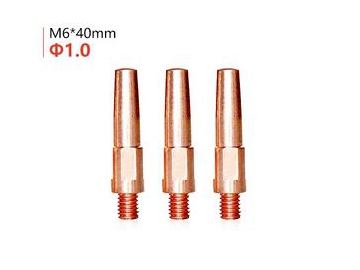

- Welding contact tip, 2pcs
- Welding contact tip, 2pcs

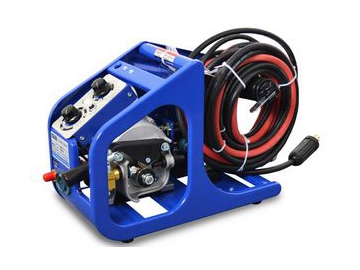

- Wire feeder, 1 unit

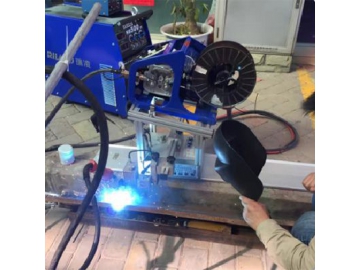

Applications
Optional Welding Accessories
Nozzle shield cup
Auto-darkening welding helmet

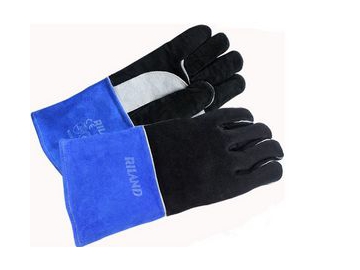

Welding gloves
ER50-6 MIG solid welding wire
