Welding Equipment

Your welding application needs are our concern, satisfying your challenges with proven performance

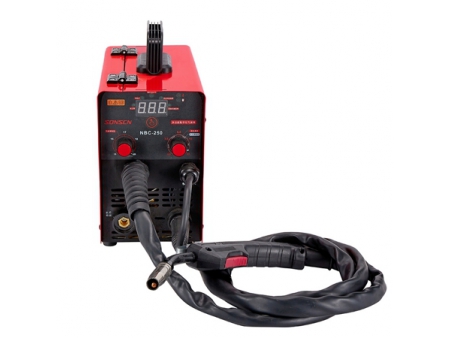

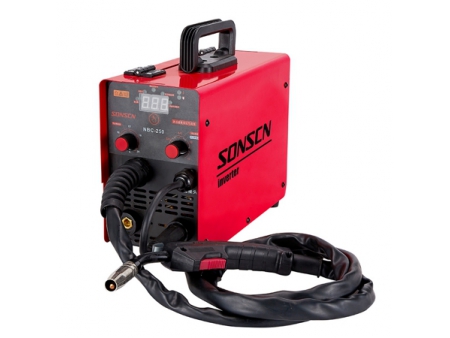

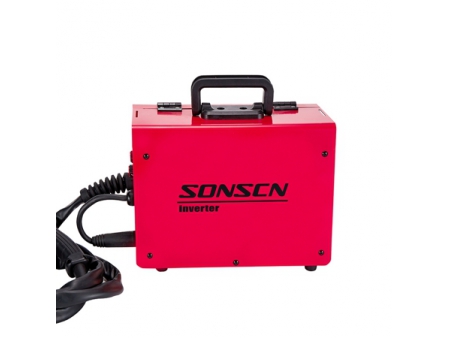

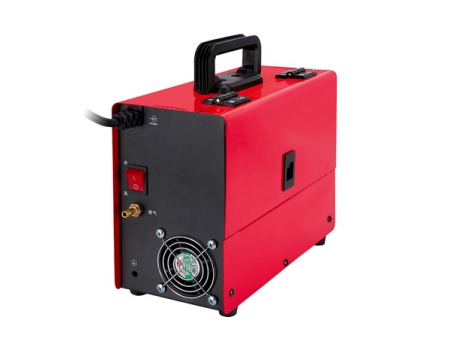

MIG/TIG/MMA 4-in-1 welder can use stick (MMA), lift TIG, gas (solid) wire MIG, gasless (flux) wire MIG. Advanced IGBT inverter technology and PWM control enables this welder to be compact, lightweight and portable, making it more convenient to carry and ideal for welding projects indoors or outdoors.

Model	Power Voltage	Rated Input Power	No-load Voltage	Current	Rated Duty Cycle	Electrode Diameter	Insulation Class	Protection Class	Dimension	Weight
MIG-120	230V土10% 50/60hz(1ph)	3.8KVA	60V	120A	60%	0.6-0.8mm	H	IP21S	311325cm	5kg
MIG-140	230V土10% 50/60hz(1ph)	4.5KVA	60V	140A	60%	0.6-0.8mm	H	IP21S	331425 cm	6kg
MIG-160	230V土10% 50/60hz(1ph)	5.2KVA	60V	160A	60%	0.6-1.0mm	H	IP21S	361528 cm	6kg
MIG-180	230V土10% 50/60hz(1ph)	6.1KVA	60V	180A	60%	0.6-1.0mm	H	IP21S	381630 cm	7kg
MIG-200	230V土10% 50/60hz(1ph)	8.4KVA	60V	200A	60%	0.6-1.2mm	H	IP21S	381630 cm	7kg

Features

Premium welding performance
it provides little splash, deep molten pool and beautiful weld shape.
Synergy control for easy use
With the synergy function, adjust the wire thickness, the voltage and wire feeding speed will automatically change. Even beginners can use it with ease.
Lift TIG capabilities
Allows for easy arc start by touching the workpiece with a tungsten electrode, starting current and shielding gas, and then quickly lifting the TIG torch, without the need of scratching.
Single PCB inverter technology
Provides high rated duty cycle and efficiency.

Applications

Aluminum alloy welding, welding process for door and window manufacturing, fence installation, etc.

If you have any questions about our welders, please email us or give us a call.
