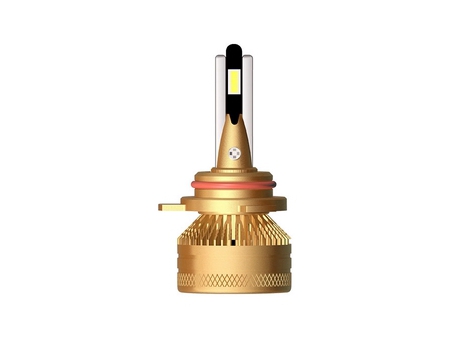

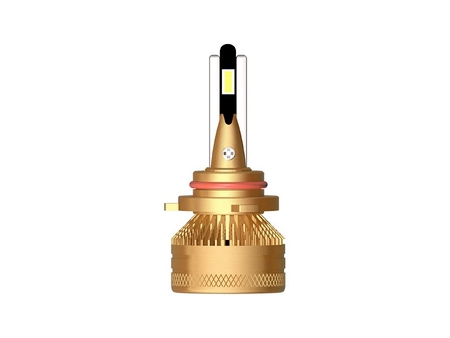

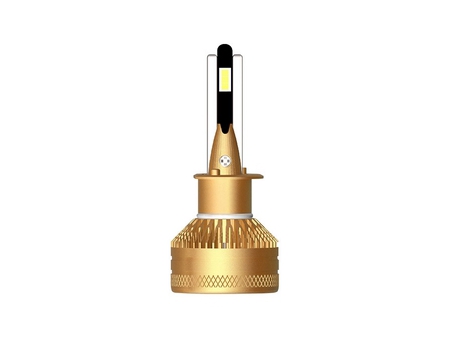

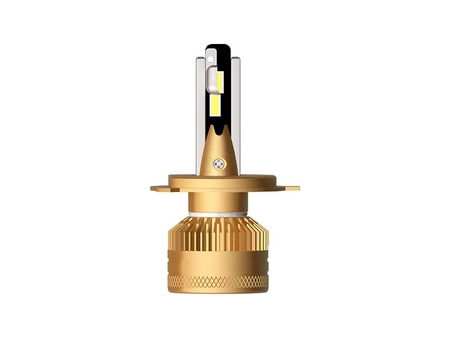

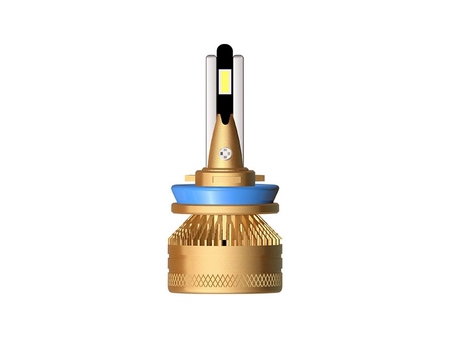

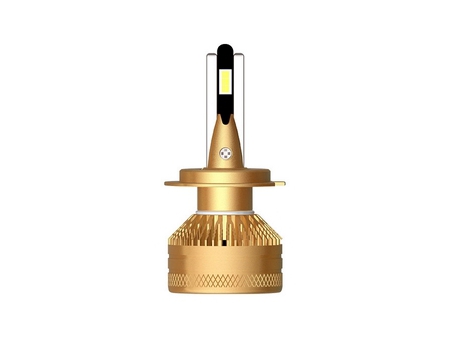

N10 Series LED Headlight Bulb
Request a Quote
Features
- Powerful and Efficient Heat Dissipation: The heat sink has a diameter of 35mm and a height of 34mm, with a power output of 55W, ensuring effective cooling for prolonged use.
- 3570 LED Chips with Dual Superconducting Heat Pipes: The bulb features 3570 LED chips, utilizing dual superconducting heat pipes and unique S-shaped cooling fins made from high-quality AL6063 material (European standard) to enhance heat dissipation.
- Advanced Heat Conduction: The double-sided 1.5mm copper base plates are expertly welded to the dual superconducting heat pipes, optimizing heat transfer. The external driver and smart temperature control system ensure protection and longevity of the LED chips.
- Compact and High-Performance Design: The patented design combines a compact, sleek look with high power. It also includes EMC and decoding functions, providing broad compatibility and high performance.
Specification
| Series | N10 | ||||||
| Model | N10 H1 | N10 H4 | N10 H7 | N10 H11 | N10 9005 | N10 9006 | N10 9012 |
| Voltage (V) | DC9-60 | ||||||
| Power (W) | 55 | ||||||
| Luminous Flux (lm) | 4500 | ||||||
| Color temperature (K) | 6500 | ||||||
| Driver | External driver | ||||||
| Fan | Yes | ||||||
