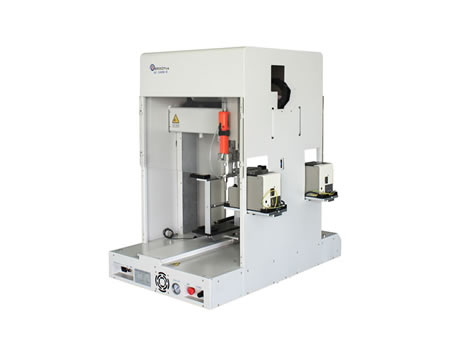

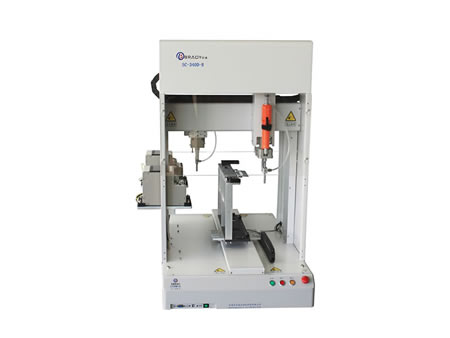

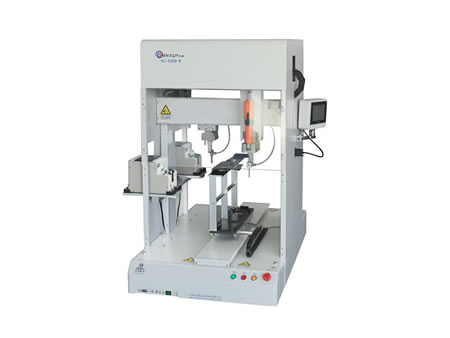

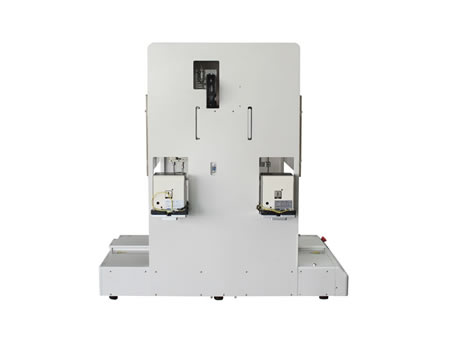

SC-340D Screw Driving Robot

Request a Quote

View All: http://automated-system.com/2-10-sc-340d-screw-driving-robot.html

SC-340D Screw driving robot is applicable to various electronic products screw locking such as smartphone, wireless telephone, calculator, GPS, sound equipment, small appliances etc.

Characteristics

The screw driving robot has an automatic detection of screw missing, screw slip teeth and floating lock.
Excellent flexibility. Equipped with universal fixture which allows this screw fastening system to be used on various products.
Excellent versatility. Screws of M1.0-M8.0 can be fastened using this machine by replacing different accessories.
The screw driving robot is compact in size and is easy to pair with a production line. Automatically screws loading in front and unloading from rear, realizing unmanned operation.
The system supports the recording of the number of turns, torque, date, time of each screw as well as the locking status judgement.
With the function of loading in front and unloading from rear to save the labor.

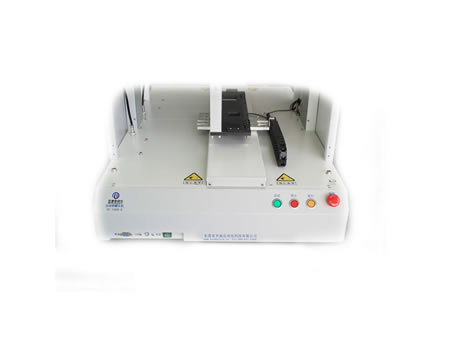

With large worktable of 500*500mm.
Adopt double Y-axis design which allows alternate operation for higher work efficiency.
Optional protective cover.

Technical parameters

Dimension: 610*1000*1000mm (L*W*H)
Working range: 450*400*70mm (X*Y*Z)
Drive mode: 6 axis precision stepping drive
Position accuracy: ±0.02mm
Guide rail: Import slid rail
Electric screwdriver: HIOS 2pcs

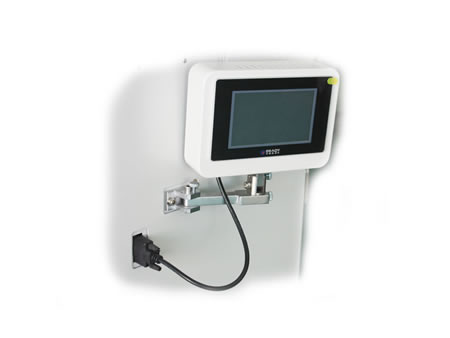

Control system: PLC Touch screen control system

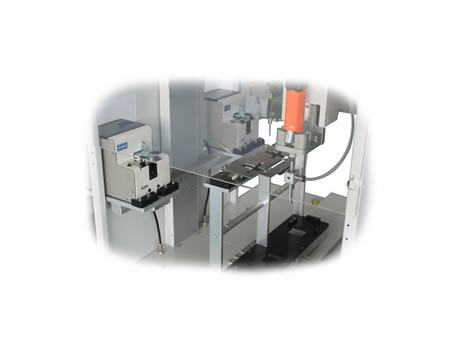

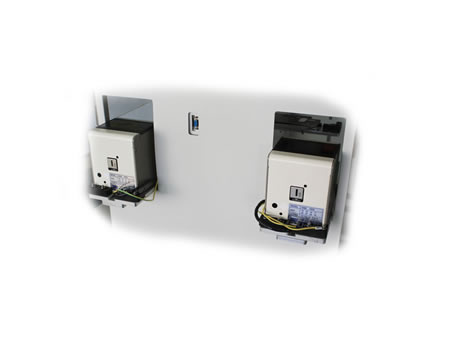

Screw feeding mode: suction type
Quantity: 2 group
Type of programming: Teaching type
Fastening speed: Less than 1.5S / pc
Program memory: 100 sets, 110 points/set (max.)
COM: USB
Power supply: 220VAC、50HZ
Air pressure: 0.4Mpa
N.W: 90kg
