Can Palletizer

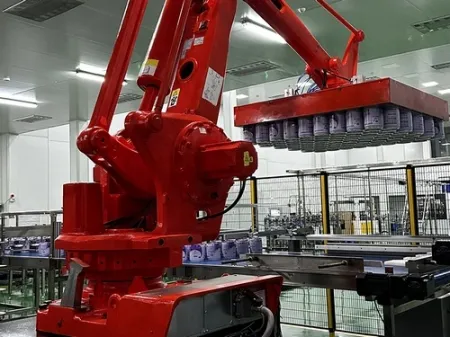

Using a magnetic robot gripper, the robotic palletizer stacks empty cans or other tinplate container products according to the stacking pattern set for your production line. It is engineered for high-speed beverage can, food can and industrial can packaging lines. The robotic palletizer includes automatic pallet dispensing, automatic full-pallet discharge and automatic layer-pad placement, and it can also connect seamlessly with a strapping machine and a stretch-wrapping machine to build a complete end-of-line packaging cell. This setup significantly reduces manual labor, increases stacking accuracy and boosts overall production efficiency.
| Equipment dimensions | L 14000 × W 8000 × H 3800 mm |
| Application scope | Empty cans and tinplate packaged products |
| Production capacity | 800–1500 cans/min |
| Can size range | Diameter 50–153 mm, height 50–270 mm (customizable) |
| Pallet size (L × W × H) | 1200 × 1000 × 140 mm (customizable) |
| Stack height | 2400 mm (customizable) |
| Compressed air | > 0.5 MPa |
| Total power | 18 kW |
- Automatic Robotic Palletizer
- Automatic Robotic Palletizer for Paint Can
- Automatic Robotic Palletizer for Milk Powder Can

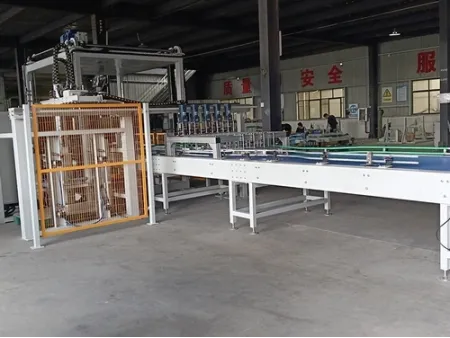

Designed for end-of-line empty can handling, this low level magnetic palletizer uses a can arranging table and magnetic pickup to stack cans onto pallets according to your required pattern. Empty pallets are fed automatically, while operators only need to place layer pads and top frames, and finished pallets are discharged automatically once stacking is complete.
When connected to a strapping machine and a stretch wrapping machine, the palletizer forms a fully integrated end-of-line cell that reduces manual handling, lowers labour cost and increases overall production efficiency on your can line.
| Applicable cans | Tinplate cans, aluminum cans |
| Can size | Diameter: 50-120mm Height: 50-200mm Customizable |
| Palletizing height | Typically ≤ 1.5m (customizable) |
| Palletizing speed | Approx. 2–3 layers/min (depending on can size and stacking pattern) |
| Control system | PLC touchscreen, supports remote control |
| Drive | Servo motor or pneumatic system |
| Power supply | 380V/50Hz (customizable) |
| Compatible pallet size | 1000×1200×120mm (customizable) |
- Automatic Low Level Can Palletizer 1
- Automatic Low Level Can Palletizer 2
The high-level empty can palletizer with automatic layer-pad loading supports tall stacks, with a typical pallet height of around 2.5 metres and higher options available on request. Optional devices can automatically place layer pads between each product layer to improve stack stability, and automatically place top frames, which reduces manual work and improves safety at the end of the production line.
For even more automation, the system can be equipped with automatic pallet infeed and discharge. When a pallet is full, it is conveyed out automatically and the next empty pallet is positioned for loading. The palletizer can also be integrated with a strapping machine and a stretch wrapping machine, creating a connected end-of-line cell that keeps your empty can handling fast, stable and labour-saving.
| Stack height | 2400 mm (customized according to machine configuration) |
| Suitable pallet size | 1100 × 1400 × 120 mm |
| Production capacity | 3 layers per minute |
| Suitable product size | Diameter 50–153 mm, height 50–270 mm |
| Suitable products | Tinplate cans, plastic bottles, glass bottles |
| Power supply | 3 × 380 V, 50 Hz, 7 kW |
| Compressed air | 0.6 MPa, 0.1 L/min |
| Control system | PLC programmable controller, photoelectric switches, limit switches and pneumatic components from well-known brands in Germany, Japan and Taiwan |
Using a vision system, the robotic pail palletizer locates paint pails on the conveyor, stacks them vertically to the required height, then grips the stacked empty pails with a clamping gripper. After a 180° rotation, the robot places each stack accurately onto the pallet, and the loaded pallets are transferred by conveyor to the stretch wrapping or strapping station for end-of-line packaging.
| Load capacity | 20 to 60 kg |
| Maximum working radius | Approx. 1500 to 2000 mm |
| Repeat positioning accuracy | ±0.05 to ±0.1 mm |
| Gripping method | Clamping on pail body (customizable) |
| Quantity per pick | 16 pails per cycle (customizable) |
| Key features | Soft grippers, anti-scratch design |
