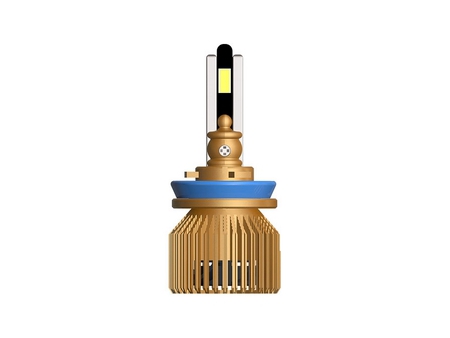

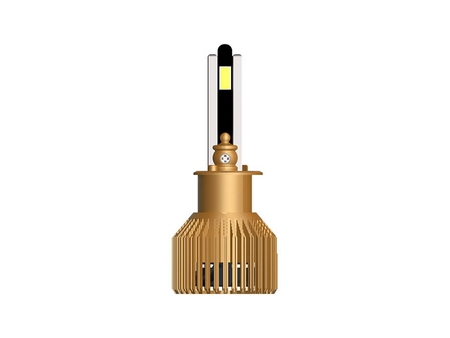

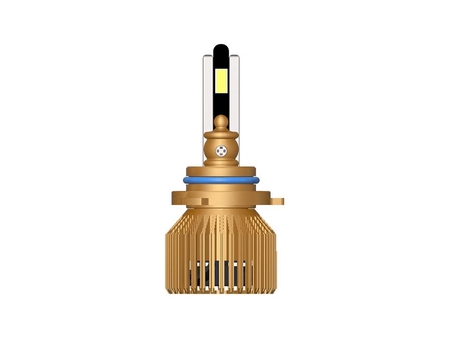

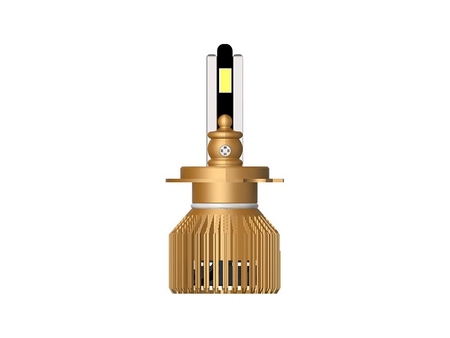

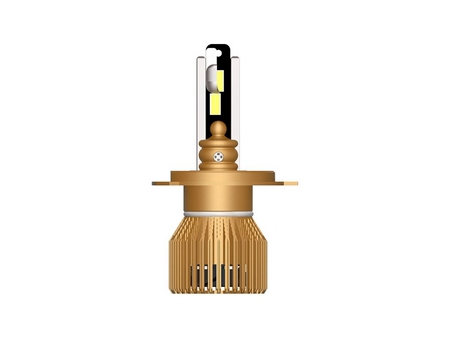

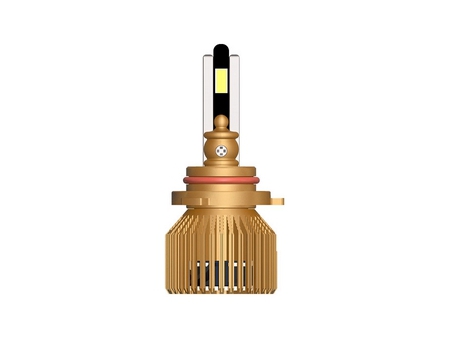

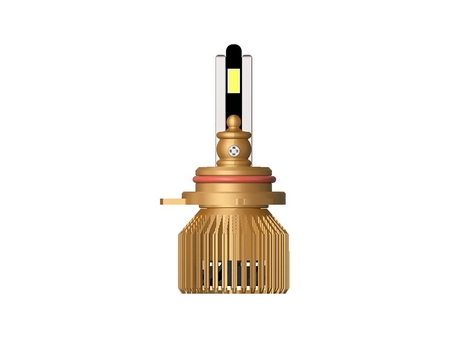

N13 Series LED Headlight Bulb

N13 Series LED Headlight Bulb
N13 Series LED Headlight Bulb
N13 Series LED Headlight Bulb
N13 Series LED Headlight Bulb
N13 Series LED Headlight Bulb
N13 Series LED Headlight Bulb
N13 Series LED Headlight Bulb
N13 Series LED Headlight Bulb
Request a Quote
Features
  • The heat sink has a diameter of 32mm and a height of 33mm, with a power output of 65W, ensuring optimal cooling for extended use.
  • Equipped with 3570 LED chips and dual superconducting heat pipes, the bulb utilizes unique S-shaped cooling fins made from AL6063 material (European standard) for better heat dissipation.
  • The 1.5mm double-sided copper base plates are perfectly welded to the dual superconducting heat pipes, ensuring improved heat transfer. The external driver and smart temperature control system protect the LED chips, extending the bulb's lifespan.
  • The sleek and patented design provides a compact yet powerful performance. The bulb includes EMC and decoding functions, ensuring compatibility with various vehicle models.
Specification
Series N13
Model N13 H1 N13 H4 N13 H7 N13 H11 N13 9005 N13 9006 N13 9012
Voltage (V) 9-60
Power (W) 65
Luminous Flux (lm) 4800
Color temperature (K) 6500
Driver External driver
Fan Yes
