Request a Quote
View All: http://packaging-strapping.com/2-3-1-automatic-strapping-machines.html

Changcheng provides various types of automatic strapping machines and each of them is particularly designed for regular-size packaging, large and heavy products, powder and liquid products, products that are quite wide or compression packaging. Automatic strapping machines are mainly used in packaging of cartons, paper parcels and wooden cases in fields of food, medical and hardware industries.

Highlights
  • Fully automatic strapping machines require no manual feeding, which saves the labor and improves productivity;
  • High tensioning force results in outstanding packaging output;
  • Quality parts processed by NCN systems ensure safety, stability and durability;
  • Gentle strapping performance eliminates damages to products;
  • Reliable motors that stop running after packaging reduce operation costs.

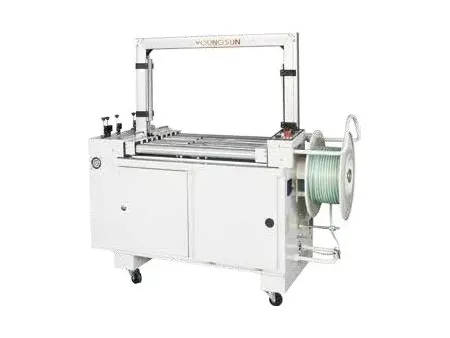

Automatic Arch Strapper, MH-101A

  • Power supply 380V 50/60Hz 1.0kW
    Machine dimension (mm) 1400x628x1418
    Strapping specifications (mm) Minimum packing size: W100xH80 Standard frame size: W800xH600 (customized)
    Table height (mm) 750 (customized)
    Strapping speed (sec/cycle) ≤2.5
    PP strap (mm) Width 9-15(±1); thickness 0.55-1.0(±0.1)

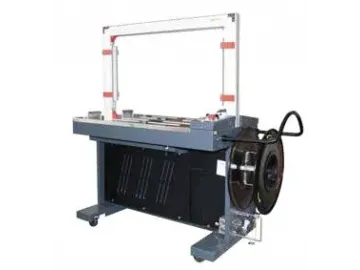

Automatic Arch Strapper with Roller Driven Table, MH-102A

  • Power supply 380V 50/60Hz 1.4kW
    Machine dimension (mm) 1580x650x1418
    Strapping specifications (mm) Minimum packing size: W100xH80 Standard frame size: W800xH600 (customized)
    Table height (mm) 450 (customized)
    Strapping speed (sec/cycle) ≤2.5
    PP strap (mm) Width 9-15(±1), thickness 0.55-1.0(±0.1)

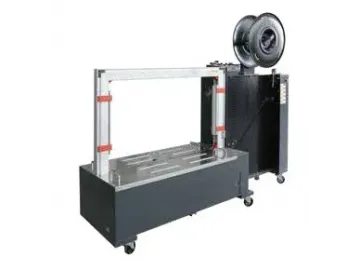

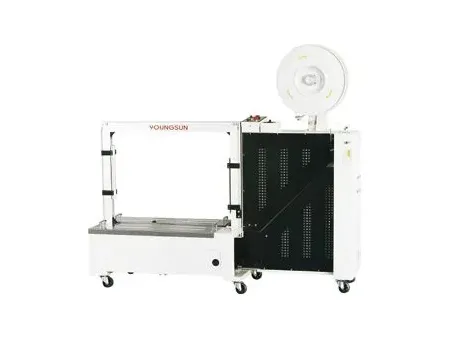

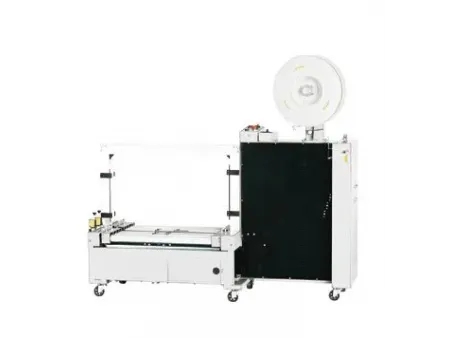

Automatic Low Table Strapper, MH-101B

  • Power supply 380V 50/60Hz 1.0kW
    Machine dimension (mm) 1905x628x1850
    Strapping specifications (mm) Minimum packing size: W210xH100 Standard frame size: W800xH600 (customized)
    Table height (mm) 750 (customized)
    Strapping speed (sec/cycle) ≤2.5
    PP strap (mm) Width 9-15(±1), thickness 0.55-1.0(±0.1)

Automatic Low Table Strapper, MH-102B

  • Power supply 380V 50/60Hz 1.4kW
    Machine dimension (mm) 1905x628x1850
    Strapping specifications (mm) Minimum packing size: W100xH80 Standard frame size: W800xH600 (customized)
    Table height (mm) 450 (customized)
    Strapping speed (sec/cycle) ≤2.5
    PP strap (mm) Width 9-15(±1), thickness 0.55-1.0(±0.1)

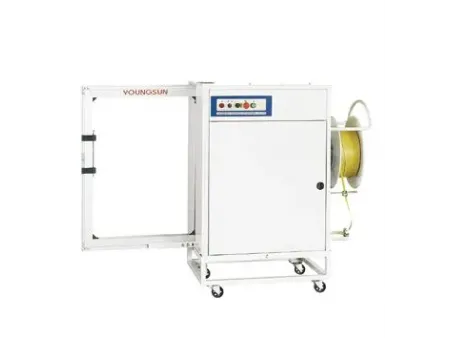

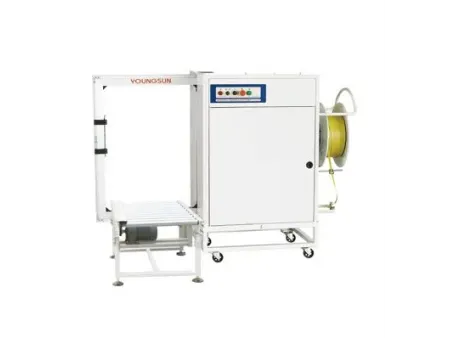

Side-Seal Automatic Strapping Machine, MH-103A

  • Power supply 380V 50/60Hz 1.0kW
    Machine dimension (mm) 1860x628x1350
    Strapping specifications (mm) Minimum packing size: W80xH100 Standard frame size: W600xH800 (customized)
    Table height (mm) Customized
    Strapping speed (sec/cycle) ≤2.5
    PP strap (mm) Width 9-15(±1), thickness 0.55-1.0(±0.1)

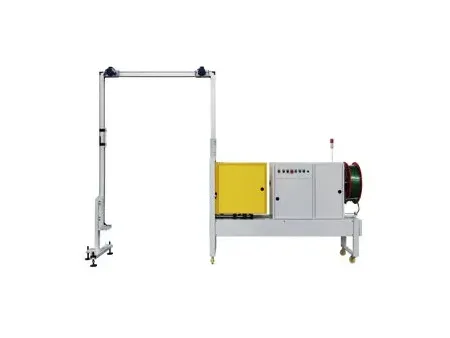

Automatic Horizontal Strapping Machine, MH-105A

  • Power supply 380V 50/60Hz 3.1kW
    Air pressure (MPa) 0.4-0.6
    Machine dimension (mm) 1930x3240x2800
    Frame size (mm) W1500xH1500 (customized)
    Strapping speed (sec/cycle) ≤15
    PP strap (mm) Width 9-15(±1), thickness 0.55-1.0(±0.1)
    Strap coil dimension (mm) Width 160-180; inner dia. 200-210; outer dia. 400-500

Automatic Strapping Machine with Low Table, MH-103B

  • Power supply 380V 50/60Hz 1.0kW
    Machine dimension (mm) 1860x628x1350
    Strapping specifications (mm) Minimum packing size: W80xH100 Standard frame size: W600xH800 (customized)
    Table height (mm) Customized
    Strapping speed (sec/cycle) ≤2.5
    PP strap (mm) Width 9-15(±1), thickness 0.55-1.0(±0.1)

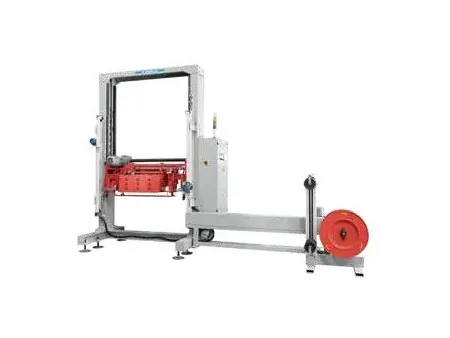

Automatic Vertical Pallet Strapping Machine, MH-105B

  • Power supply 380V, 50/60Hz, 1.6kW
    Air pressure (MPa) 0.4-0.6
    Machine dimension (mm) 4145x845x2630
    Frame size (mm) W1500xH2000 (customized)
    Strapping speed (sec/cycle) ≤15
    PP strap (mm) Width 9-15(±0.1), thickness 0.55-1.0 (±0.1)
    Strap coil dimension (mm) Width 160-180; inner dia. 200-210; outer dia. 400-500

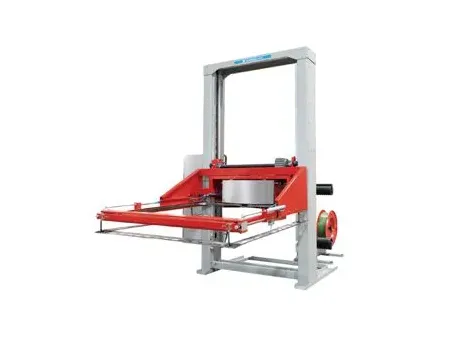

Automatic Vertical Strapping Machine with Top Press, MH-105C

  • Power supply 380V 50/60Hz 4.0kW
    Machine dimension (mm) 4250x800x3300
    Frame size (mm) W1500xH1800 (customized)
    Strapping speed (sec/cycle) ≤15
    PP strap (mm) Width 9-15(±0.1), thickness 0.55-1.0 (±0.1)
    Strap coil dimension (mm) Width 160-180, inner dia. 200-210, outer dia. 400-500

Automatic Low Table Arch Strapper, MH-X201B

  • Power supply 220V 50/60Hz 0.4kW
    Machine dimension (mm) 1400x628x1435
    Strapping Specifications (mm) Minimum packing size: W80xH60 Standard frame size: W800xH600 (customized)
    Table height (mm) 750 (customized)
    Strapping speed (sec/cycle) ≤2.5
    PP strap (mm) Width 9-15(±1), thickness 0.55-1.0(±0.1)

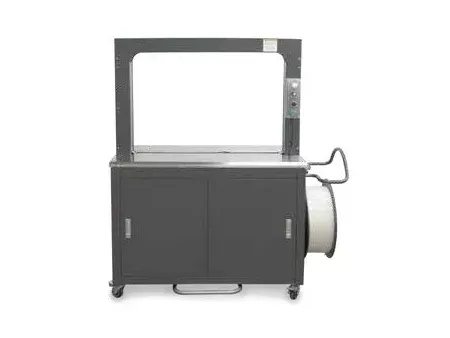

Automatic Arch Strapping Machine, MH-X201

  • Power supply 220V(380V); 50/60Hz; 0.4kW(0.8kW)
    Machine dimension (mm) 1400x628x1435
    Strapping Specifications (mm) Minimum packing size: W80xH60 Standard frame size: W800xH600 (customized)
    Table height (mm) 750 (customized)
    Strapping speed (sec/cycle) ≤2.5
    PP strap Width 9-15(±1), thickness 0.55-1.0(±0.1)

Automatic Arch Strapping Machine, MH-301A

  • Power supply 220V 50/60Hz 0.5kW
    Machine dimension (mm) 1400x628x1435
    Strapping specifications (mm) Minimum packing size: W80xH60 Standard frame size: W800xH600 (customized)
    Table height (mm) 750 (customized)
    Strapping speed (sec/cycle) ≤2.5
    PP strap (mm) Width 9-15(±1), thickness 0.55-1.0(±0.1)

Automatic Arch Strapper with Low Table, MH-301B

  • Power supply 220V 50/60Hz 0.5kW
    Machine dimension (mm) 1810x628x1617
    Strapping specifications (mm) Minimum packing size: W80xH60 Standard frame size: W800xH600 (customized)
    Table height (mm) 450 (customized)
    Strapping speed (sec/cycle) ≤2.0
    PP strap Width 9-15(±1), thickness 0.55-1.0(±0.1)

Automatic Strapping Machine, YS-309

  • Power supply 220V; 50/60Hz; 0.6kW
    Machine dimension (mm) 1180x585x1450
    Strapping specifications (mm) Minimum packing size: W80xH60 Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤40
    PP strap (mm) Width 8/9, thickness 0.5-0.8

Automatic Strapping Machine, YS-305

  • Power supply 220V 50/60Hz 0.6kW
    Machine dimension (mm) 1180x585x1450
    Strapping specifications (mm) Minimum packing size: W80xH60 Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤50
    PP strap (mm) Width 5/6, thickness 0.5-0.8, inner dia.200-210

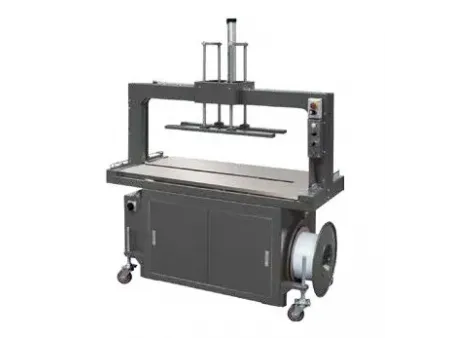

Automatic Strapping Machine with Press, YS-305P

  • Power supply 220V 50/60Hz 0.6kW
    Air pressure (MPa) 0.4-0.6
    Machine dimension (mm) 1510x585x1970
    Strapping specifications (mm) Minimum packing size: W80xH60 Standard frame size: W1250xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤25
    PP strap (mm) Width 5/6, thickness 0.5-0.8

Automatic Strapping Machine, YS-312

  • Power supply 220V 50/60Hz 0.6kW
    Machine dimension (mm) 1170x585x1420
    Strapping specifications (mm) Minimum packing size: W80xH60 Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤40
    PP strap (mm) Width 11/12, thickness 0.5-0.8

Automatic Strapping Machine with Belt Driven Table, YS-305B

  • Power supply 220V 50/60Hz 1.0kW
    Machine dimension (mm) L1480×W730×H1480
    Strapping Specifications (mm) Minimum packing size: W150xH60
    Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤40
    PP strap (mm) Width 5/6, thickness 0.5-0.8

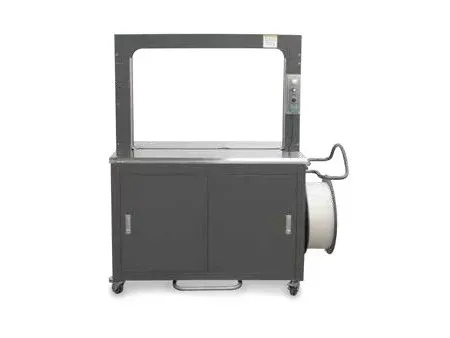

Automatic Arch Strapping Machine, YS-312X

  • Power supply 220V 50/60Hz 0.6kW
    Machine dimension (mm) 1170x585x1420
    Strapping specifications (mm) Minimum packing size: W80xH60 Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤40
    PP strap (mm) Width 11/12, thickness 0.5-0.8

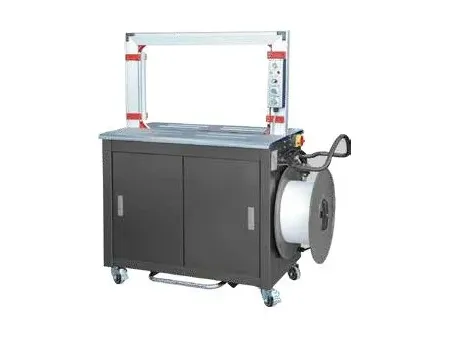

Automatic Arch Strapper with Belt Driven Table & Press, YS-305BP

  • Power supply 220V 50/60Hz 1.0kW
    Air pressure (MPa) 0.4-0.6
    Machine dimension (mm) 1480x730x1980
    Strapping specifications (mm) Minimum packing size: W150xH60 Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤30
    PP strap (mm) Width 5/6, thickness 0.5-0.8

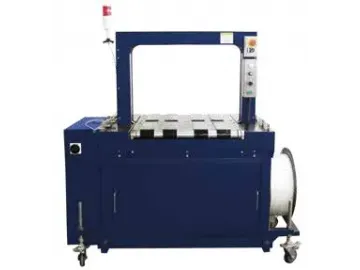

Automatic Arch Strapper with Roller Driven Table, YS-305R

  • Power supply 220V 50/60Hz 1.0kW
    Machine dimension (mm) 1520x680x1500
    Strapping specifications (mm) Minimum packing size: W200xH60 Standard frame size: W1250xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤30
    PP strap (mm) Width 5/6, thickness 0.5-0.8

Automatic Arch Strapper with Roller Driven Table & Press, YS-305RPD

  • Power supply 220V 50/60Hz 2.4kW
    Air pressure (MPa) 0.4-0.6
    Machine dimension (mm) 2120x1300x2100
    Strapping specifications (mm) Minimum packing size: W400xH60 Standard frame size: W1250xH500 (customized)
    Table height (mm) 920 (customized)
    Strapping speed (sec/cycle) 16
    PP strap (mm) Width 5/6, thickness 0.5-0.8

Automatic Arch Strapper with Roller Driven Table & Press, YS-305RP

  • Power supply 220V 50/60Hz 1.0kW
    Air pressure (MPa) 0.4-0.6
    Machine dimension (mm) 1520x680x2000
    Strapping specifications (mm) Minimum packing size: W200xH60 Standard frame size: W1250xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤25
    PP strap (mm) Width 5/6, thickness 0.5-0.8

Automatic Strapping Machine, YS-405

  • Power supply 220V 50/60Hz 0.6kW
    Machine dimension (mm) 1180x585x1450
    Strapping specifications (mm) Minimum packing size: W80xH60 Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤60
    PP strap (mm) Width 5/6, thickness 0.5-0.8

Automatic Strapping Machine with Belt Driven Table, YS-405B

  • Power supply 220V 50/60Hz 1.0kW
    Machine dimension (mm) 1480x730x1480
    Strapping specifications (mm) Minimum packing size: W150xH60 Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤55
    PP strap (mm) Width 5/6, thickness 0.5-0.8

Automatic Low Table Strapper with Belt Driven Table, YS-405BL

  • Power supply 220V 50/60Hz 1.0kW
    Machine dimension (mm) 1920x730x1600
    Strapping specifications (mm) Minimum packing size: W150xH60 Standard frame size: W650xH500 (customized)
    Table height (mm) 850 (customized)
    Strapping speed (sec/cycle) ≤55
    PP strap (mm) Width 5/6, thickness 0.5-0.8
Tags
  • carton strapping machine
  • box strapping machine
  • banding machine for PP Straps

Speak To Our Specialists

Our team of experienced specialists provides strapping and packaging solutions based on their in-depth knowledge and expertise for your applications.
Related products
Mobile Pallet Strapping Machines
Mobile Pallet Strapping Machines
PET Strapping
PET Strapping
Arch Strapping Machine for PP Strapping
Arch Strapping Machine for PP Strapping
Strapping Consumables
Strapping Consumables
Send Message
Other Products
Automatic Pallet Strapping Machine
Automatic Pallet Strapping Machine
Carton Strapping Machine
Carton Strapping Machine
Spring Machines
Spring Machines
Platemaking Machines
Platemaking Machines
Most Recent
Functional Masterbatch Functional Masterbatch talc-powder.com
Electric Vibratory Hammer Electric Vibratory Hammer piling-hammers.com
Belt Weigher Belt Weigher fertilizer-granulators.com
Urine Container Assembly Line Urine Container Assembly Line medical-machinery.com
More
Semi-Automatic Pendulum Impact Testing Machine Semi-Automatic Pendulum Impact Testing Machine friction-testers.com
Wind Turbine Yaw Bearings Wind Turbine Yaw Bearings xql-slewingbearing.com
On-Board Charger (OBC) On-Board Charger (OBC) on-boardcharger.com
Cap & Closure Moulds Cap & Closure Moulds mw-blowingmachine.com
Plastic Tube Bending Machine (Tube Diameter 6-14mm) Plastic Tube Bending Machine (Tube Diameter 6-14mm) autotubebenders.com
Permanent Magnet Motor with VFD Panel Permanent Magnet Motor with VFD Panel semc-motors.com
Other Products
Strapping Machines for Corrugated Cardboard Strapping Machines for Corrugated Cardboard jlcartonmachine.com
Automatic Pallet Strapping Machine Automatic Pallet Strapping Machine intralogisticssystem.com
Automatic Cable Coil Strapping and Shrink Wrapping Machine Automatic Cable Coil Strapping and Shrink Wrapping Machine wirecable-solution.com
Automatic Mortising Machines Automatic Mortising Machines woodwork-equipment.com
Carton Strapping Machine Carton Strapping Machine packaging-en.com
Automatic Snap Fastener Machines Automatic Snap Fastener Machines solutions-sewing.com
Videos
High Efficiency Automatic Strapping Machine High Efficiency Automatic Strapping Machine
Automatic Mortising Machines Automatic Mortising Machines
Knitting Machines Knitting Machines
Hydraulic Machines Hydraulic Machines
Metal Processing Machines Metal Processing Machines
Can Making Machines Can Making Machines
Inquiry
Inquiry
