Pallet Elevator (Vertical Reciprocating Conveyor)
Request a Quote

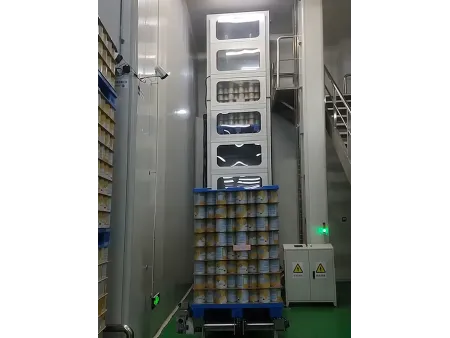

Automated vertical pallet conveyor for lifting and transporting palletized loads between floors, compatible with AGV logistics system
The pallet elevator can be customized to meet specific lifting height requirements and is equipped with fast roll-up doors that open and close automatically. It vertically transfers full pallet loads to the second-floor access point for AGV or manual forklift retrieval. The system is easy to operate, safe, and highly reliable, significantly reducing labor and logistics costs while improving overall production efficiency.
Specifications
| Main Unit Dimensions | L2300×W2000×H8000mm |
| Applicable Pallet Types | Plastic or wooden pallets |
| Operating Speed | Typically 0.2-1m/s; adjustable according to application requirements |
| Load Capacity | Customizable; common options include 500kg and 1000kg |
| Pallet Size | L1200×W1000×H150 (customizable) |
| Full Stack Dimensions | L1400×W1400×H1700mm (customizable) |
| Installed Power | 16kW |
| Lifting Height | Customizable according to building structure; typically from several meters to tens of meters |
| Drive System | Electric motor drive; selected models equipped with frequency inverter for smooth acceleration and deceleration |
| Control System | PLC control; supports manual/automatic modes; user-friendly operation |
| Power Supply | 3-phase 380V AC, 50 Hz |
