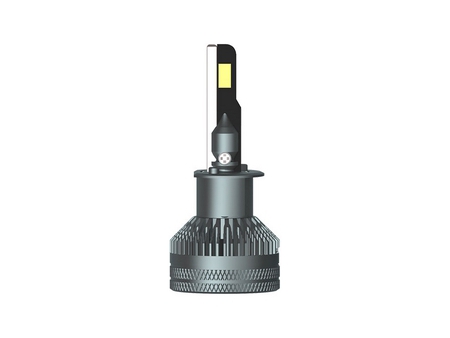

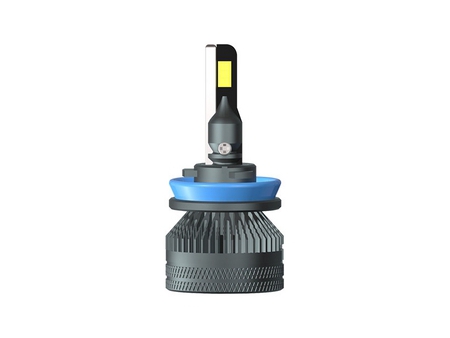

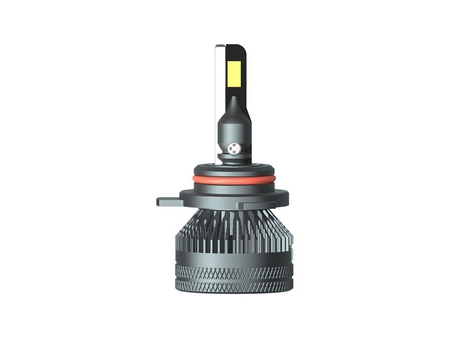

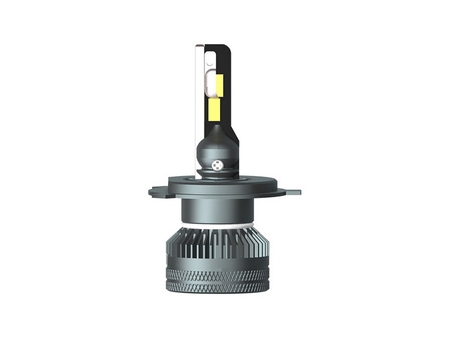

L6 Series LED Headlight Bulb
Request a Quote
Features
- The heat sink measures 32mm in diameter and 30.5mm in height, with a power output of 40W, ensuring optimal cooling performance.
- Featuring 6*45 3570 LED chips and a single superconducting heat pipe, the bulb is designed with unique S-shaped cooling fins made from high-quality AL6063 material (European standard) to enhance heat dissipation.
- The 1.5mm double-sided copper base plates are perfectly welded to the superconducting heat pipe, providing superior heat transfer. The built-in driver and smart temperature control system offer added protection for the LED chips, ensuring a longer lifespan.
- Compact and Powerful Design: The bulb combines a sleek and compact design with high power output, offering EMC and decoding functions for enhanced compatibility and performance.
Specification
| Series | L6 | ||||||
| Model | L6 H1 | L6 H4 | L6 H7 | L6 H11 | L6 9005 | L6 9006 | L6 9012 |
| Voltage (V) | DC9-100 | ||||||
| Power (W) | 40 | ||||||
| Luminous Flux (lm) | 3200 | ||||||
| Color temperature (K) | 6500 | ||||||
| Driver | Built-in driver | ||||||
| Fan | Yes | ||||||
