Request a Quote

The feeding and gluing machine has a simple structure and is easy to operate. It can be used to produce various products such as folders, binders, books, calendars, hardcovers and two-piece rigid boxes. Suitable adhesives include jelly glue, white glue and etc.

Get A Quote

Used for rigid box manufacturing

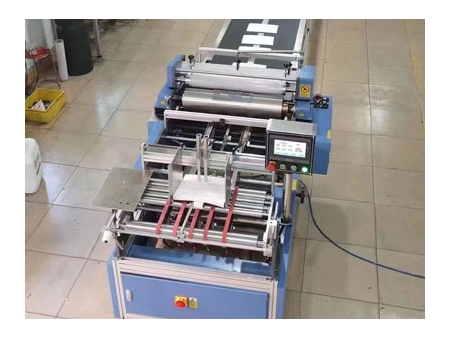

The LY-SJ-650-A semi-automatic gluing machine has a suction system in the belt conveyor that ensures the surface paper is smoothly attached. It can automatically feed single sheets and is suitable for different paper sizes and styles.

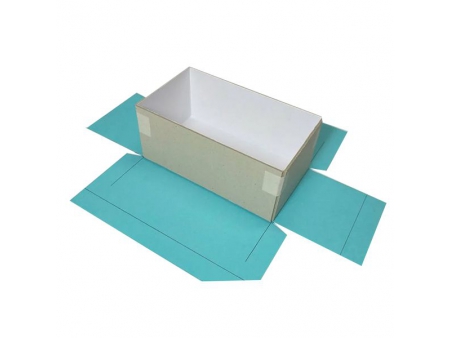

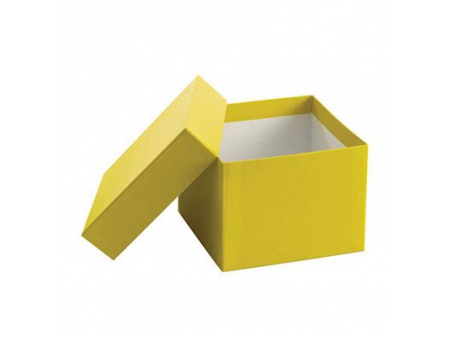

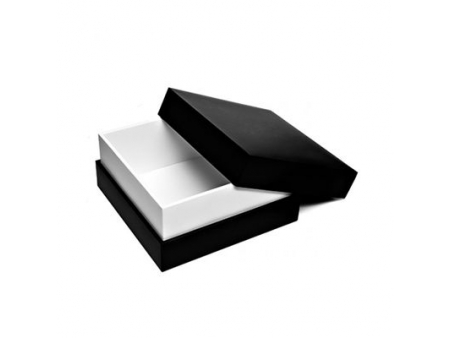

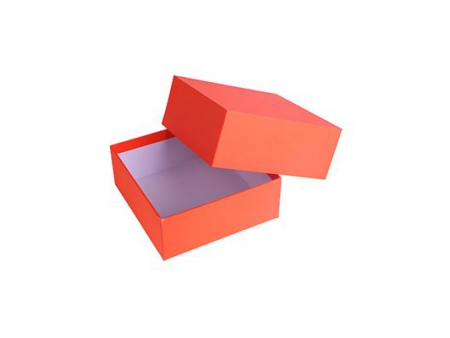

Sample Boxes
Parameters
Product Model LY-SJ-650-A
Voltage 380V/50HZ
Power 10.9kW
Paper Thickness 80-200g
Paper Width 60-600mm
Paper Length Unlimited
Belt Conveyor Length 5000mm
Weight 1500kg
Overall Size 7500*1500*1000mm
Features

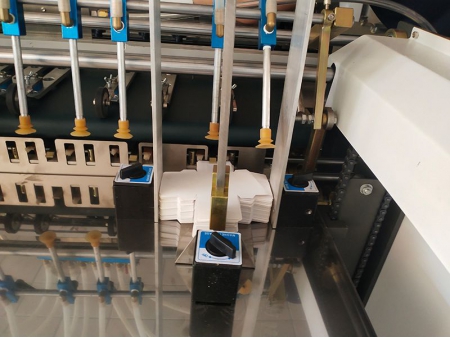

    • The stack of paper is securely held in place by magnetic side baffle, offering both flexibility and stability.

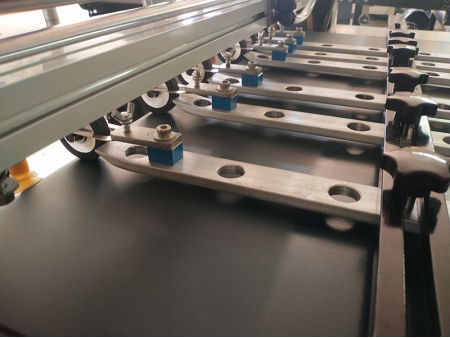

    • The conveyor table features a ball bearing design that ensures smooth and even paper feeding from all directions, preventing any skewing or jamming of the paper.
  • The glue roller can be easily adjusted, allowing for an even coating of glue to be applied to the surface of the paper.
  • The circulating water tank includes a temperature control system, ensuring that the adhesive maintains the proper viscosity for optimal performance.
  • An internal cleaning system is built into the machine, which can efficiently clean the gluing machine within just five minutes.
  • The belt conveyor is equipped with a powerful vacuum system, providing a secure adhesion of the paper during transport.

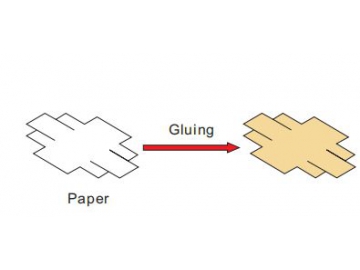

Production Process

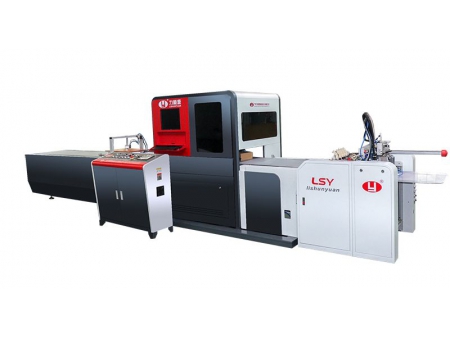

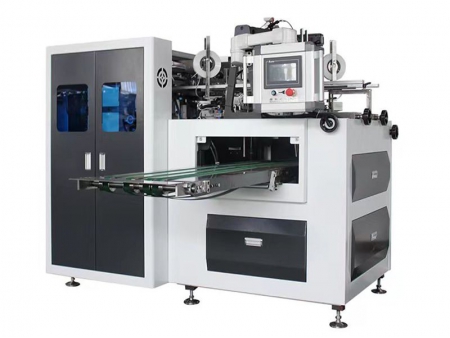

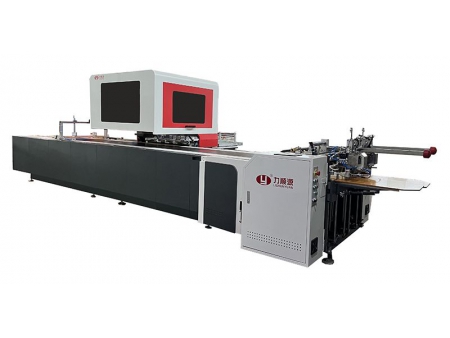

Other Equipment of Rigid Box Line

There are some box making Equipment that we featured for choose your best
