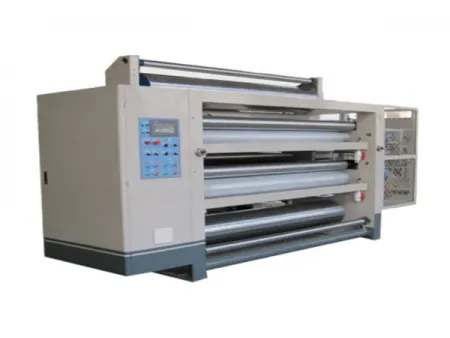

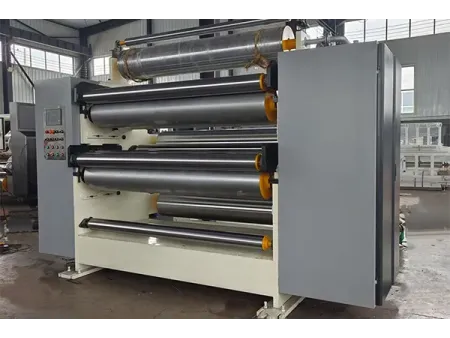

Corrugated Cardboard Gluing Machine

Request a Quote

Website: http://corrugatedline-en.com/1-7-gluing-machine.html

Individual Machines for Corrugated Cardboard Production

The gluing machine is engineered for precise and efficient adhesive application in corrugated board production. With its frequency-controlled glue roll, automatic circulation system, and flexible pressing options, it ensures uniform coating, reduced glue consumption, and stable long-term operation.

Design speed: 200 m/min

Features

Specialized Glue Roll
Surface engraved with reticulated pattern and hard chrome plated for uniform coating with minimal glue consumption.
Frequency-Controlled Operation
Glue roll rotation managed by a frequency inverter, synchronizing line speed with the double facer or allowing independent operation.
Adjustable Glue Application
Glue volume adjustable via electric digital display or manual control for flexibility.
Precision Paper Pressing
Paper pressing roll engages automatically, with clearance fine-tuned by electric micro-adjustment.
Automatic Glue Circulation
Continuous glue supply system prevents sedimentation, ensures stable application, and reduces glue waste.
Flexible Pressing Options
Choice of press roll or elastic contact rod (rubber shaft with elasticity) to suit different production needs.
