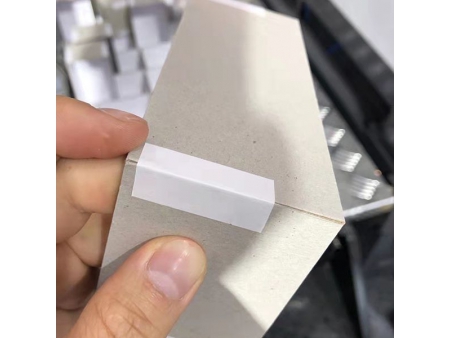

Used for applying tapes on four corners of box blank

Get A Quote

The LY-750 automatic rigid box corner pasting machine can achieve continuous material feeding thanks to its dual pallets, which reduces labor cost and improves efficiency with the manufacturing speed of 30-80 pieces per minute.

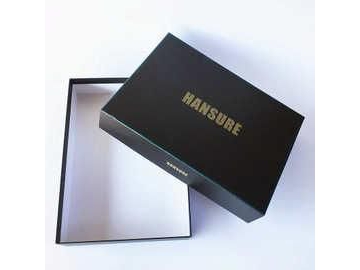

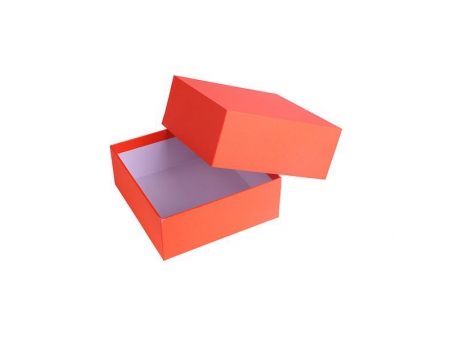

Sample Boxes

Parameters
Product Model LY-750
Cardboard Thickness 1.2-4 mm
Pile Height 1000 mm
Min. Box Dimension 60 mm*80 mm*15 mm
Max. Box Dimension 500 mm*500 mm*120 mm
Manufacturing Speed 30-80 pcs/min
Voltage 380 V
Rated Power 3.88 kW
Air Pressure 0.5-0.8 MPa
Overall Size 2550 mm*2100 mm*2200 mm
Weight 1280 kg
Features
  • The cardboard feeder is designed for delivering various types of cardboards with ease, including thick, thin, irregular-shaped, extra-large, and slotted boards. It has a function that automatically matches the speed of the automatic positioning machine by pulling down the boxes for added convenience.
  • The dual pallets allow operators to stack paper in advance, reducing labor intensity and improving production efficiency.
  • The alloy groove of adhesive tape is assembled with great accuracy that never deforms, avoiding common problems such as tape blockage and sticking.
  • Integral frame is processed in one go by large machining center, with an error of less than 0.1mm between the frame, crossbeam, and tool holder. The assembly accuracy is guaranteed, making it easy to change molds and adjust the machine.
  • Imported guide rail sliders from Hiwin are used in the corner pasting and joint adjustment, providing the best possible accuracy requirements.
  • Motor-controlled for the main spindle and belt conveyor all set by a touch screen, allowing the corners be pasted once or multiple times. The length of the belt conveyor can be adjusted as required. Plus, it has a stop-and-reverse function to prevent sticking.

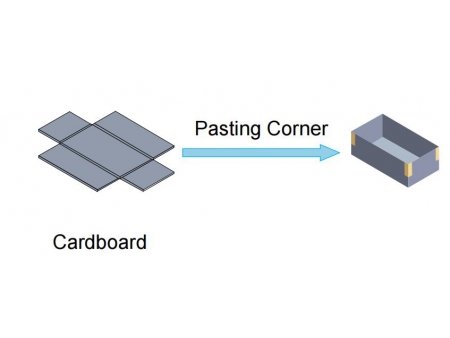

Production Process
