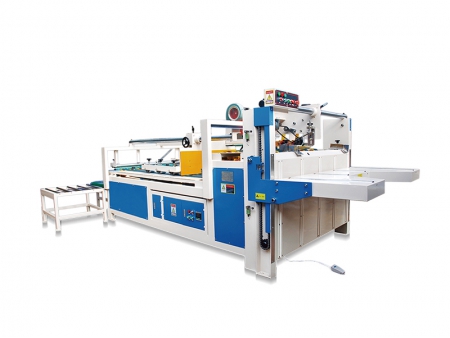

Adjustable Speed Gluing Machine

Adjustable Speed Gluing Machine
Adjustable Speed Gluing Machine
Request a Quote

The adjustable speed gluing machine is designed and manufactured with compact structure, easy operation and high durability in mind. The wearing parts all made by using quality stainless steel material.

The gluing machine can convey the paper to the gluing roller for automatic gluing. Compared with manual gluing, it offers higher gluing speed and requires lower labor intensity. The machine is now widely used in the packaging and printing, paper boxes, cartons, book covers, and many other fields. It can accommodate various paper sheets with different thickness.

Technical Parameters
ModelTJJ-700 TJJ-1000
Sheet thickness80~400 g 80~400 g
Max. sheet width 700 mm 1000 mm
Max. sheet length 2000 mm 2000 mm
Power 0.4 kW/220 V0.55 kW/220 V
Speed0~23 m/min 0~23 m/min
Machine dimension 1000x500x800 mm 1200x500x800 mm
Machine weight 200 kg 350 kg

XINWEI MACHINERY is an adjustable speed gluing machine manufacturer in China. We offer a comprehensive range of products, including adjustable speed paper up gluing machine, exercise book binding stitching machine, rigid box forming machine, and more.
