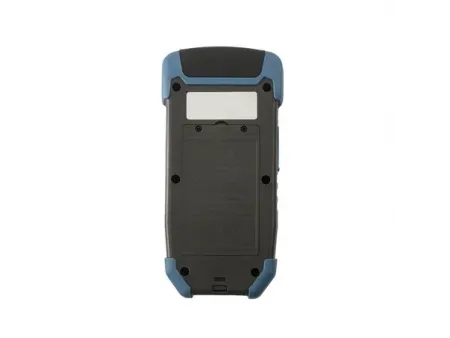

JW3120 Handheld Adjustable Optical Light Source

Handheld Light Source

JW3120

Our handheld optical light features a 3.5-inch color display and adjustable power output. Supporting up to six wavelengths, it offers a continuous adjustment range of 15dB and the flexibility of single or dual-channel outputs. Paired with compatible power meters, it can automatically recognize wavelengths, streamlining fiber link loss measurements and ensuring reliable results. Its versatile design makes it an excellent choice for both fieldwork and laboratory applications.

Features

3.5-inch color screen enhances usability with clear, intuitive operation.
Outputs support up to six wavelengths for versatile testing scenarios.
User calibration allows customization for precise measurements.

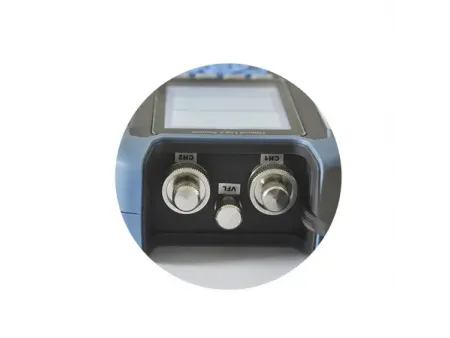

Single-channel and dual-channel output options provide flexibility.
Continuous power adjustment range of 15dB ensures accurate control.
Automatic wavelength recognition simplifies link loss measurements.
Supports continuous wave (CW) and modulated light outputs for various applications.
Visual Fault Locator (VFL) is available as an optional feature for troubleshooting.

Typical Applications

Fiber optic network maintenance and troubleshooting.
Engineering and diagnostics in digital data networks.
Education and research in optical communication systems.
General fiber optic engineering and testing projects.

Specifications

Wavelength	1310/1550nm (customizable)
Spectrum Width	≤5nm (customizable)
Typical Output Power	-5dBm
Output Stability	≤0.05dB (15min)
Output Power	-5 to -20dB (adjustable)
Minimum Adjustable Step Size	0.05dB
Modulation Frequency	CW/270Hz/330Hz/1kHz/2kHz
Optical Connector Type	(FC/SC)/PC (customizable)
Display	3.5 inch TFT color screen
Visual Fault Locator (VFL) (Optional)
Wavelength	650nm
Output Power	10mW
General
Power Supply	3.7V 4000mAh lithium battery/Micro USB
Automatic Shut-off	User-defined time

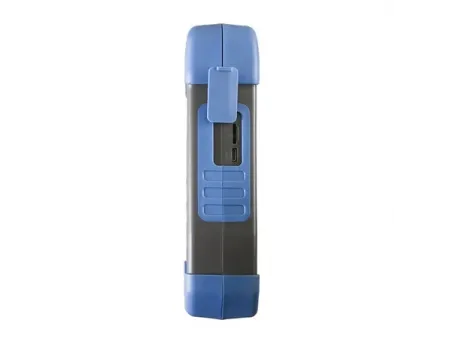

Communication Interface	Micro USB
Continuous Operating Time	≥25h
Operating Temperature	-10 to 60℃
Storage Temperature	-25 to 70℃
Dimensions	188×88×44mm
Weight	370g

Notes
1.All technical specifications were tested at T=23±2°C.
2.Measurements were conducted after a 15-minute preheat period with the 1550nm light source activated.
3.Battery life was tested with the backlight turned off for continuous operation. Using the backlight continuously may reduce operating time.
