Water Discharge Hose
The rubber water discharge hose features flexible design, which is used for moving volumes of water, wastewater, non-corrosive solutions, or other fluids. This rubber hoses are available in various sizes, and can be manufactured with different materials to suit a wide range of applications.

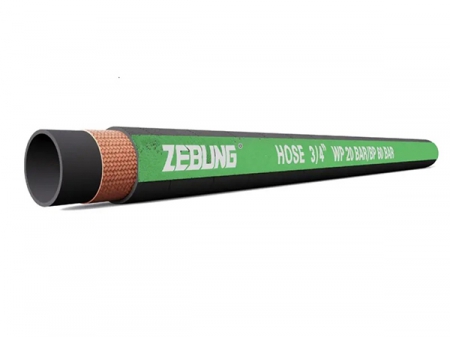

Water discharge hose with braided reinforcement
Reinforcement layer: Single/double layer braiding with high-strength textile cord

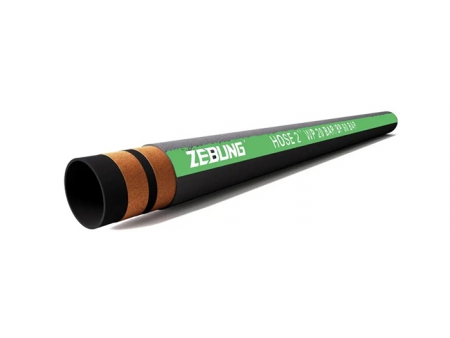

Water discharge hose with spiral reinforcement
Reinforcement layer: High-strength spiral textile cord
The rubber water discharge hose is characterized by its excellent flexibility, high-pressure resistance, and resistance to aging, ensuring reliable and stable water transportation. With the ability to withstand high pressures and large volumes, these hoses guarantee the safe and efficient conveyance of water.
Basic Information- Inner tube: Natural rubber SBR compound (tensile strength ≥6MPa)
- Outer cover: Natural rubber SBR compound (tensile strength ≥9MPa)
- Working temperature: -20°C to 80°C
- Safety factor: 3:1
- Color: Available in various colors such as black, yellow, etc.
- Agricultural Irrigation: Used in agricultural irrigation, rice fields, orchards, vegetable gardens, and other irrigation sites.
- Construction: Used in construction projects, bridges, tunnels, hydraulic engineering, and various construction sites.
- Wastewater Treatment: Used in urban wastewater treatment, sewage discharge, wastewater treatment plants, etc.
Rubber hoses have advantages such as good elasticity, strong compression resistance, and resistance to aging. They can withstand high pressure and high flow rates, ensuring safe and stable water transportation.
Technical Parameters
1. Water Discharge Hose with Braided Reinforcement
Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Weight | Max. Length | |||
mm | inch | mm | bar | psi | bar | psi | kg/m | m | |
WDB006-300 | 6 | 1/4" | 14 | 20 | 300 | 60 | 900 | 0.17 | 100 |
WDB008-300 | 8 | 5/16" | 16 | 20 | 300 | 60 | 900 | 0.21 | 100 |
WDB010-300 | 10 | 3/8" | 18 | 20 | 300 | 60 | 900 | 0.24 | 100 |
WDB013-300 | 13 | 1/2" | 22 | 20 | 300 | 60 | 900 | 0.34 | 100 |
WDB016-300 | 16 | 5/8" | 26 | 20 | 300 | 60 | 900 | 0.46 | 100 |
WDB019-300 | 19 | 3/4" | 29 | 20 | 300 | 60 | 900 | 0.53 | 100 |
WDB022-300 | 22 | 7/8" | 34 | 20 | 300 | 60 | 900 | 0.65 | 100 |
WDB025-300 | 25 | 1" | 37 | 20 | 300 | 60 | 900 | 0.71 | 100 |
Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
2. Water Discharge Hose with Spiral Reinforcement
Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Weight | Max. Length | |||
mm | inch | mm | bar | psi | bar | psi | kg/m | m | |
WD019-150 | 19 | 3/4" | 30.4 | 10 | 150 | 30 | 450 | 0.62 | 61 |
WD025-150 | 25 | 1" | 36.4 | 10 | 150 | 30 | 450 | 0.77 | 61 |
WD032-150 | 32 | 1-1/4" | 43.8 | 10 | 150 | 30 | 450 | 0.95 | 61 |
WD038-150 | 38 | 1-1/2" | 50.8 | 10 | 150 | 30 | 450 | 1.21 | 61 |
WD045-150 | 45 | 1-3/4" | 57.8 | 10 | 150 | 30 | 450 | 1.40 | 61 |
WD051-150 | 51 | 2" | 63.8 | 10 | 150 | 30 | 450 | 1.56 | 61 |
WD064-150 | 64 | 2-1/2" | 77.8 | 10 | 150 | 30 | 450 | 2.19 | 61 |
WD076-150 | 76 | 3" | 89.8 | 10 | 150 | 30 | 450 | 2.56 | 61 |
WD089-150 | 89 | 3-1/2" | 102.8 | 10 | 150 | 30 | 450 | 2.95 | 61 |
WD0102-150 | 102 | 4" | 116.6 | 10 | 150 | 30 | 450 | 3.34 | 61 |
WD019-300 | 19 | 3/4" | 30.4 | 20 | 300 | 60 | 900 | 0.62 | 61 |
WD025-300 | 25 | 1" | 36.8 | 20 | 300 | 60 | 900 | 0.77 | 61 |
WD032-300 | 32 | 1-1/4" | 45.8 | 20 | 300 | 60 | 900 | 1.20 | 61 |
WD038-300 | 38 | 1-1/2" | 51.8 | 20 | 300 | 60 | 900 | 1.39 | 61 |
WD045-300 | 45 | 1-3/4" | 58.8 | 10 | 150 | 30 | 450 | 1.60 | 61 |
WD051-300 | 51 | 2" | 64.8 | 20 | 300 | 60 | 900 | 1.79 | 61 |
WD064-300 | 64 | 2-1/2" | 78.6 | 20 | 300 | 60 | 900 | 2.19 | 61 |
WD076-300 | 76 | 3" | 91.4 | 20 | 300 | 60 | 900 | 2.75 | 61 |
WD089-300 | 89 | 3-1/2" | 106.4 | 10 | 150 | 30 | 450 | 3.53 | 61 |
WD102-300 | 102 | 4" | 119.4 | 20 | 300 | 60 | 900 | 4.00 | 61 |
Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
