2MF | 4-25ml/r
Hydraulic Gear Motor
Within the portfolio of seven hydraulic gear motor series, the 2MF series offers a displacement range from 4 to 25 ml/r, designed to meet a broad spectrum of industrial needs. Known for its strong contamination resistance, simple yet reliable structure, the 2MF series excels in performance and durability. Its automatic axial clearance compensation and wear-resistant bushings significantly extend service life, making it a robust choice for demanding applications.
Highlights of the 2MF series include
- A versatile displacement range from 4 to 25 ml/r, accommodating a wide variety of hydraulic systems.
- Enhanced load-bearing capabilities and an extended lifespan, thanks to its durable design.
- The inclusion of automatic axial clearance compensation ensures consistent, efficient operation over time.

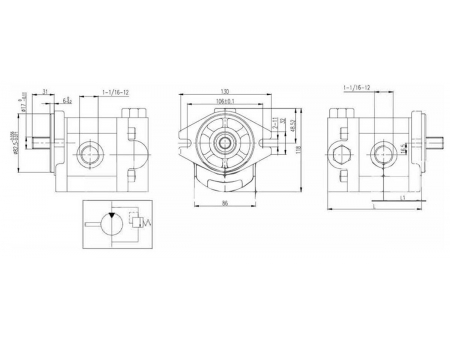

| Displacement (ml/r) | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 23 | 25 |
| L1(mm) | 39 | 40 | 41 | 43 | 44 | 46 | 48 | 49 | 51 | 54 | 57 |
| L(mm) | 111 | 112 | 115 | 118 | 120 | 125 | 128 | 132 | 137 | 139 | 141 |
The 2MF series gear motors, driven by hydraulic oil to transmit power from the shaft, are predominantly utilized in fan cooling systems. Beyond cooling, they also serve a critical function as vibratory motors in small road rollers. This dual application showcases the 2MF series' flexibility and efficiency in both maintaining optimal temperature conditions and enhancing compaction performance in construction machinery.
