Hydraulic Gear Motor

The 1DMFP68 series hydraulic gear motors are precision-crafted for efficiency and compact power. With a fine-tuned displacement of 6.2ml/r, they offer a perfect solution for applications where space is at a premium and precise fluid control is necessary. These motors are particularly suitable for small-scale machinery or intricate hydraulic systems where precise movement and control are paramount.

Key Features

  • Available in a specific 6.2ml/r displacement for accurate performance.
  • Engineered for applications with limited space without compromising power.
  • Delivers consistent power with minimal fluid consumption.
  • Built to resist wear and maintain performance over long service life.
Specifications
Displacement (ml/r) Working pressure (bar) Max. speed (rpm) Torque (N.m) Direction
6.2 70 5000 5.78 Bi-direction

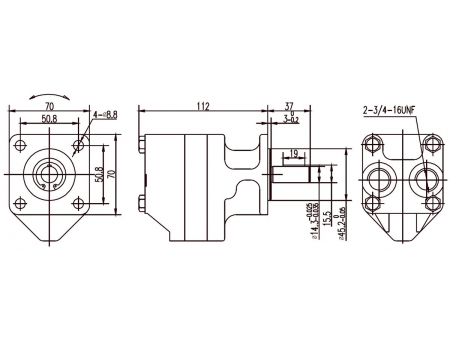

Dimensions
