with Taiwan design extrusion screw and barrel

This Taiwan design high speed blown film machine (with double rewinder) features a bimetal barrel and screw which have been hot-treated for a duration of seven days, making it incredibly durable and allowing for long lasting operation.

The design of the screw is taken from Taiwan and the feed and mix components are exceptionally efficient, allowing for improved film quality and manufacturing output.

This film blowing machine is designed for producing plastic films like HDPE, LDPE, LLDPE, and biodegradable substances. It is the perfect machinery for the job.

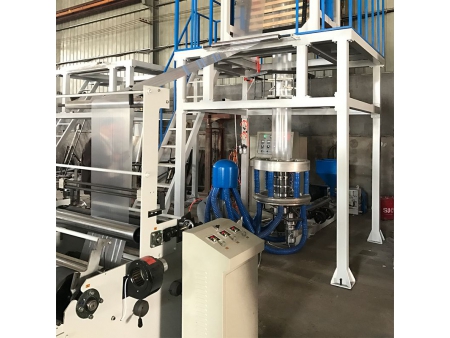

The high speed blown film machine features a combination of a rotary die head and a double rewinder, is ideal for making shrink film.

Technical Parameters
Model
SJ-50/HMC600
SJ-55/HMC800
SJ-60/HMC1000
SJ-65/HMC1200
Screw diameter (mm) Ø50 Ø55 Ø60 Ø65
Screw L/D ratio 30:1 30:1 30:1 30:1
Film width (mm) 200-600 300-800 400-1000 600-1200
Film thickness (mm) 0.006-0.10 0.006-0.10 0.006-0.10 0.006-0.10
Max. capacity (kg/h) 60 70 80 90
Die size (mm) Ø60/100 Ø80/150 Ø100/200 Ø120/250

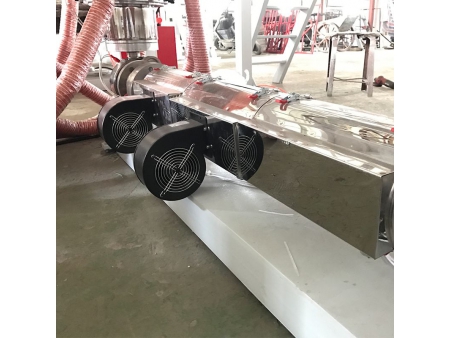

Power of cooling cylinder (kW) 0.13*2 0.13X2 0.13X3 0.13X3
Power of driving motor (kW) 15 18.5 22 30
Total power (kW) 28 36 42 52
Cover Dimensions (m) 5.0*2.6*4.5 5.0*3*4.6 5.5*3.5*4.8 5.5*4*5.5
Weight (kg) 2800 3000 4000 4900

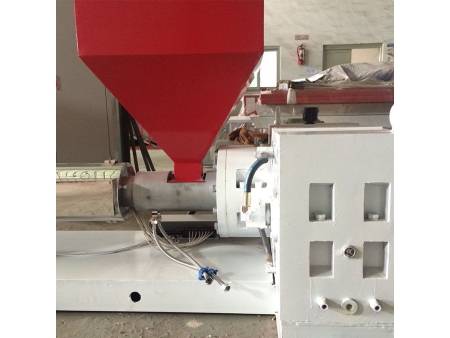

  • Main Extruder
  • Traction Motor
  • Controller Box
  • Double Rewinder
Main Components
  • Screw (Taiwan Design) Made of bimetal with tungsten carbide
    1. Material: 38 CrMoALA
    2. Material elemental analysis:
    C: 0.35~0.42 Si: 0.20~0.45 Mn: 0.30~0.60 S: ≤0.035 P: ≤0.035
    Cr:1.35~1.65 Al: 0.70~1.10  Ni: ≤0.030  Cu: ≤0.030  Mo:0.15~0.25
    3. Hardness of tempering: HB260-290
    4. Depth of nitriding treatment: 0.4-0.7 mm
    5. Hardness of surface: HV900-1050
    6. Roughness of surface: 0.32 Ra
    7. Linearity of screw: 0.015 mm/m
    8. Bimetal screw: designed with a layer of tungsten carbide applied to the thread.
    9. Hardness of bimetal layer: HRC 58-62
    10. Depth of bimetal layer: 2-3 mm
    11. Bimetal layer elements: Fe, Ni, B, C, Cu, etc.
  • Main Motor (Siemens) 1. Speed: 1400 rpm
    2. Motor power: 380V, 3-Phase, can be adjusted as needed
    3. Service life: more than 10 years
  • Gearbox 1. Functions: reduces speed of transmission
    2. Speed rate: 10:1
    3. High strength hard gearbox boasting service life
    4. Transferring requires lubrication oil.
    5. Low noise and longer service life
  • Heater 1. Ceramic heater heats up faster than stainless-steel alternatives
    2. Its lifespan is no less than 5 years
    3. It can better retain heat, resulting in lower power consumption
    4. Made from high-quality ceramic and heating wire.
  • Rotary Die Head (Taiwan design) 1. Made from #45 steel, providing robust performance.
    2. Surface treatment is employed to increase the transparency of films.
    3. The size of die heads is larger than normal, resulting in increased efficiency and productivity.
  • Fast Screen Changer 1. Ensure that workers are employed efficiently
    2. Minimize the risk of material leak
    3. Easy to change the filters, saving time and human labor

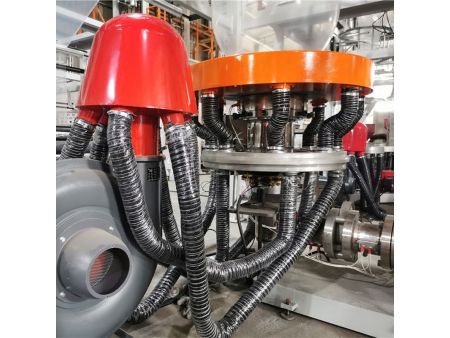

  • Double Vent Air Ring Using two lips instead of one can cool the film more quickly, thereby increasing the machine's output.
  • Electric Parts (Omron temperature controller and LS inverter) 1. Digital technology provides precise temperature control at a three centigrade level.
    2. Service life of no less than 10 years
  • Traction Parts Gusset part adopts Taiwan design, easy to adjust
  • Traction Motor 1. 1.5 kW,1400 rpm
    2. Gearbox: 7.5:1
    3. LG's inverter technology helps control motors, allowing them to run efficiently while conserving energy and supporting adjustable speed regulation
  • Double Rewinder 1. The use of air shafts can drastically reduce manual labor and enhance productivity.
    2. LG inverter technology which can control motor speed, leading to a reduction in power consumption.
    3. Inverters provide extended service life and ensure that motors operate properly.
