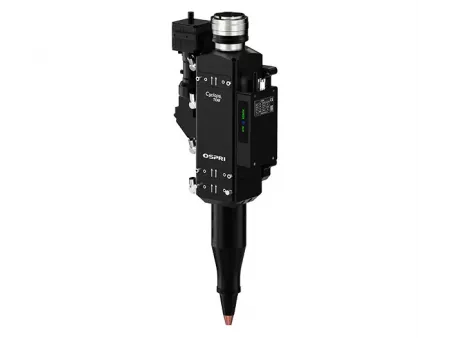

8kW Laser Welding Head with Temperature Monitoring
LWT08A0
Fiber laser welding head with temperature control for processing various metals with power ratings of up to 8kW
LWT08A0
Fiber laser welding head with temperature control for processing various metals with power ratings of up to 8kW
The laser welding head is designed with an intelligent temperature monitoring and warning system that enhances both safety and reliability during welding. Its contamination detection function provides timely alerts to prevent defects, while the built-in collision protection assembly ensures rapid recovery after impact, minimizing downtime. The fully water-cooled body maintains stable operating temperatures, enabling continuous, long-duration processing.
This laser welding head also supports MIG welding expansion, making it adaptable to complex requirements and diverse applications. By combining efficient cooling, real-time monitoring, and versatile compatibility, it improves welding stability and significantly boosts production efficiency.
| Model | LWT08A0 |
| Rated Power | 8kW |
| Wavelength | 1080±10nm |
| Collimation Length | 100mm/150mm |
| Focal Length | 150mm/200mm/250mm/300mm/400mm |
| Blowing Method | Coaxial/paraxial |
| Auxiliary Gas Pressure | ≤1MPa |
| Weight | 4.6kg |
The welding head with temperature control is suitable for 8kW medium-to-high-power welding. It can process stainless steel, carbon steel, copper, and aluminum alloys with high consistency and precision.
Real-time thermal control helps optimize welding parameters and ensures process stability.
Reduces collision damage and shortens downtime for faster production resumption
Dual-circuit cooling system that manages heat fluctuations, and guarantees long-term, stable operation of the welding head
Quick-swap cartridge structure minimizes manual servicing costs and improves efficiency
Enables real-time seam tracking and enhances precision control during welding
