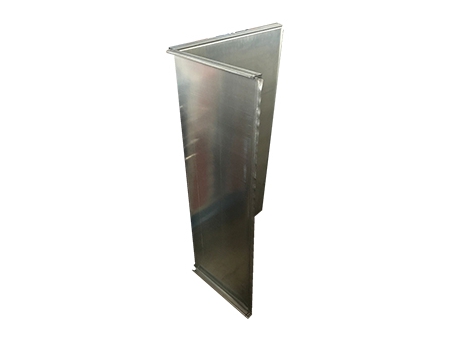

The duct line Ⅴ adds a bending machine that is not found on duct line IV. The end product is almost a fully rectangular duct that can be used immediately after the edges have been sealed with a seam closer and corners have been inserted.

The production line is fully automated, which saves labor and increases both the precision and productivity. The duct line V features a prefill angle flange former or a Transverse Duct Flange Forming Machine, both of which are easily interchangeable and easy to operate.

Duct line Ⅴ consists of the material compartment, flange former, duct beader, sheet shearing machine, and angle pressing machine.

  • Uncoiling
  • Leveling&Bending Grooving
  • Customized Cut-off
  • Notched "V" and "口" and Shear for C&S or TDF Flange
  • Notched "口" and Shear for C&S or TDF Flange
  • Forming Pittsburgh lock
  • Folding to "口" and "L" Type
  • Forming the Angle & TDF Fangle
  • Can be Forming for "L" and "口" Type
Advantages:
  • Computer controlled electronics.
  • Bending machine powered by servo to ensure bending precision and stability.
  • Maximum feeding speed 16m/min,length tolerence±0.5mm.
Parameter:
Model Thickness (mm) Max. width (mm) Max. feeding speed (m/min) Max. Load of decoiler (T) Dimension (mm) Power (kW) Machine weight (T)
SBAL-V-1250U
0.5-2.0 1250 18 8 14500x4950x1500 40 16
SBAL-V-1550U
0.5-2.0 1550 18 8 14500x5350x1500 40 16
