Concrete Block Mould

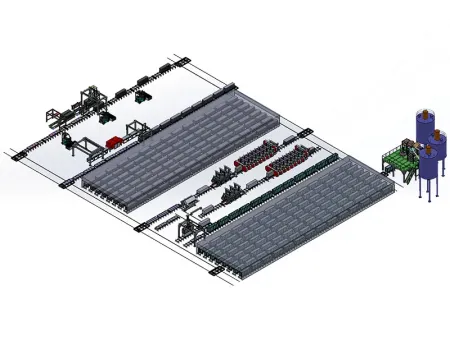

Concrete block forms used in concrete block production line
Block moulds are containers used to store and stabilize mixtures of cement, sand, and other raw materials. They are available in rectangular and square concrete block moulds and primarily consist of a mould frame and base plate. These moulds are essential for pouring raw materials, offering standard dimensions, resistance to deformation, and leak-proof construction. Made from high-quality steel, they are durable and easy to clean. They are widely used in the production of building materials, particularly in the concrete block manufacturing process.
- High durability: made from high-quality steel, resistant to deformation.
- Flexible sizes: customizable to different specifications.
- Excellent sealing: Leak-proof and long-lasting.
The 0.6m height square block mould is a standard size widely used in the lightweight concrete block and wall panel production industry. It is a container used for pouring concrete materials. This mould is suitable for small-scale production capacities and can be used for the production of aerated concrete, foamed concrete, polystyrene concrete, and lightweight ceramist concrete blocks.
Specifications
- Model: HDMJ-003
- Dimensions (L×W×H): 1.2×1.2×0.6m
- Capacity: 0.86m³

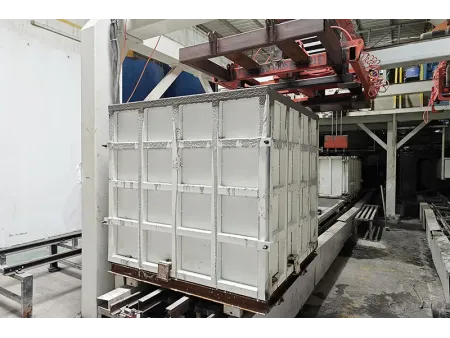

The new 1.2m height square block mould has twice the capacity of the standard square mould, offering lower costs and reduced mould quantity. The 1.2m height square block mould is suitable for medium to small-scale production capacities and can be used for the production of polystyrene foamed concrete blocks.
Specifications
- Model: HDMJ-004
- Dimensions (L×W×H): 1.2×1.2×1.2m
- Capacity: 1.72m³

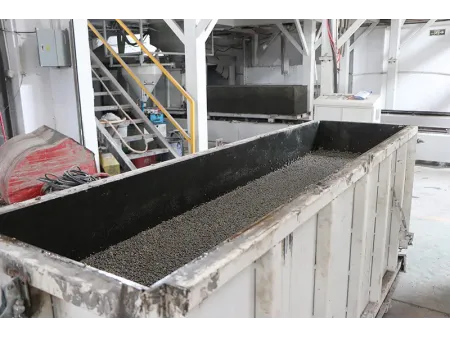

The 3.0m length rectangular block mould is suitable for medium to small-scale production capacities. It can be used for the production of non-autoclaved aerated concrete (NAAC), foamed concrete blocks, EPS foamed concrete blocks, and ceramist foamed concrete blocks and wall panels.
Specifications
- Model: HDMJ-002
- Dimensions (L×W×H): 3×0.6×0.9m
- Capacity: 1.7m³

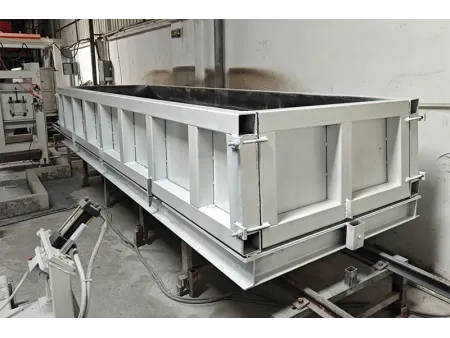

The 4.2m length rectangular block mould is suitable for large-scale production capacities. It can be used for the production of non-autoclaved aerated concrete (NAAC), foamed concrete blocks, EPS foamed concrete blocks, and ceramsite foamed concrete blocks and wall panels.
Specifications
- Model: HDMJ-005
- Dimensions (L×W×H): 4.2×1.2×0.6m
- Capacity: 3m³
