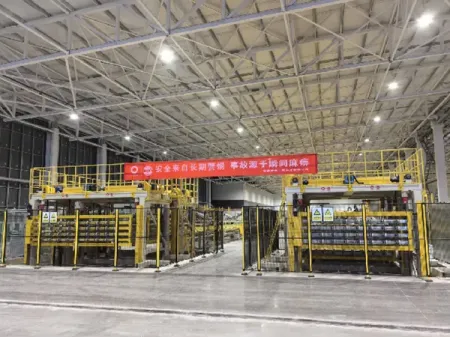

Glass Sheet Transport Shuttle System

Request a Quote

Website: http://glassmachine-en.com/2-2-glass-sheet-transport-shuttle-system.html

Multi-level glass storage and conveyor system for the continuous transport of glass sheets between two floors

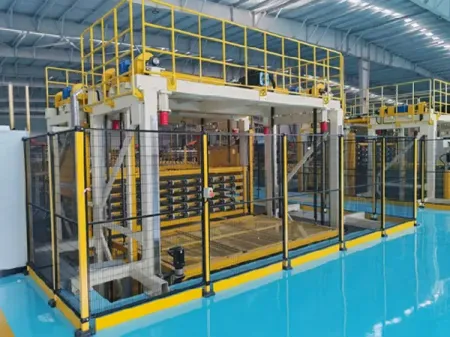

The glass sheet transport shuttle system is a multi-level storage and conveyor solution designed for the continuous vertical transfer of glass sheets between two floors. It consists of the second-floor storage conveyor, lifting conveyor, first-floor storage conveyor, and an automated electrical control system. By combining the large loading capacity of mobile glass storage racks with the flexibility of a rack shuttle system, it enables uninterrupted reloading and the efficient transfer of glass from the upper production line to the lower one, completing a fully automated flat glass production process. The result is a production environment that is both efficient and reliable, supporting stable operation even in demanding conditions.

Power: 29.1kW
Working pressure: 0.6MPa
Working accuracy: ±3mm
Max. lifting speed: 1.1m/s
Glass sheet size (W×L): (1000-1600)×(1417-3047)mm
Glass sheet thickness: 1.6-4mm
Max. load capacity: 1500kg

Features

Enhanced safety
Equipped with multiple safety protection mechanisms, including protective barriers, motor overload protection, and emergency braking devices. Real-time monitoring of glass positioning in both horizontal and vertical directions ensures the system remains safe for both operators and equipment.
User-friendly operation
The system incorporates a PackML-based process management control system, developed for solar glass shuttle conveyors. By optimizing workflow operations, it enhances efficiency and simplifies control.
Intelligent fault detection
A real-time belt monitoring system scans the status of each transmission layer. If a damaged belt is detected, the system automatically bypasses it and continues production using the next available layer, ensuring uninterrupted operation.
